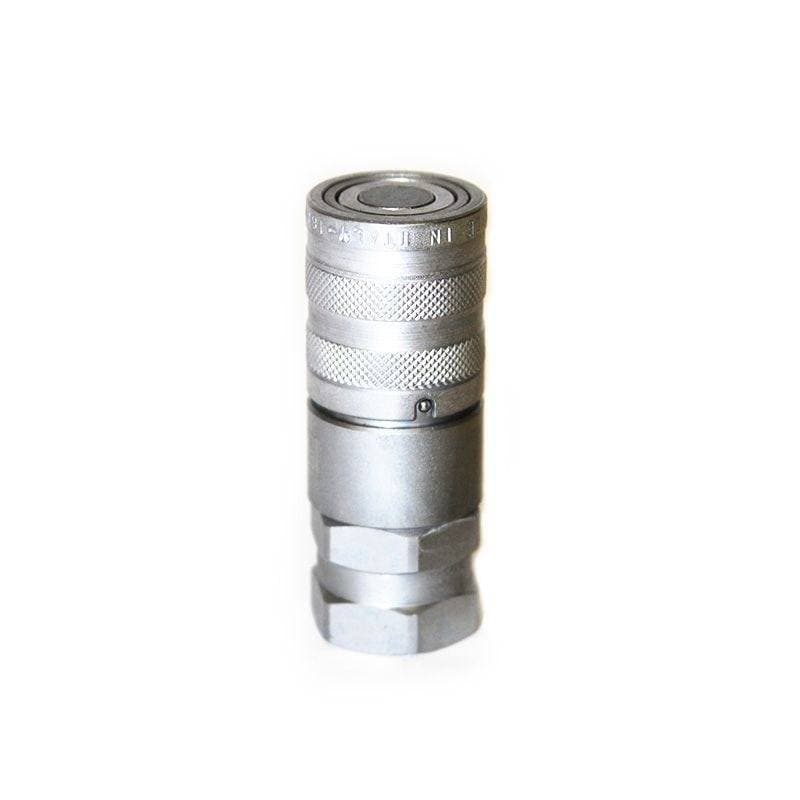

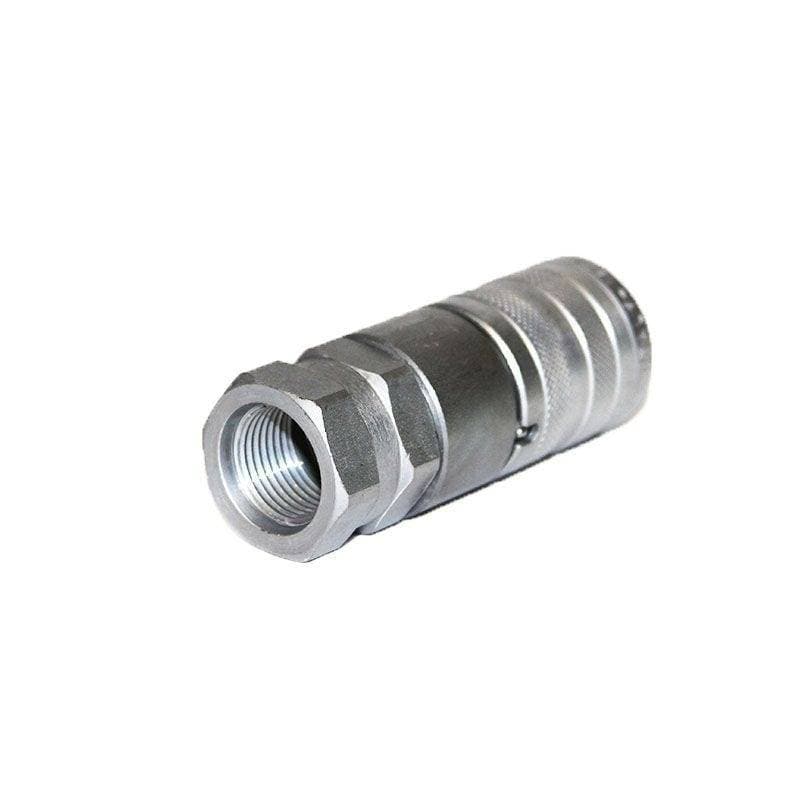

Flat Faced Female Coupler, 3/8, 7246788

Part #: 7246788 Brand: Bobcat

CA$54.81

Description

Bobcat Flat Faced Female Coupler, 3/8, 7246788 designed to fit Bobcat Mini Excavators and Attachments. See below for full compatibility details.

Bobcat flat faced couplers are engineered to have no leaks during connection and disconnection, as well as long-lasting polymer seals to sustain dirty and dusty conditions that are typical in agriculture and construction.

Mating ends of the newer couplers are compatible with older style couplers, allowing old and new couplers to connect with each other. However, an FFI coupler will not function in an FFH block and vice versa.

The best way to identify which version block/coupler is installed is by looking for the manufacturers stamp: previous blocks and couplers have an FFI or FI, newer have an FFH or FH. The stamp is visible on the outside sleeve of male couplers. The stamp is also on the side of the block. Blocks that are connected inside the lift arm must be removed to see the stamp.

  • No fluid spillage or air inclusion keeping equipment safe and clean
  • Avoid costly fluid spills
  • Internal components designed to maximize fluid flow with minimal change in pressure
  • Push to connect
  • Working pressure of 35 MPa
  • High grade carbon steel with zinc-nickel plating
  • ISO 16028 interchange
  • 3/8 inch body size
  • 3/4 inch UNF/ORB thread
  • 18 UNF FEMALE ORB
  • Manufactures stamp: FFH06 12SAE F

Confirm Part Fit

Type your equipment model number and filter parts based on if it fits.

Model Compatibility

Attachments: Chipper, Industrial Grapple Attachment, Planer, Snowblower, Stump Grinder, Trench Compactor, Vibratory Roller, Wheel Saw

Mini Excavators: 418, E10

Other Models: 418, 418, 418, 443, 443, 443, 443, 450, 450, 450, 450, 453, 453, 453, 453, Backhoe, Backhoe, Backhoe, Backhoe, Breaker, Breaker, Breaker, Breaker, Chipper, Chipper, Chipper, Disc Mulcher, Disc Mulcher, Disc Mulcher, Drum Mulcher, Drum Mulcher, Drum Mulcher, E08, E08, E08, E08, Flail Mower, Flail Mower, Flail Mower, Flail Mower, Forestry Cutter, Forestry Cutter, Forestry Cutter, Forestry Cutter, Grapple, Grapple, Grapple, Hand Held Tool Control Box, Hand Held Tool Control Box, Hand Held Tool Control Box, Hand Held Tool Control Box, Landplane, Landplane, Landplane, Planer, Planer, Planer, Rotary Cutter, Rotary Cutter, Rotary Cutter, Rotary Cutter, Sand Cleaner, Sand Cleaner, Sand Cleaner, Sand Cleaner, Snowblower, Snowblower, Snowblower, Stump Grinder, Stump Grinder, Stump Grinder, Sweeper, Sweeper, Sweeper, Sweeper, Trench Compactor, Trench Compactor, Trench Compactor, Trencher, Trencher, Trencher, Trencher, Vibratory Roller, Vibratory Roller, Vibratory Roller, Wheel Saw, Wheel Saw, Wheel Saw
