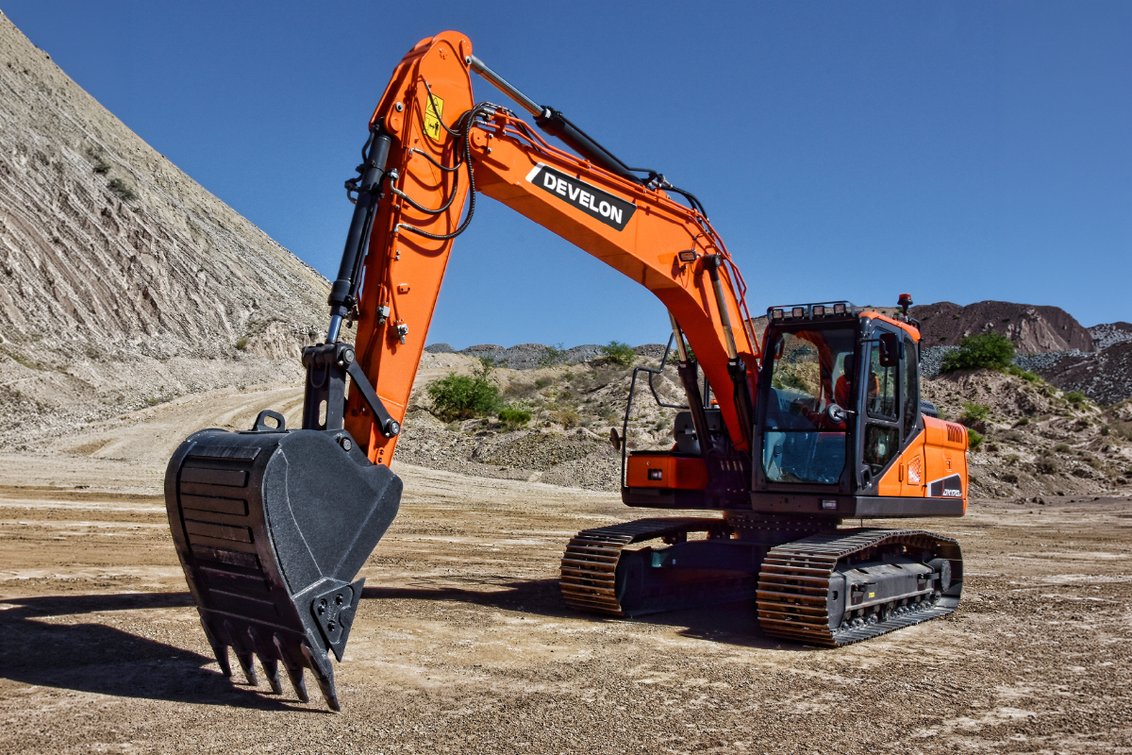

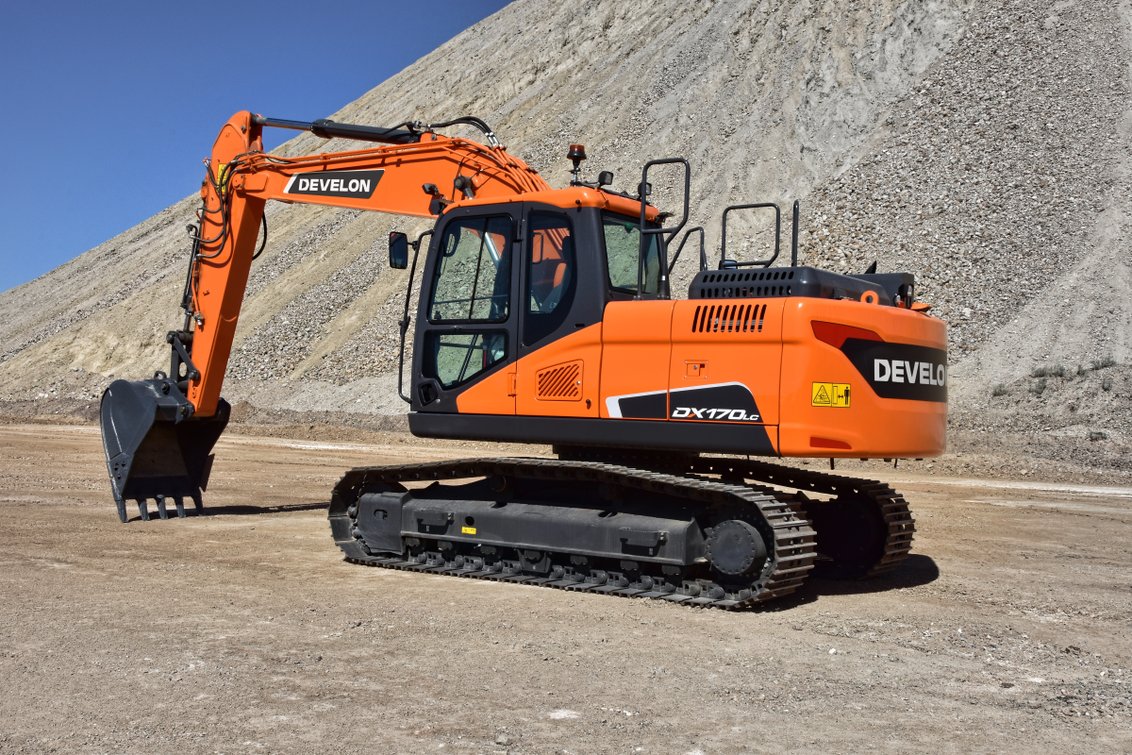

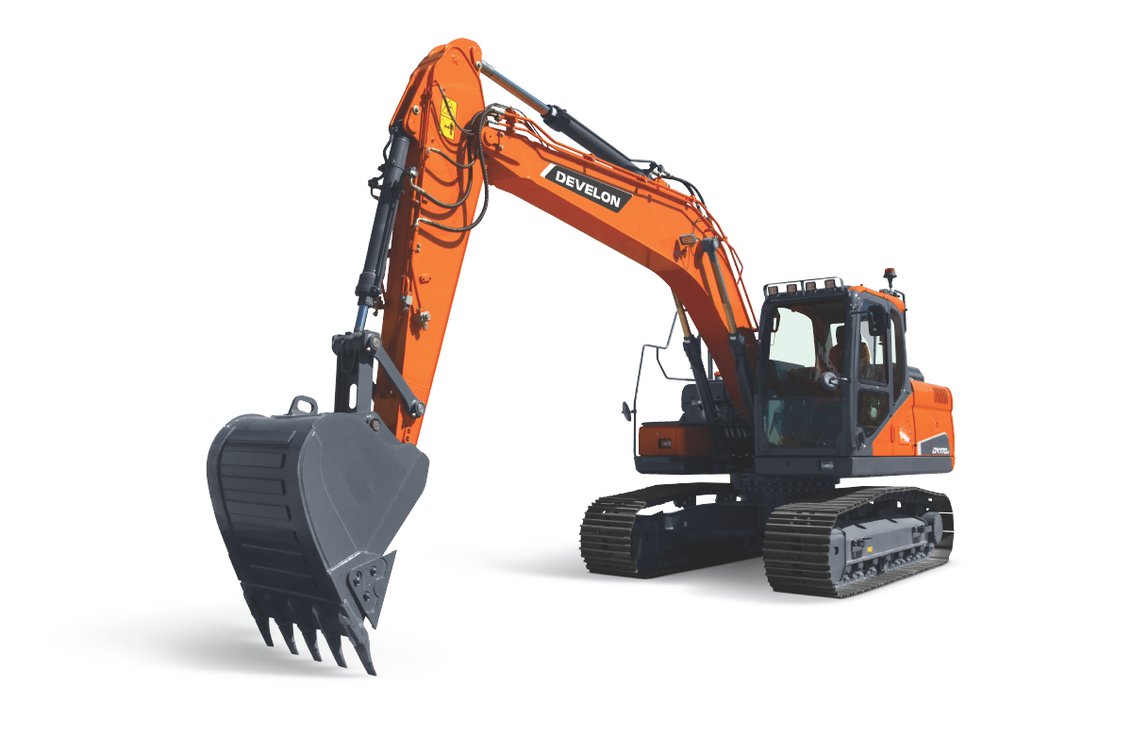

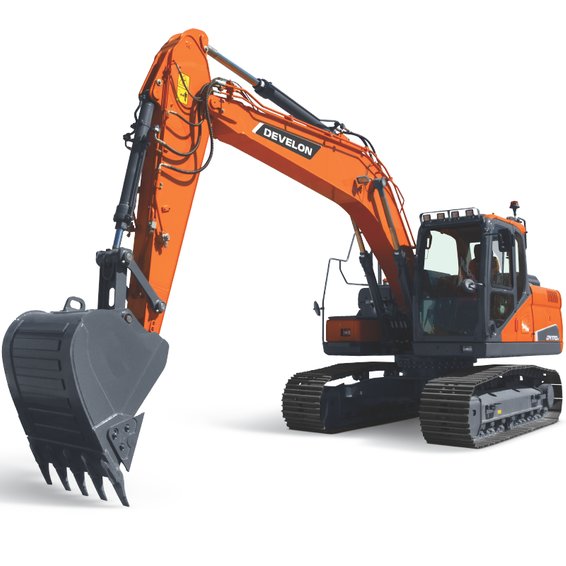

DEVELON DX170LC-7 Crawler Excavator
Take total command of your mid-sized earthmoving operations with the DEVELON DX170LC-7. Powered by a highly efficient 135 horsepower DEVELON engine, this crawler excavator utilizes its 38,360-pound operating weight to stay firmly planted during aggressive lifting and loading cycles. Built to minimize repositioning on sprawling sites, it boasts an impressive 350-inch ground-level reach and a 243-inch maximum digging depth. Whether you are trenching for utilities or tackling commercial site prep, this machine delivers the exact physical capabilities needed to keep your crew ahead of schedule.
Maximize your daily dirt-moving potential with superior hydraulic performance. Generating a robust 80 gpm maximum main pump flow, the DX170LC-7 guarantees rapid boom speeds and a relentless 27,778 pounds of bucket breakout force when tearing through compacted materials. Operator endurance is also prioritized, thanks to a standard ROPS-certified cab outfitted with premier climate control and advanced vibration damping. By reducing fatigue and enhancing precision control, your operators can maintain peak productivity from morning startup to the end of the shift.
Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 38360.0 lbs |
| Tail Swing Radius | 99.6 in |
| Overall Width | 102.0 in |
| Overall Height | 117.5 in |
| Overall Length | 337.4 in |
| Horsepower | 135.0 hp |
| Engine Make & Model | DEVELON 034 |
| Emissions Tier | Tier 4 Final (T4F) |
| Fuel Tank Capacity | 76.0 gal |
| Arm Length (standard) | 98.4 in |
| Max Digging Depth | 242.9 in |
| Max Reach at Ground Level | 349.5 in |
| Max Dumping Height | 252.8 in |
| Bucket Breakout Force | 27778.2 lbf |
| Stick Digging Force | 18518.8 lbs |
| Max Main Pump Flow | 80.4 gpm (2 x 40.2 gpm) gal/min |
| Track Shoe Width | 23.6 in |
| Ground Pressure | 5.8 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Huge rebates on Select DEVELON Excavators as well as 0% Financing for 48 months. Upgrade to a Crawler Excavator today and lock in massive savings on your next machine purchase. Click here for qualifying models and details.
0% Financing for up to 48 months on ALL new DEVELON Excavators. Choose from Crawler Excavators, Mini Excavators, Wheeled Excavators and more. Click here for details.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
