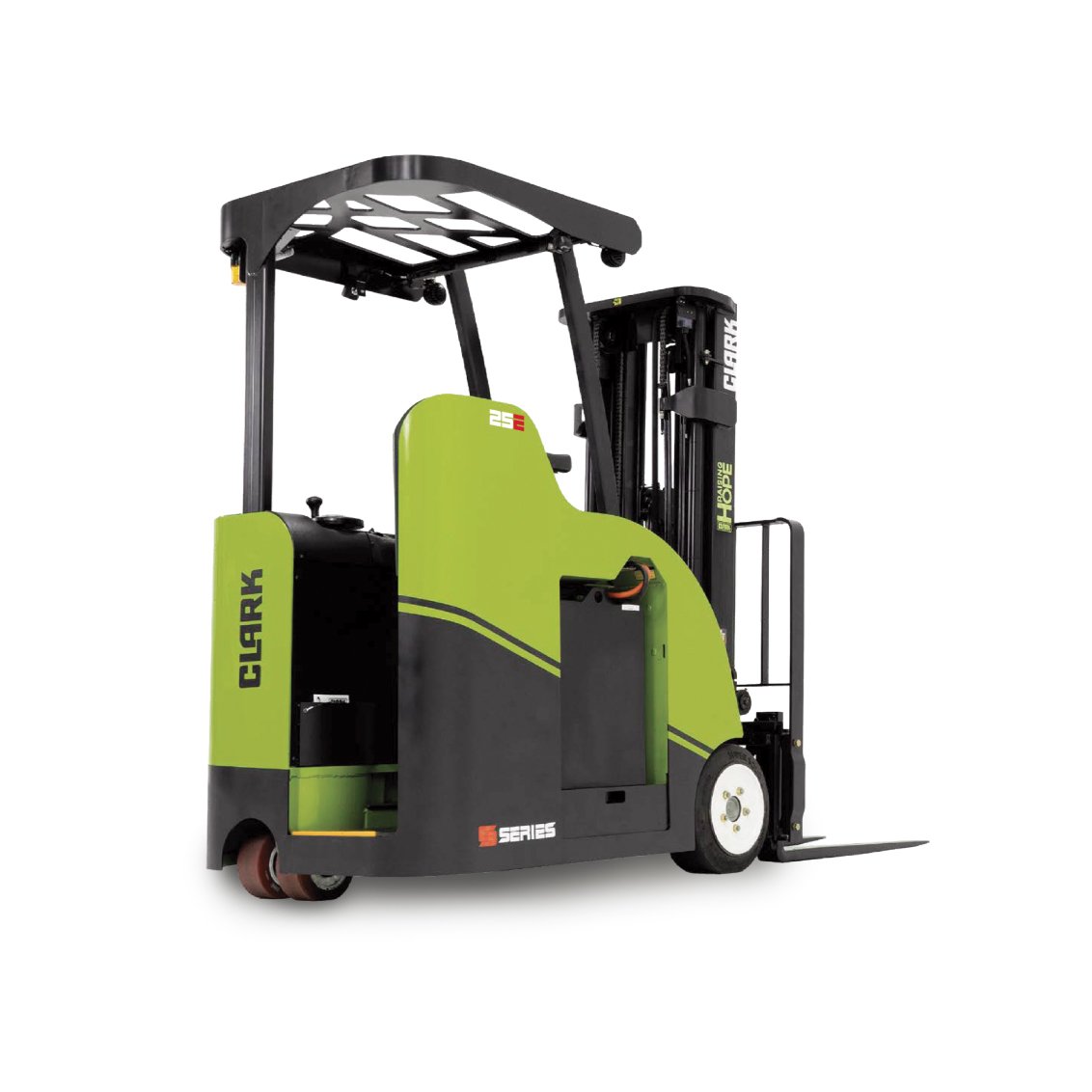

Clark SES25 Electric Stand-Up Cushion Forklift
Conquer your heaviest narrow-aisle loads with the flagship Clark SES25, an exceptional 5,000-pound capacity electric stand-up forklift. Built with a widened front track for rock-solid stability, this high-performance warehouse specialist relies on an advanced 100% AC system and low-maintenance electric brakes to sustain maximum throughput.

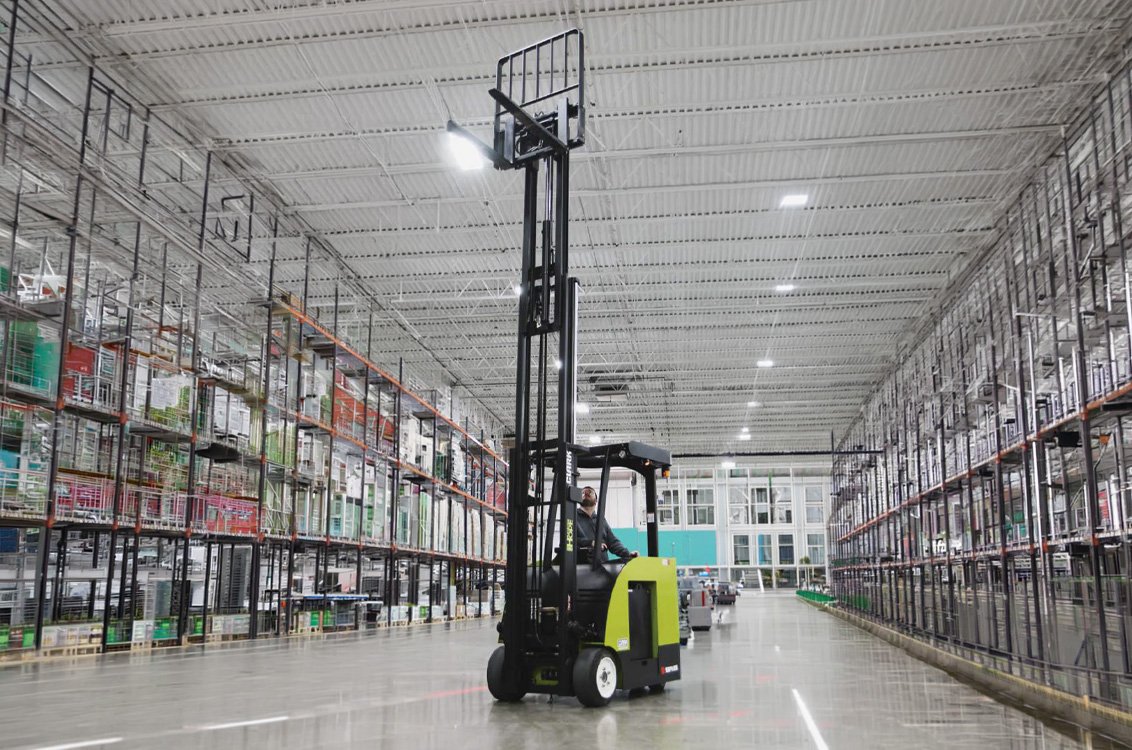

The SES25 features a suspended floating floorboard to reduce dock-shock fatigue, keeping operators sharp and focused across grueling shifts. When paired with the high-reach Quad-stage mast, it hoists loads up to 276.5 inches, relying on a rigid nested I-beam design and an 8-roller carriage to suppress load wobble at full height. Complete with automated curve control and a 5-inch color Smart Dash, it provides ultimate precision and confidence in high-density spaces.
Specifications
| Lift Capacity | 5000.0 lbs |
| Up to Max Lift Height | 276.5 in |
| Free Lift | 71.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Triple Stage (Optional Quad Stage) |
| Steering Type | Advanced Electric Steering |
| Operator Protection | Stand Up Overhead Guard |
| Operating Weight | 10260.0 lbs |
| Overall Width | 43.5 in |
| Overall Length (to Fork Face) | 73.4 in |
| Overhead Guard Height | 86.8 in |
| Turning Radius | 60.6 in |
| Max Travel Speed | 7.3 mph |
| Max Gradeability | 15.0 % |
| Brake Type | Maintenance-Free Electric |
| Max Lift Speed | 110.2 fpm |
| Front Tire Size | 18 x 9 x 12.12 |
| Rear Tire Size | 9 x 5 |
| Tire Type | Cushion |
| Power Mode | Battery (Lead-Acid / Li-ION) |
| Voltage | 36 V / 48 V |
