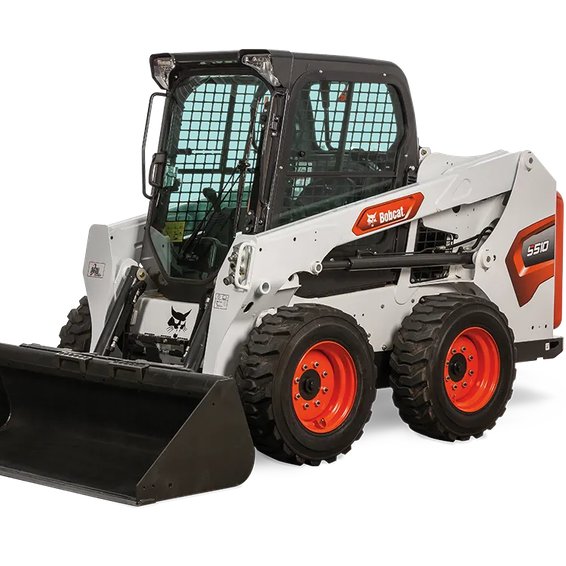

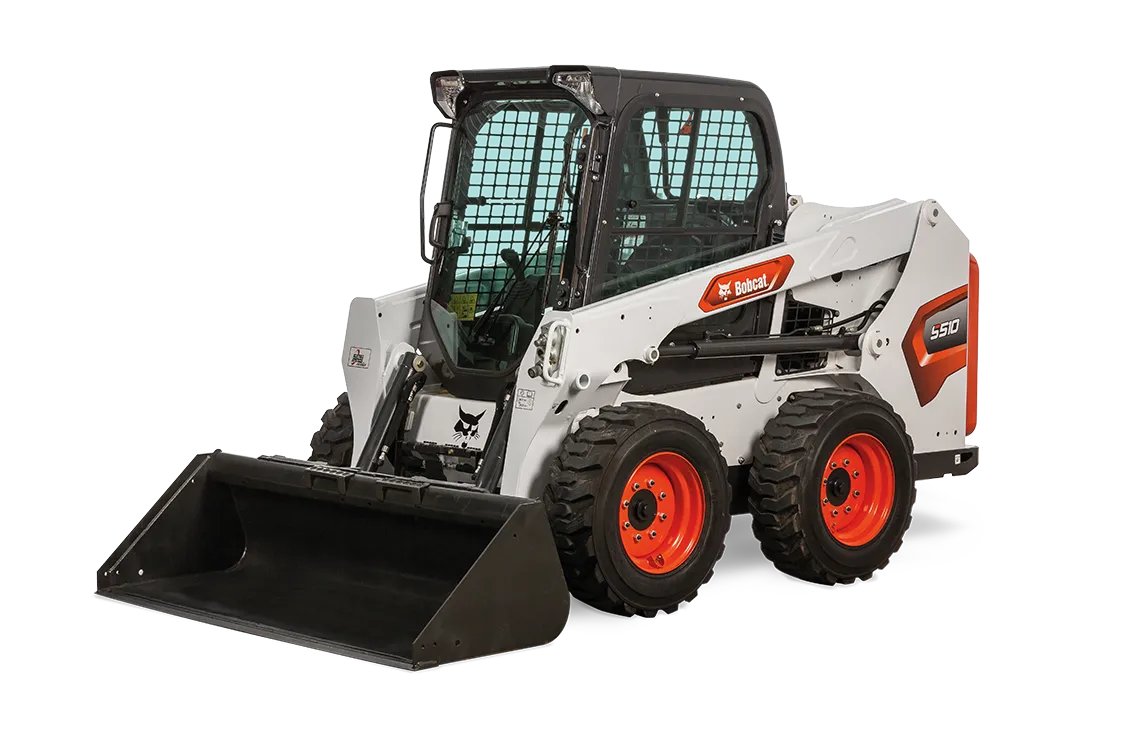

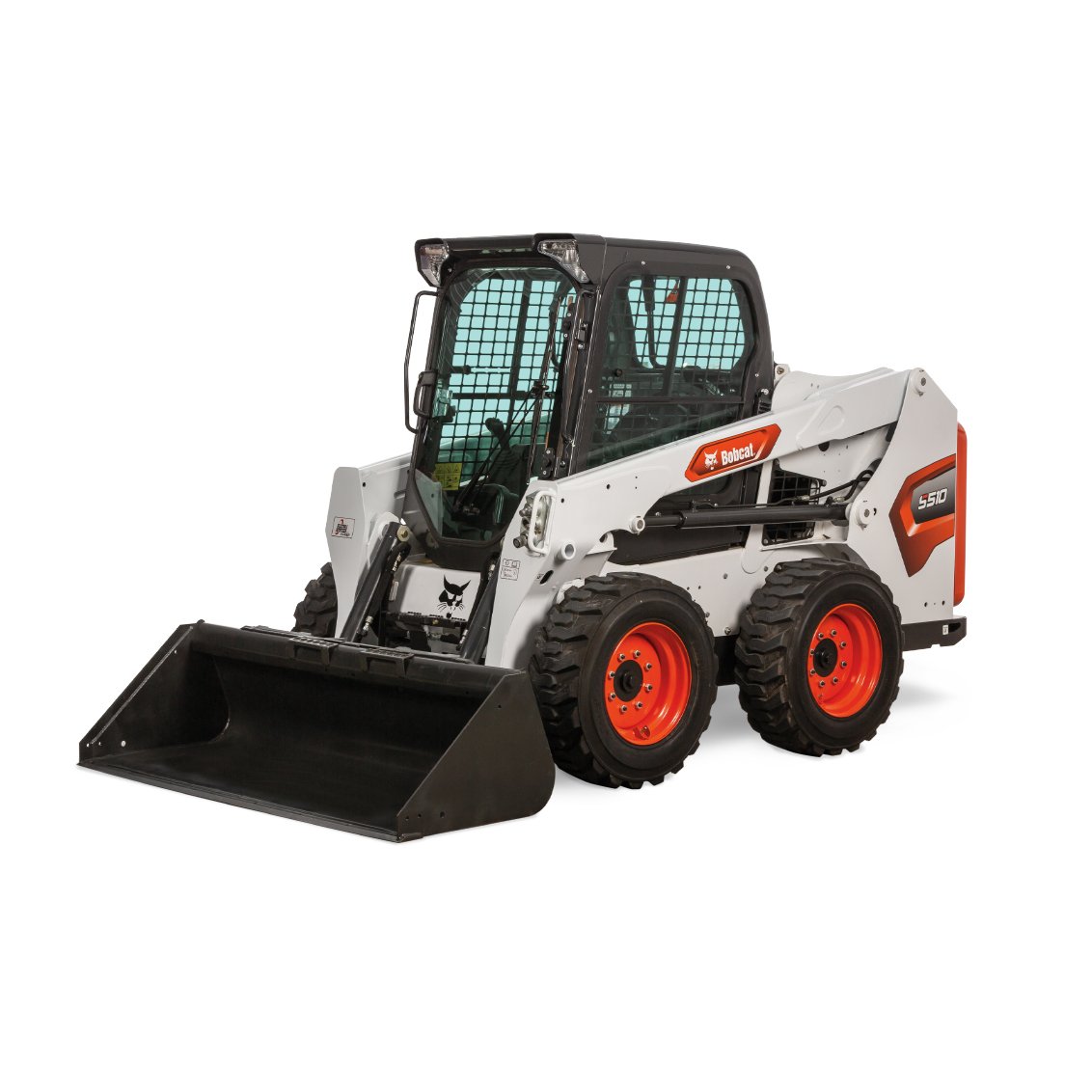

Bobcat S510 Skid Steer Loader
The Bobcat S510 helps you push through tough digging and lifting in tight spaces with the numbers that matter. It delivers a ROC of 1,876 lb for confident handling of pallets and material, a standard auxiliary hydraulic flow of 17.1 gpm for strong attachment performance, and a 114.5 in hinge-pin height that reaches common truck and hopper targets.
Pair it with buckets, forks, brooms, or grapples to move more in fewer passes while its compact size keeps transport simple between jobs. Perfect for construction or landscaping projects, you can take your productivity to the next level with the S510.
Specifications
| Operator Protection | ROPS |
| Control Type | Standard Dual Levers / Optional Joystick |
| Operating Weight | 6213.0 lbs |
| Length with Bucket | 133.0 in |
| Width with Bucket | 68.0 in |
| Height to Top of Cab | 73.0 in |
| Engine Manufacturer | Kubota |
| Engine Model | V2403-MDI-E3B |
| Gross Horsepower | 55.0 hp |
| Emissions Tier | Tier 4 Interim |
| Fuel Tank Capacity | 24.8 gal |
| Rated Operating Capacity (ROC) | 1876.0 lbs |
| Tipping Load | 3560.0 lbs |
| Lift Path | Radius |
| Height to Hinge Pin | 114.0 in |
| Bucket Breakout Force | 3276.0 lbs |
| Standard Aux Flow | 17.1 gpm |
| Travel Speed - Low | 7.6 mph |
| Travel Speed - High | 11.0 mph |
| Transmission | Hydrostatic |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Power up your productivity... and your savings. Get 0% Financing for up to 36 months or up to $6,800 CAD cash rebates in lieu of financing.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
