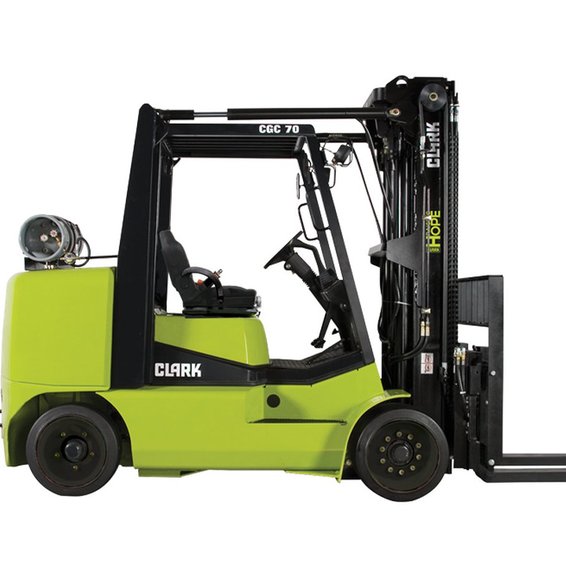

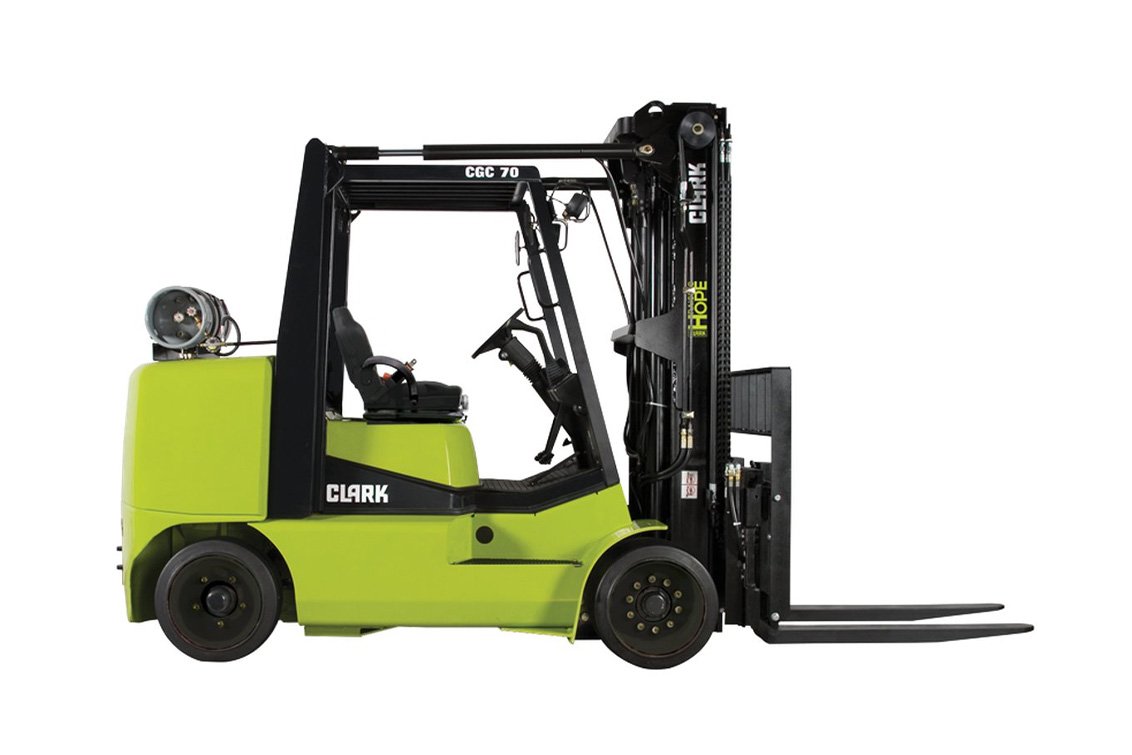

Clark CGC70 IC Cushion Forklift
The CLARK CGC70 is a high-capacity IC cushion forklift built for heavy loads on smooth indoor floors, such as manufacturing cells, die/mold moves, paper & packaging, freight terminals, and tight dock work where a yard truck won’t fit.
It’s rated 15,500 lb at a 24-in load centre, turns in 107-in outside radius for a compact footprint, and comes with standard 2-stage mast with max fork heights around 159-in, with other upright options available.
This forklift incorporates Clark's history in ergonomics, power, safety, durability, and performance to offer a machine that is high performance and offers great value to your business. Contact your local Williams Machinery dealership to learn more or to demo one today!
Specifications
| Brakes | Power Assist Disc |
| Power Mode | LPG |
| Engine Manufacturer | GM |
| Cylinders/Displacement | 6/262 |
| Engine | 4.3L V6 |
| Horsepower | 93.0 hp |
| Torque @ RPM | 235.0 ft-lb |
| Standard Mast: Free Lift | 8.5 in |
| Lowered Overall Height | 99.0 in |
| Mast | 2-Stage |
| Maximum Fork Height | 117.0 in |
| Steering | Hydrostatic |
| Transmission | Powershift |
| Number of Speeds | 2.0 |
| Overall Width | 58.8 in |
| Wheelbase | 75.0 in |
| Overall Length | 115.1 in |
| Tread (Front/Rear) | 44.8/42.0 |
| Center of Wheelbase | 6.1 in |
| Fork Size (T x W x L) | 2.5 X 6 X 48 in |
| Front Overhang | 18.9 in |
| Height to Top Overhead Guard | 91.0 in |
| Maximum Fork Spread | 55.0 in |
| Minimum Aisle Right Ang Stack | 126.2 in |
| Steer Tire Size | 22 x 8 x 16 |
| Drive Tire Size | 22 x 14 x 16 |
| Lift Capacity | 15500.0 lbs |
| Gradeability Loaded @ 1 mph | 25.2 percent |
| Maximum Drawbar Pull | 9420.0 lbs |
| Travel Speed Loaded | 10.2 mph |
| Load Center | 24.0 in |
| Max Fork Height Rated Capacity | 159.0 in |
