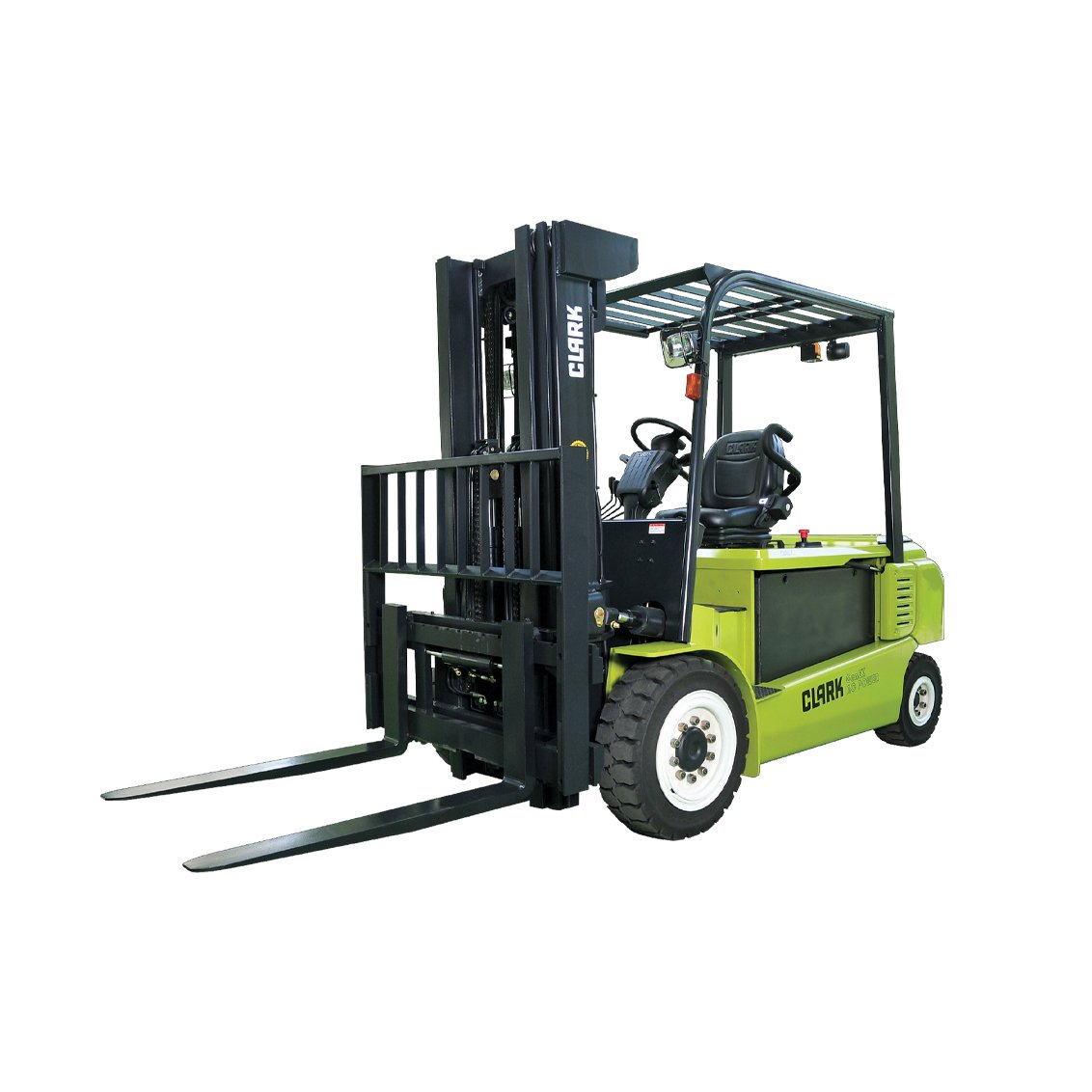

Clark GEX45 Electric Rider Pneumatic Forklift
Step up to even greater material handling capabilities with the Clark GEX45 heavy-duty electric forklift. Engineered with a 9,000-pound lift capacity and a wider, exceptionally stable tracking width, this 80-volt powerhouse is purpose-built to conquer punishing outdoor yard applications while maintaining the clean, quiet efficiency needed for large-scale indoor warehousing.
The GEX45 utilizes dual independent front-drive AC motors and an impressive 31% gradeability to match the acceleration and raw productivity of traditional internal combustion trucks. Built with rugged solid pneumatic tires, a heavily lowered center of gravity, and enclosed oil-cooled wet disc brakes, it delivers smooth, confident control on uneven terrain. When paired with the premium Triple Stage Upright (TSU), the GEX45 elevates heavy loads up to 275 inches, employing silent staging and hydraulic cushioning valves to protect your most fragile inventory.
Specifications
| Lift Capacity | 9000.0 lbs |
| Up to Max Lift Height | 275.0 in |
| Free Lift | 74.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard (Triple Stage & Hi-Lo Optional) |
| Steering Type | Hydrostatic |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 16535.0 lbs |
| Overall Width | 58.7 in |
| Overall Length (to Fork Face) | 116.7 in |
| Overhead Guard Height | 90.9 in |
| Turning Radius | 105.3 in |
| Max Travel Speed | 11.8 mph |
| Max Gradeability | 31.0 % |
| Brake Type | Wet Disc |
| Max Lift Speed | 93 fpm |
| Front Tire Size | 12.5 - 15 in |
| Rear Tire Size | 21 x 8 - 9 in |
| Tire Type | Solid Pneumatic |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 80 V |
