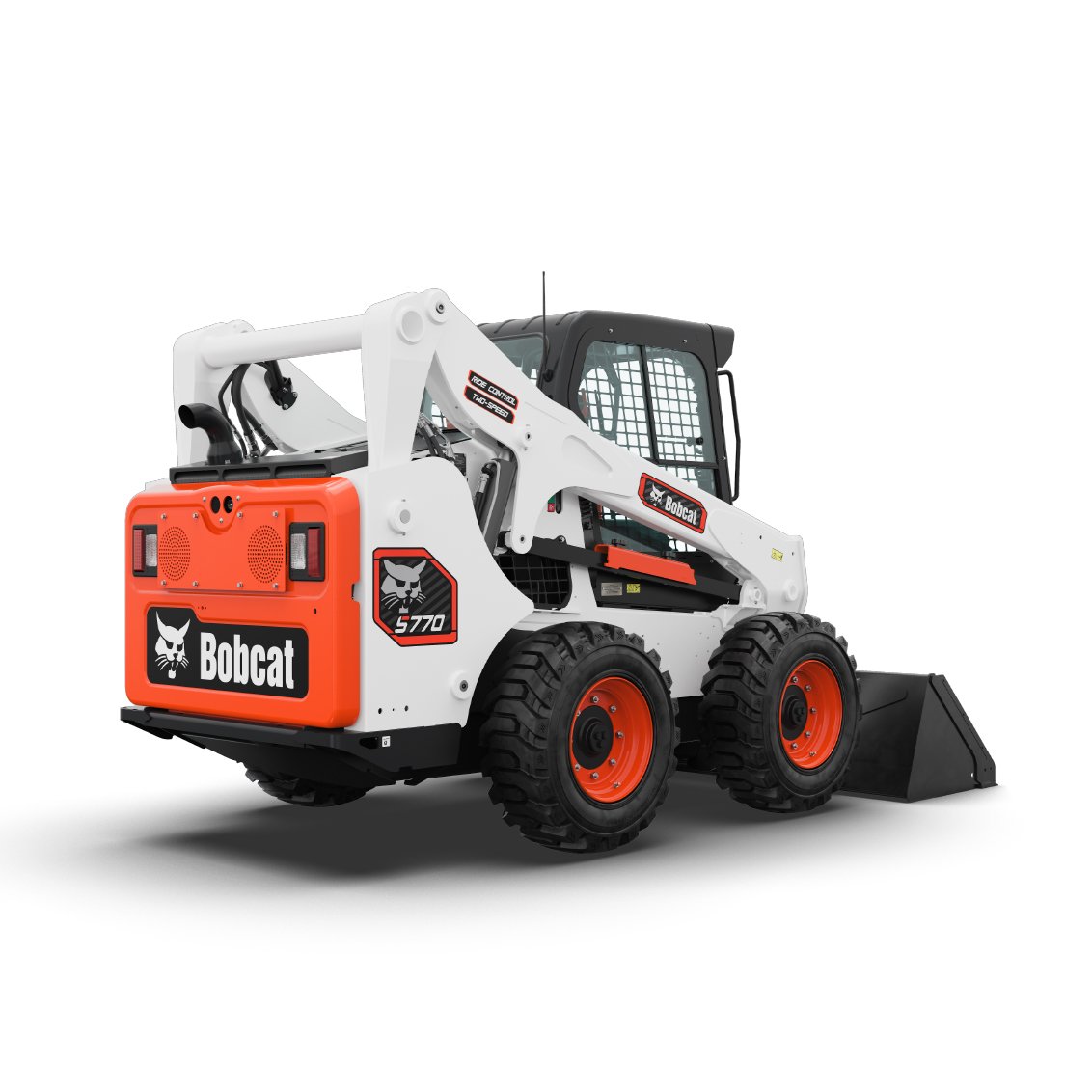

Bobcat S770 Skid Steer loader
Built for tough jobs, the S770 skid steer loader is perfect for digging, loading, pushing, and grading. Experience no loss in strength or power with this compact machine. Being a Tier 4 model, it has a higher reach than other skid steers. Work with greater efficiency and comfort thanks to the S770's uptime protection and ergonomic features.
Specifications
| Bucket Width | 74.0 in |
| Engine Manufacturer | Kubota |
| Engine Model | V3800 Turbo |
| Emissions Tier | Tier 4 Interim |
| Power Mode | Diesel |
| Horsepower | 92.0 hp |
| Fuel Tank Capacity | 27.2 gal |
| Hydraulic Pump Flow (Hi-Flow) | 36.6 gal/min |
| Hydraulic Pump Flow (Standard) | 23.0 gal/min |
| Relief Pressure (Std Flow) | 3500.0 psi |
| Operator Protection | ROPS |
| Number of Speeds | Variable |
| Transmission | Hydrostatic |
| Travel Speed | 7.1 mph |
| Height to Hinge Pin | 132.0 in |
| Length Less Bucket | 114.3 in |
| Length With Bucket (Dig/Carry) | 141.6 in |
| Operating Weight | 9175.0 lbs |
| Wheelbase | 48.3 in |
| Width Less Bucket | 72.1 in |
| Height to Top of Cab | 81.3 in |
| Operating Capacity | 3350.0 lbs |
| Tipping Load (SAE) | 6700.0 lbs |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Buy a new Bobcat compact loader for your jobsite and get 0% financing for up to 36 months and up to $2,000 CAD cash rebates in lieu of financing on skid steer loaders.
Specifications and images may vary in accuracy.
