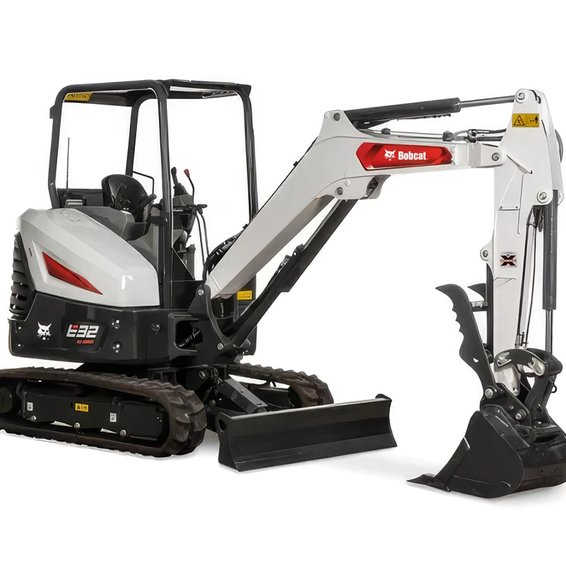

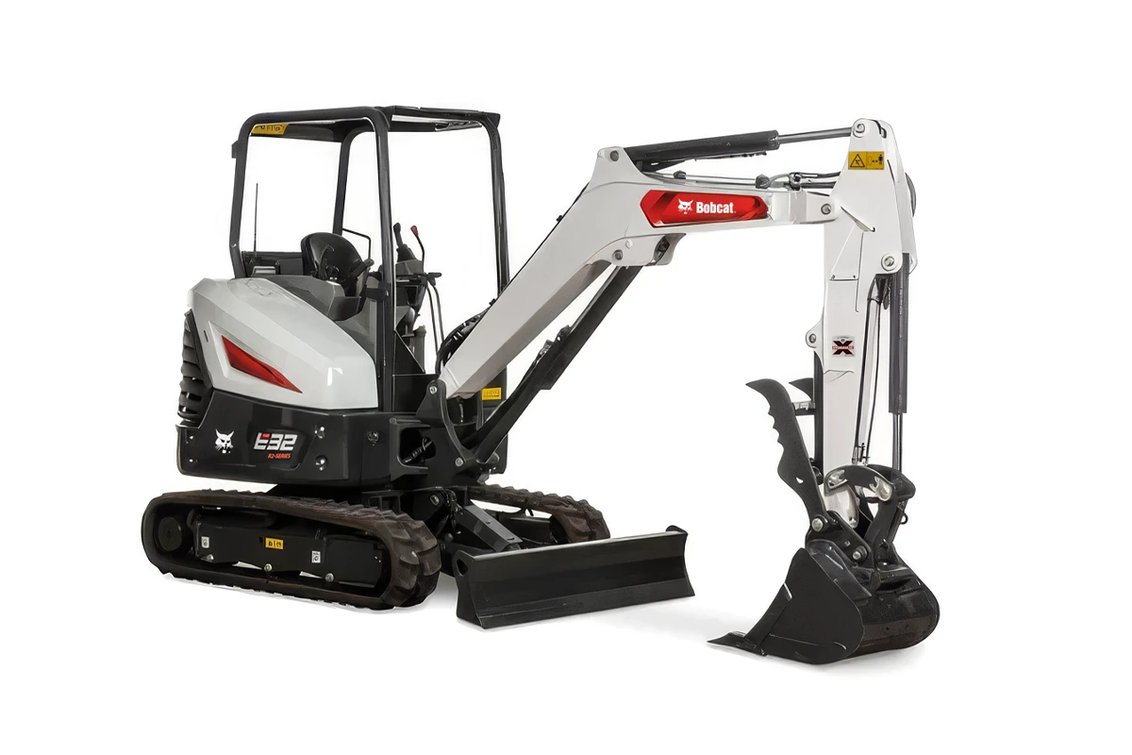

Bobcat E32 Compact Excavator
The Bobcat E32 is an R-Series compact excavator. With a narrower profile than the E35 and a conventional tail sping design, this machine can fit into narrow doors and gates while maintaining a larger capacity than similar sized machines. Available with long arm options or a clamp ready extendable option you can boost your range as needed.
Specifications
| Bucket Digging Force-Standard | 6968.0 lbf |
| Swing Angle - Left | 75.0 degrees |
| Boom Type | 1-Piece |
| Swing Angle - Right | 55.0 degrees |
| Maximum Digging Depth | 123.0 in |
| Operating Weight | 7915.0 lb |
| Engine | D1803-M-DI |
| Engine Manufacturer | Kubota |
| Power Mode | Diesel |
| Emissions Tier | Tier 4 Interim |
| Rated RPM | 2400.0 rpm |
| Horsepower | 33.3 hp |
| Fuel Tank Capacity | 14.0 gal |
| Hydraulic Pumps - Type | Piston |
| Auxiliary Circuit Flow | 16.9 gal/min |
| Main Relief Pressure | 2987.0 psi |
| Operator Protection | ROPS |
| Track Shoe Type | Rubber |
| Ground Pressure | 4.3 psi |
| Track Length | 77.0 in |
| Track Shoe Width | 12.6 in |
| Maximum Dumping Height | 132.0 in |
| Maximum Reach at Ground Level | 196.0 in |
| Overall Height | 96.0 in |
| Overall Length | 184.0 in |
| Overall Width | 60.0 in |
| Travel Speed - Low | 1.6 mph |
| Travel Speed - High | 2.9 mph |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Buy one today and get 0% financing for up to 48 months, or cash rebates up to $9,000 CAD on select compact excavators
Specifications and images may vary in accuracy.
