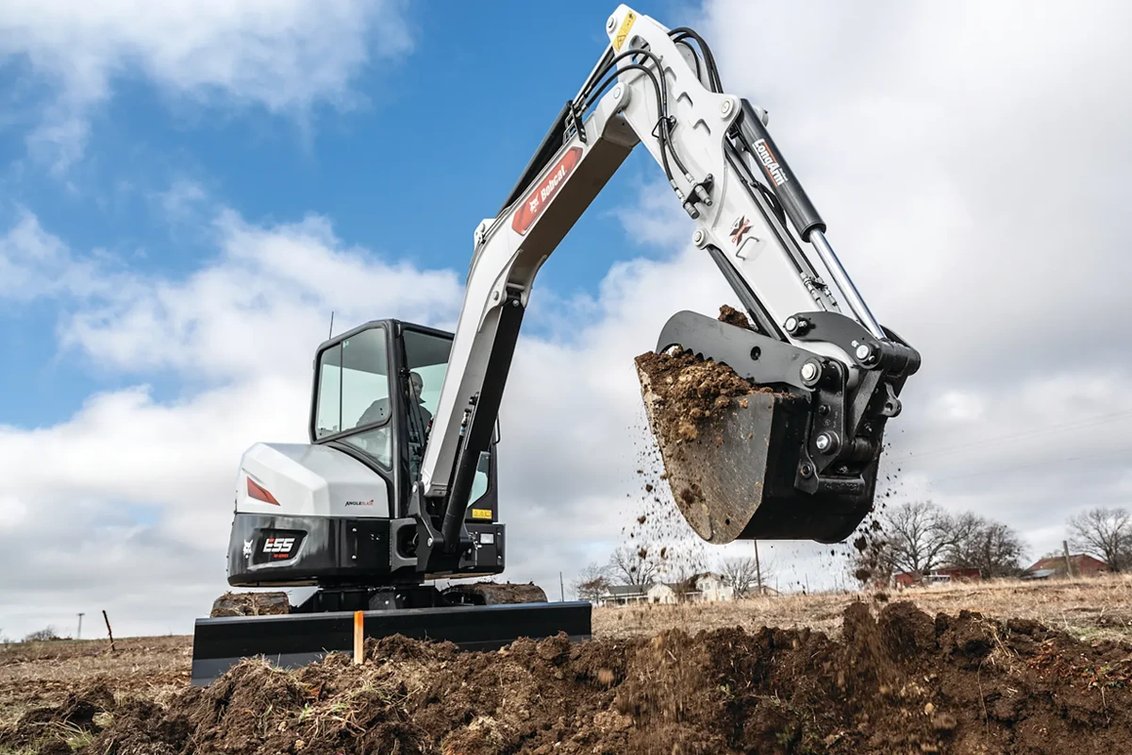

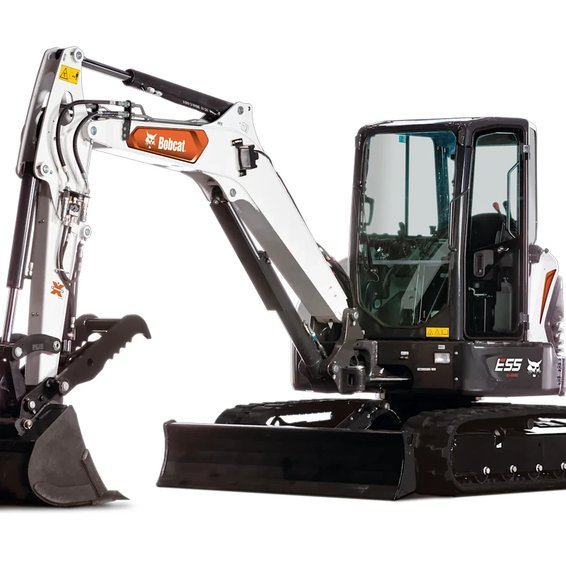

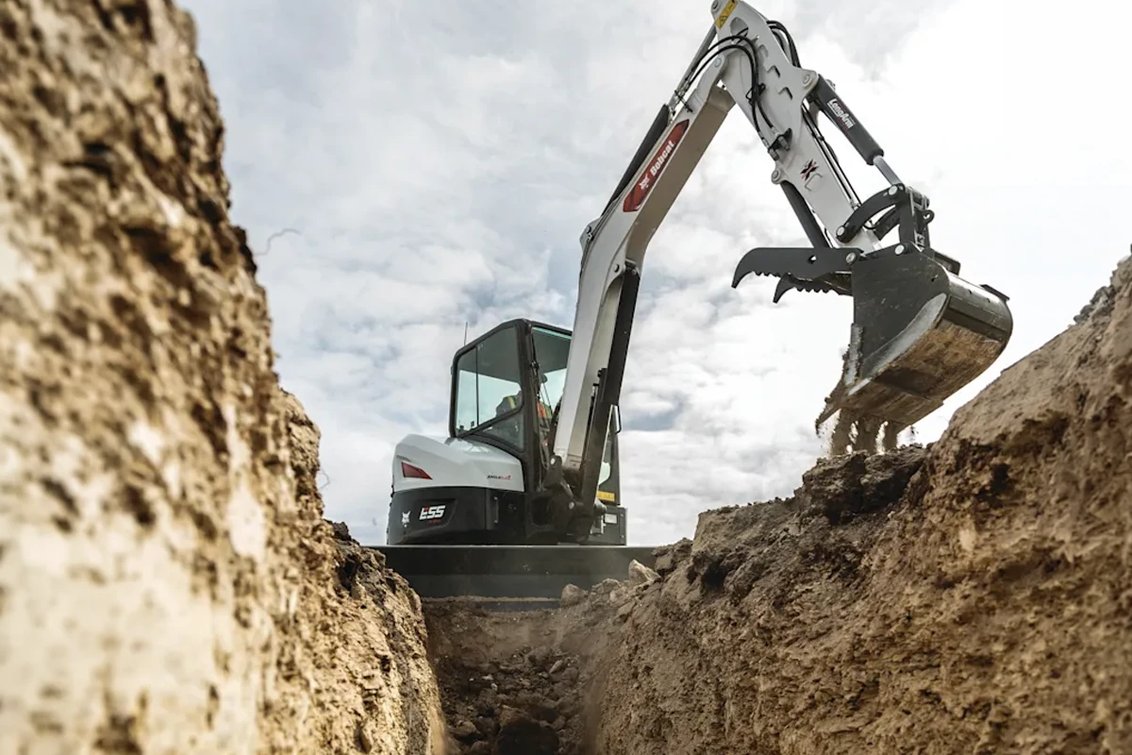

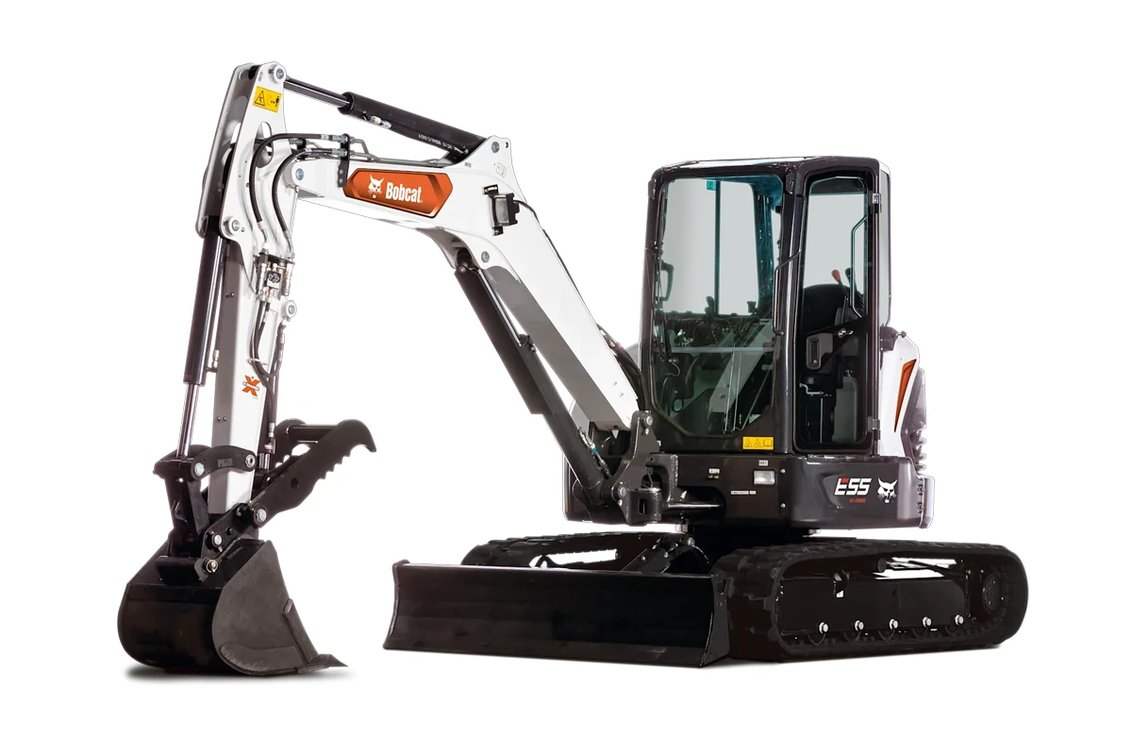

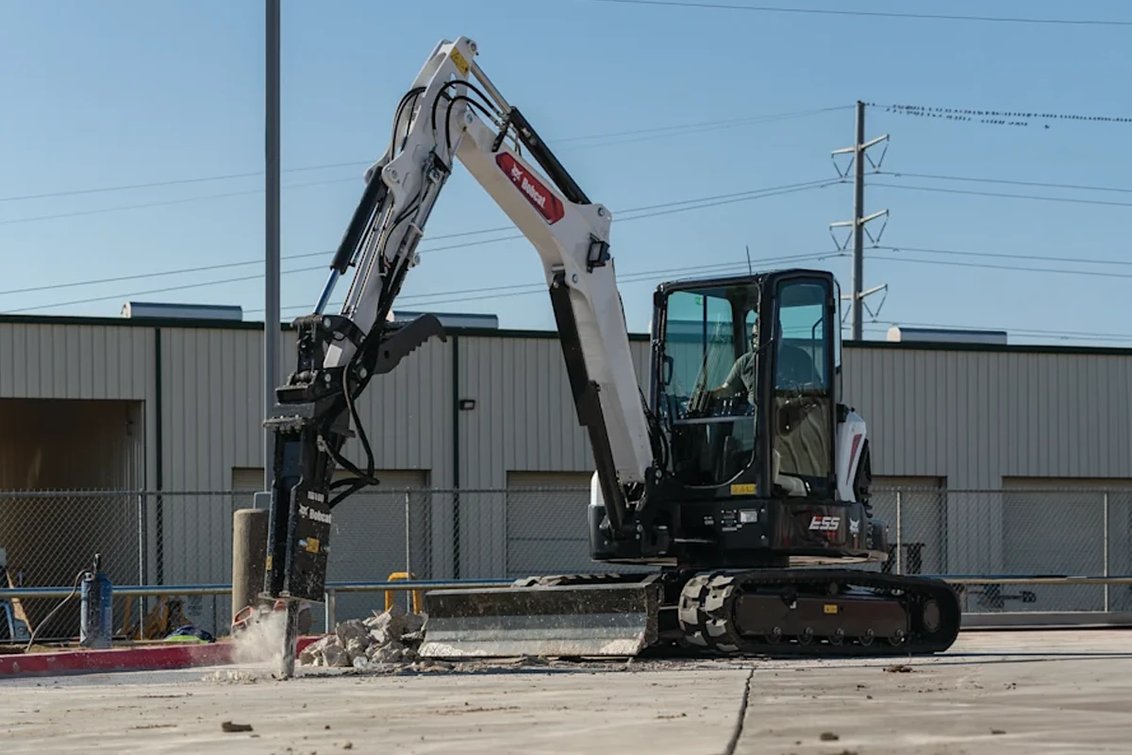

Bobcat E55 Mini Excavator
The Bobcat E55 compact excavator delivers heavy-duty commercial power within a highly maneuverable 5-ton footprint. Engineered with a Minimal Tail Swing design, featuring less than an inch of rear overhang, this machine allows you to work confidently in confined areas without sacrificing leverage.
Powered by a turbocharged 49.7 HP non-DPF engine and boasting a massive 9,511 lbf of bucket breakout force, the E55 effortlessly powers through dense terrain. Featuring a standard dual-flange track roller system, it provides exceptional over-the-side lifting capacity for moving heavy culverts and materials on demanding job sites.
Specifications
| Operator Protection | TOPS / ROPS / FOPS |
| Tail Swing Type | Minimal Tail Swing |
| Operating Weight | 11357.0 lb |
| Overall Width | 77.2 in |
| Overall Height | 100.2 in |
| Overall Length | 208.7 in |
| Horsepower | 49.7 hp |
| Engine Manufacturer | Bobcat |
| Emissions Tier | Tier 4 / Non-DPF |
| Fuel Tank Capacity | 19.0 gal |
| Maximum Digging Depth | 136.8 in |
| Maximum Reach at Ground Level | 232.8 in |
| Maximum Dumping Height | 156.0 in |
| Bucket Breakout Force | 9511.0 lbf |
| Stick Digging Force - Standard | 6987.0 lbf |
| Blade Size (H x W) | 15.6 x 77.2 in |
| Arm Configuration | Standard |
| Auxiliary Circuit Flow | 20.0 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 4.6 psi |
