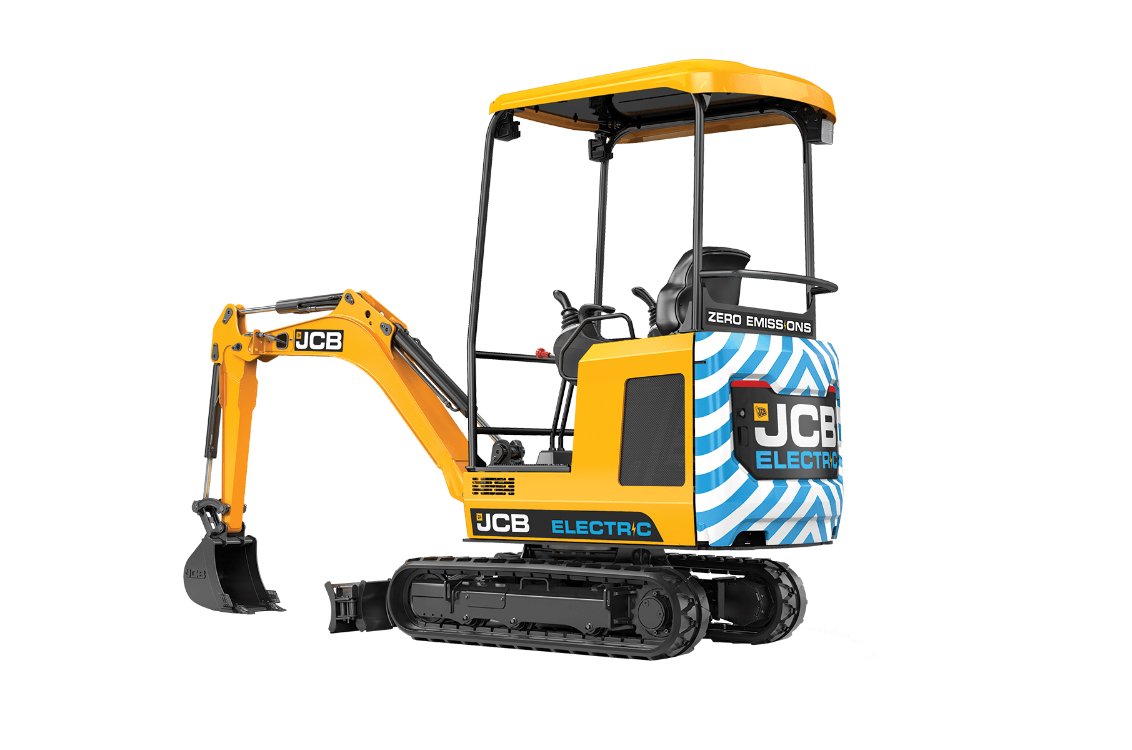

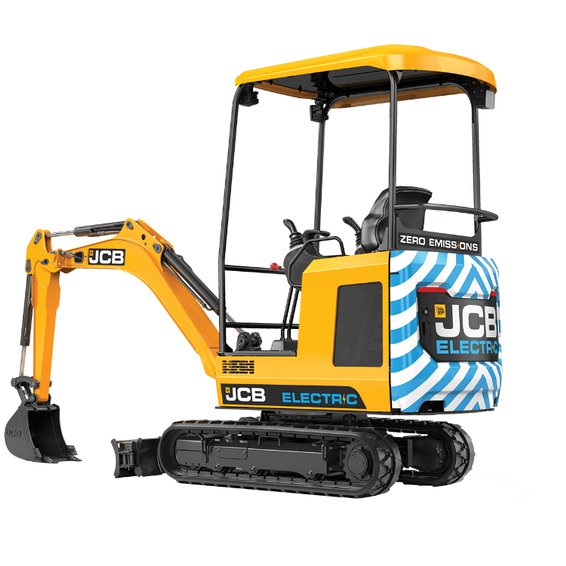

JCB 19C-1E Electric Mini Excavator

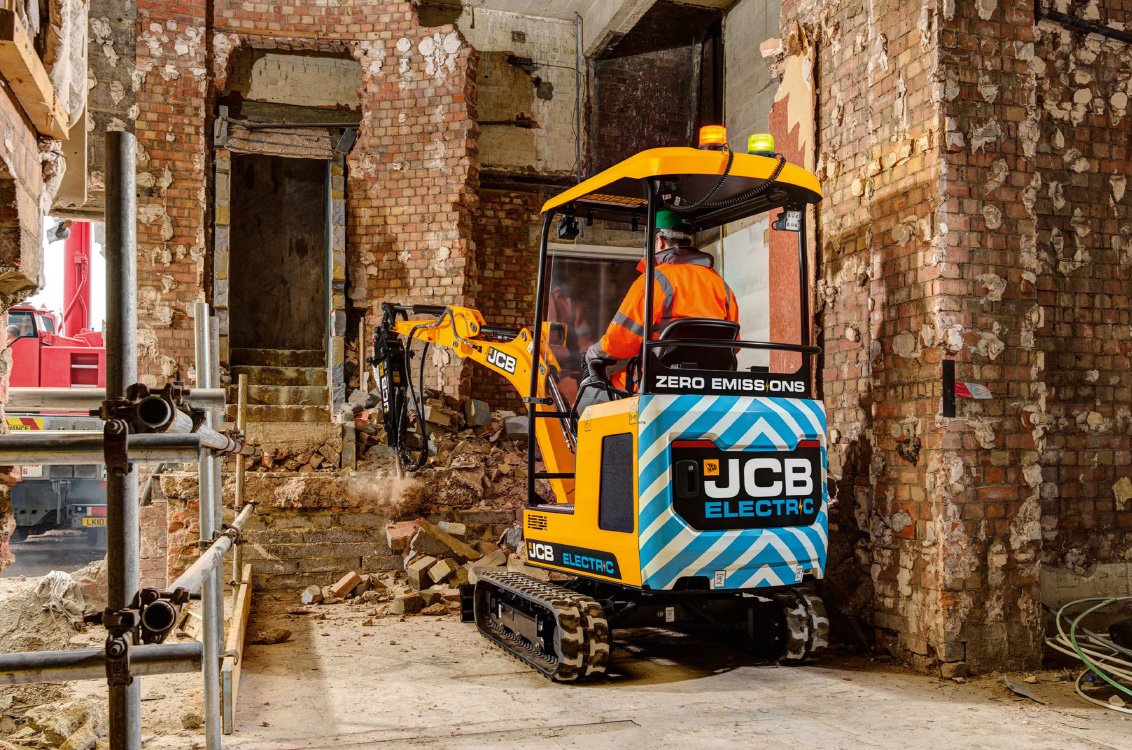

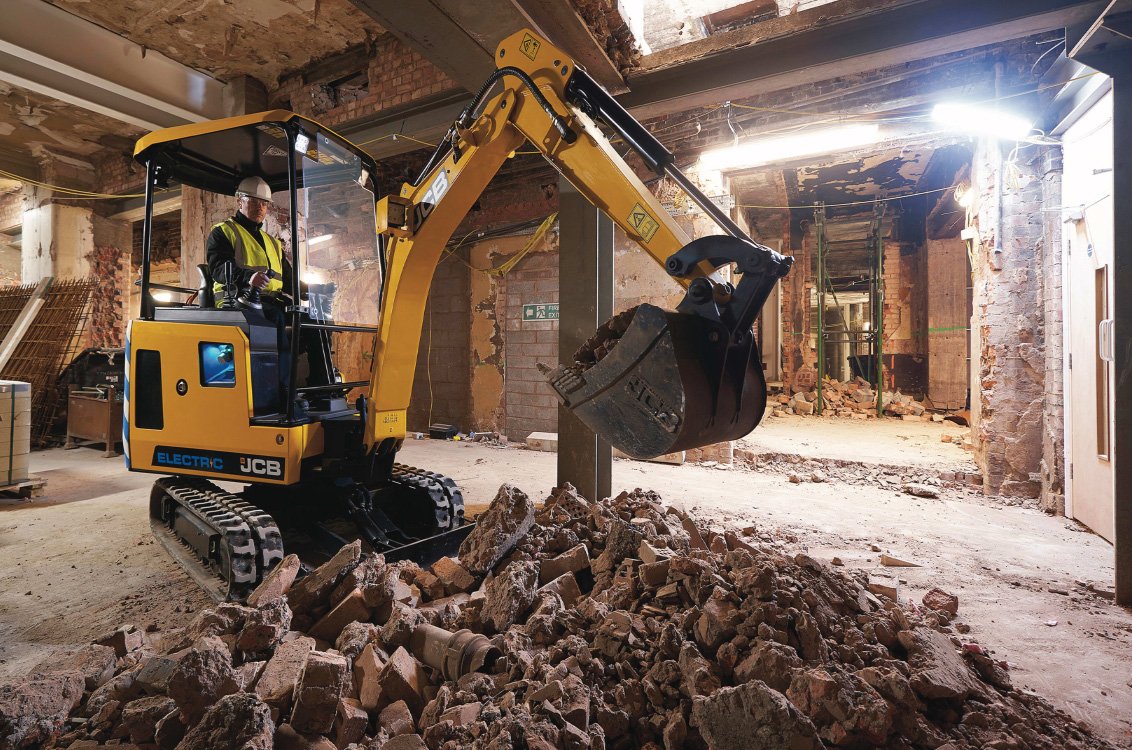

Delivering zero emissions and significantly reduced noise without compromising performance, the JCB 19C-1E is the industry's first fully electric mini excavator. Powered by a 19.8 kWh lithium-ion battery pack, it offers the freedom to complete a full 5-hour shift on a single charge and is completely free of any hazardous trailing tethers. Retaining the robust 4,193-pound structure and extending undercarriage of its diesel counterpart, the 19C-1E pushes over 4,000 lbf of bucket breakout force, making it the ultimate clean-technology solution for indoor renovations, night shifts, and urban utility work.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
JCB 19C-1E Specifications
| Operator Protection | ROPS/TOPS/FOGS |
| Tail Swing Type | Conventional |
| Operating Weight | 4105.0 lb |
| Overall Width | 39.0 in |
| Overall Width (extended) | 52.0 in |
| Overall Height | 140.0 in |
| Overall Length | 150.0 in |
| Motor Power | 7.0 kW |
| Engine Manufacturer | JCB |
| Engine Model | 3 Phase AC Permanent Magnet |
| Emissions Tier | Zero Emissions |
| Battery Capacity | 19.8 kWh |
| System Voltage | 48.0 V |
| Maximum Digging Depth | 95.0 in |
| Maximum Reach at Ground Level | 156.0 in |
| Maximum Dumping Height | 102.0 in |
| Bucket Breakout Force | 4046.0 lbf |
| Stick Digging Force - Standard | 2045.0 lbf |
| Blade Size (H x W) | 90 x 52 (with extensions) in |
| Arm Configuration | 43 in Standard Arm (37 in and 53 in options available) |
| Auxiliary Circuit Flow | 8.0 gal/min |
| Track Shoe Type | Rubber (steel available) |
| Ground Pressure | 5.1 psi |
Specifications and images may vary in accuracy.
