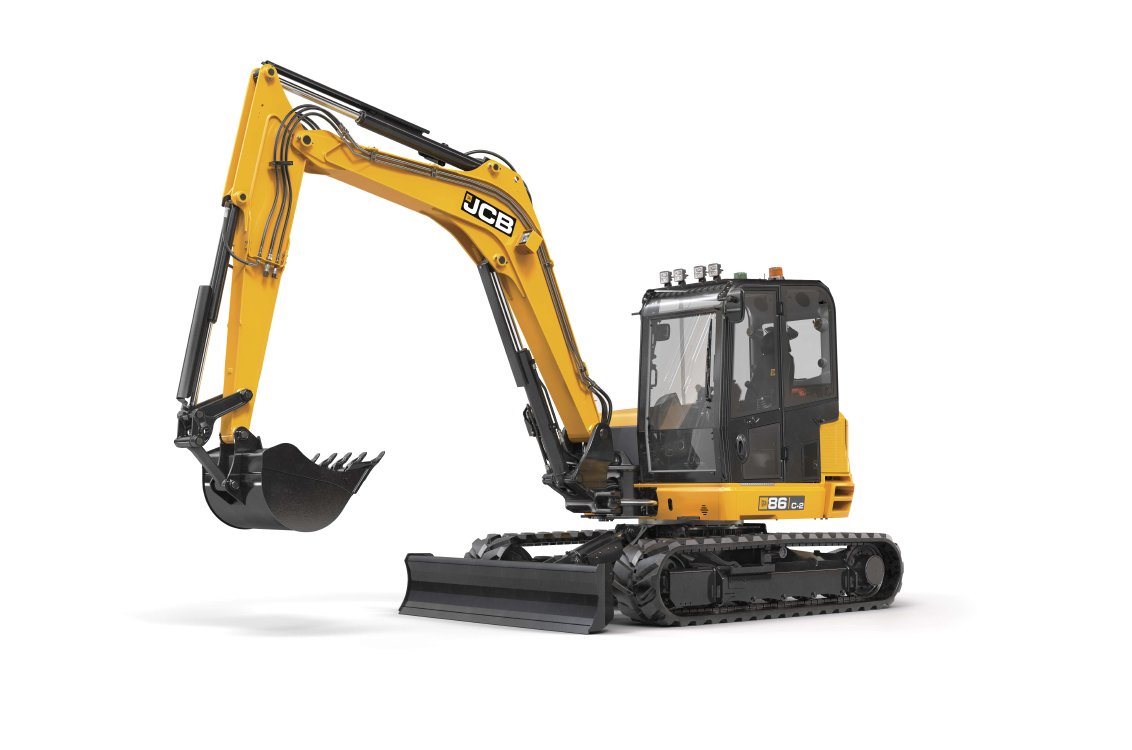

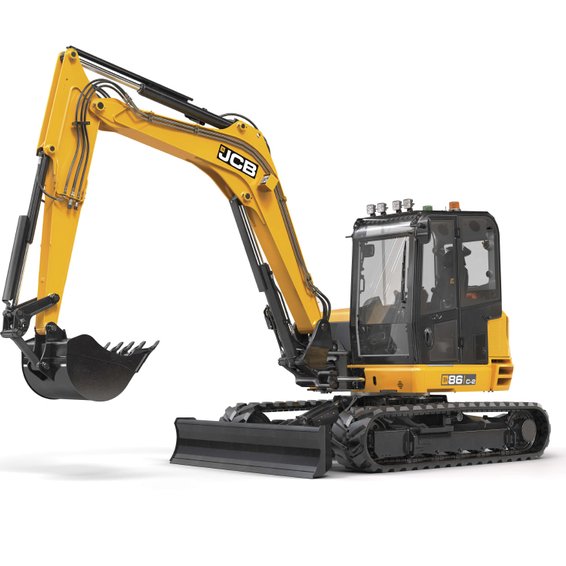

JCB 86C-2 Mini Excavator

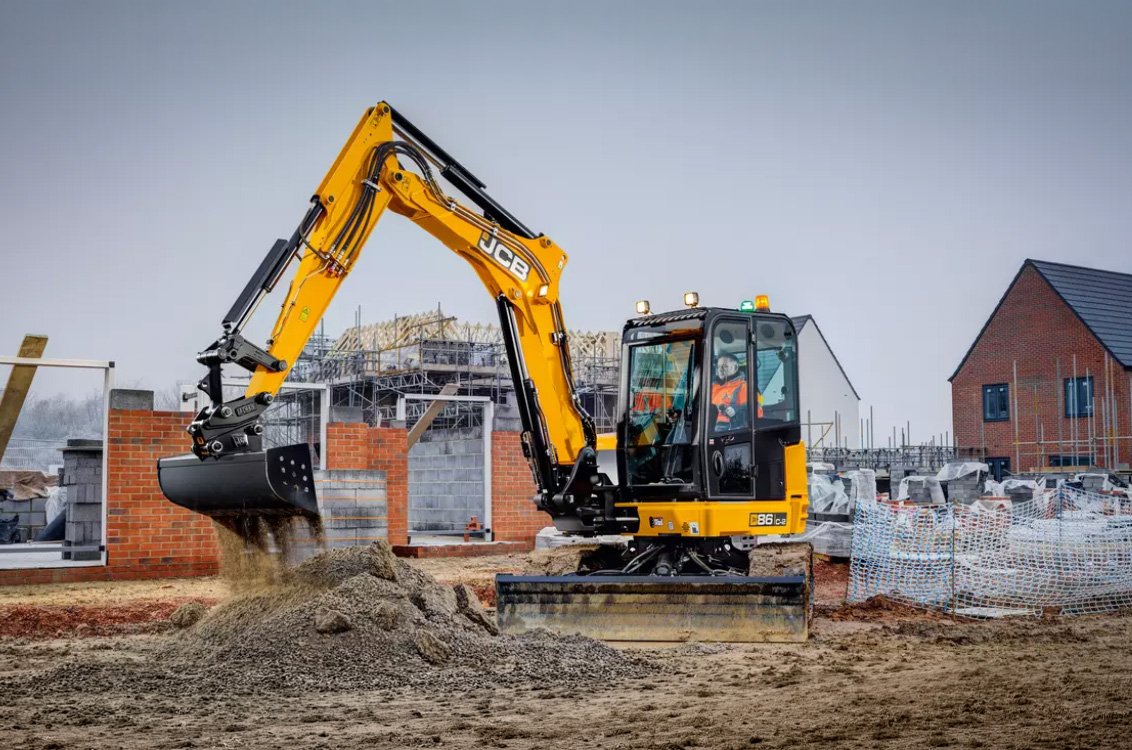

Delivering conventional tailswing stability in a robust 8.6-ton package, the JCB 86C-2 mini excavator is built for demanding commercial sites. Anchored by a 19,180-pound operating weight, an H-frame undercarriage, and 100% steel bodywork, it provides the rock-solid foundation needed for heavy lifting and aggressive trenching. Powered by a 64.4-horsepower Kohler engine that requires no DPF, the 86C-2 pushes 12,836 pounds of bucket breakout force and an impressive 14-foot, 4-inch maximum digging depth, providing the smooth, load-sensing hydraulic capabilities needed for high-production earthmoving.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
JCB 86C-2 Specifications
| Operator Protection | Fully glazed ROPS & TOPS certified cab |
| Tail Swing Type | Conventional |
| Operating Weight | 19180.0 lb |
| Overall Width | 90.6 in |
| Overall Height | 106.5 in |
| Overall Length | 253.3 in |
| Horsepower | 64.4 hp |
| Engine Manufacturer | Kohler |
| Engine Model | KDI 2504 TCR |
| Emissions Tier | EPA Tier 4 Final / Stage V |
| Fuel Tank Capacity | 29.6 gal |
| Maximum Digging Depth | 172.0 in |
| Maximum Reach at Ground Level | 290.8 in |
| Maximum Dumping Height | 212.0 in |
| Bucket Breakout Force | 12838.0 lbf |
| Stick Digging Force - Standard | 9060.0 lbf |
| Blade Size (H x W) | 18.6 x 91.3 in |
| Arm Configuration | 89 in Standard Arm |
| Auxiliary Circuit Flow | 26.4 gal/min |
| Track Shoe Type | Rubber (Steel available) |
| Ground Pressure | 5.5 psi |
Specifications and images may vary in accuracy.
