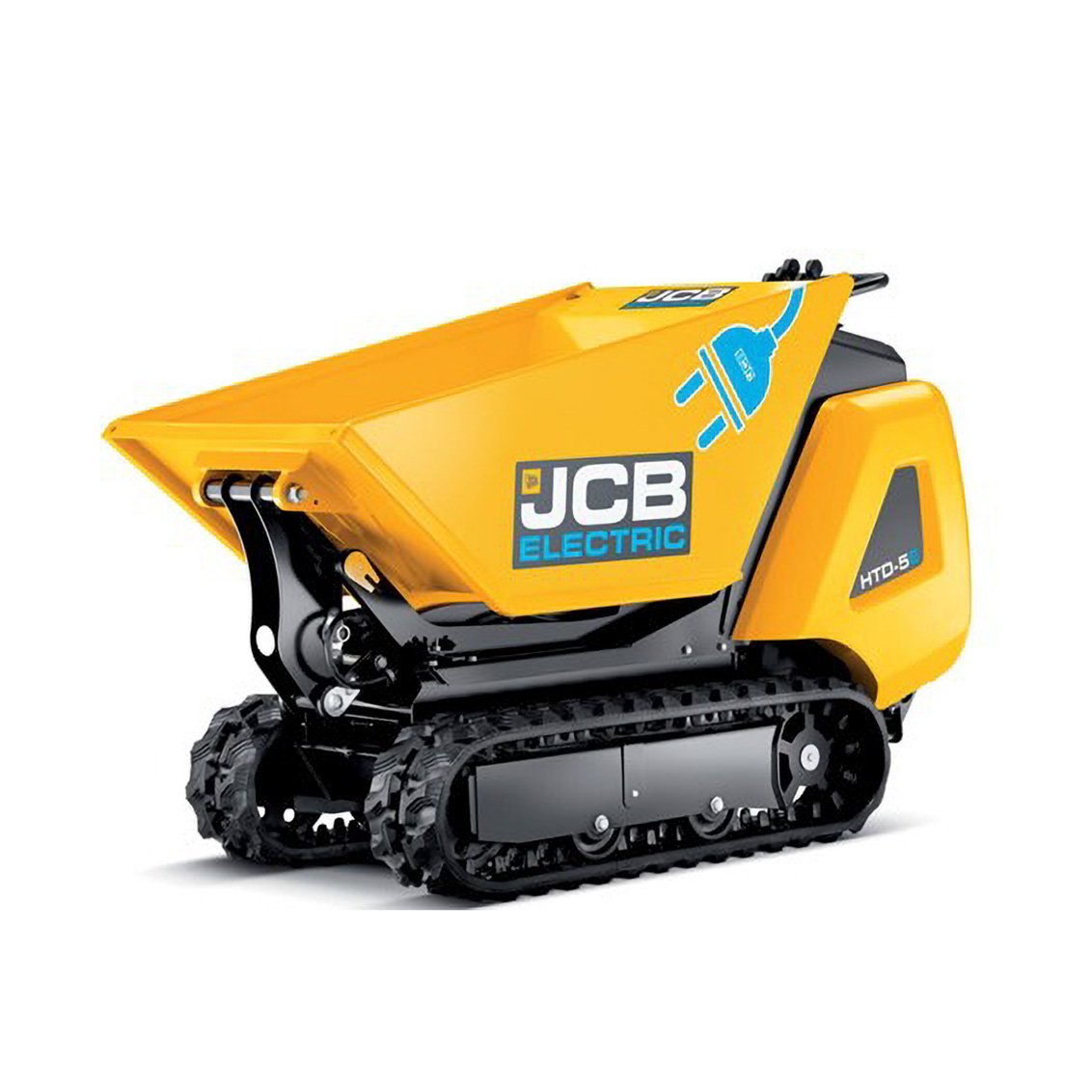

JCB HTD-5E Electric Site Dumpster
The JCB HTD-5E E-TECH is a 100% electric, zero-emission micro dumper built to maximize productivity in tight indoor and outdoor spaces. At just 27.2 inches wide and featuring true Zero-Turn independent track control, it easily glides through standard doorways, narrow hallways, and garden gates. It eliminates manual labor by hauling the equivalent of 4 to 5 standard wheelbarrows per trip, backed by a massive 1,102 lb payload capacity.. Its forward high-tip mechanism reaches a 57-inch clearance, making it easy to dump heavy loads directly into standard bins and flatbed trucks.
Powered by a maintenance-free lithium-ion battery designed to last a full typical work shift, the HTD-5E ensures you stay moving all day. When it is time to recharge, the onboard system offers ultimate flexibility: plug it into any standard 110V/120V outlet for convenient overnight charging, or connect to a 220V power source for a rapid two-hour turnaround.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
JCB HTD-5E Specifications
| Operator Environment | Walk-Behind / Ride-on Step |
| Overall Height | 43.5 in |
| Overall Length | 85.0 in |
| Overall Width | 27.2 in |
| Operating Weight | 2700.0 lbs |
| Engine Manufacturer | JCB |
| Engine Model | E-TECH Electric Motor |
| Max Speed | 1.9 mph |
| Power Mode | Electric |
| Battery Rating | 4.9 kWh |
| Transmission | 2-Speed Hydrostatic |
| Max Payload | 1102.0 lbs |
| Tipping Type | High-Tip (Forward) |
| Bucket Capacity | 13.4 cu.ft. |
Specifications and images may vary in accuracy.
