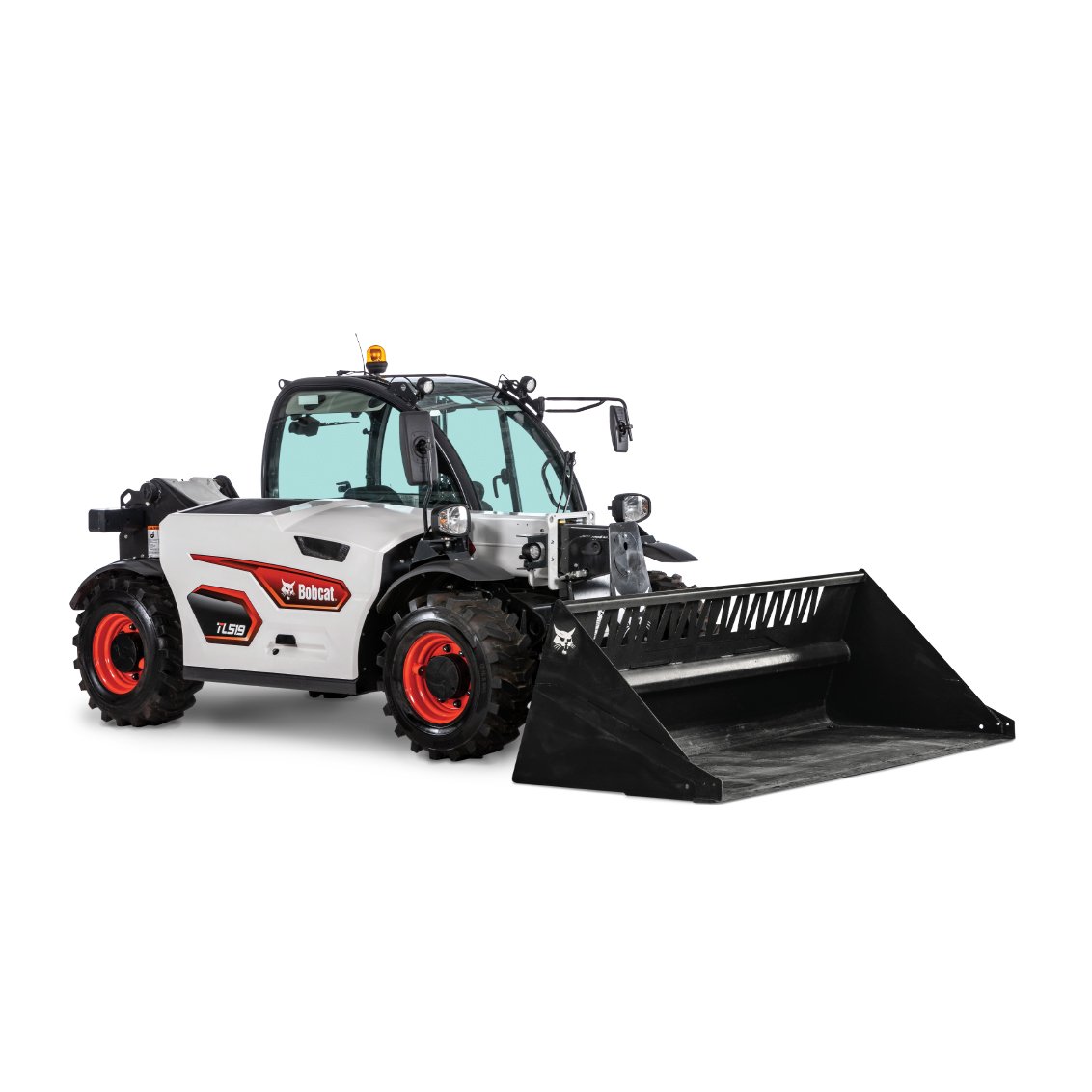

Bobcat TL519 Telehandler

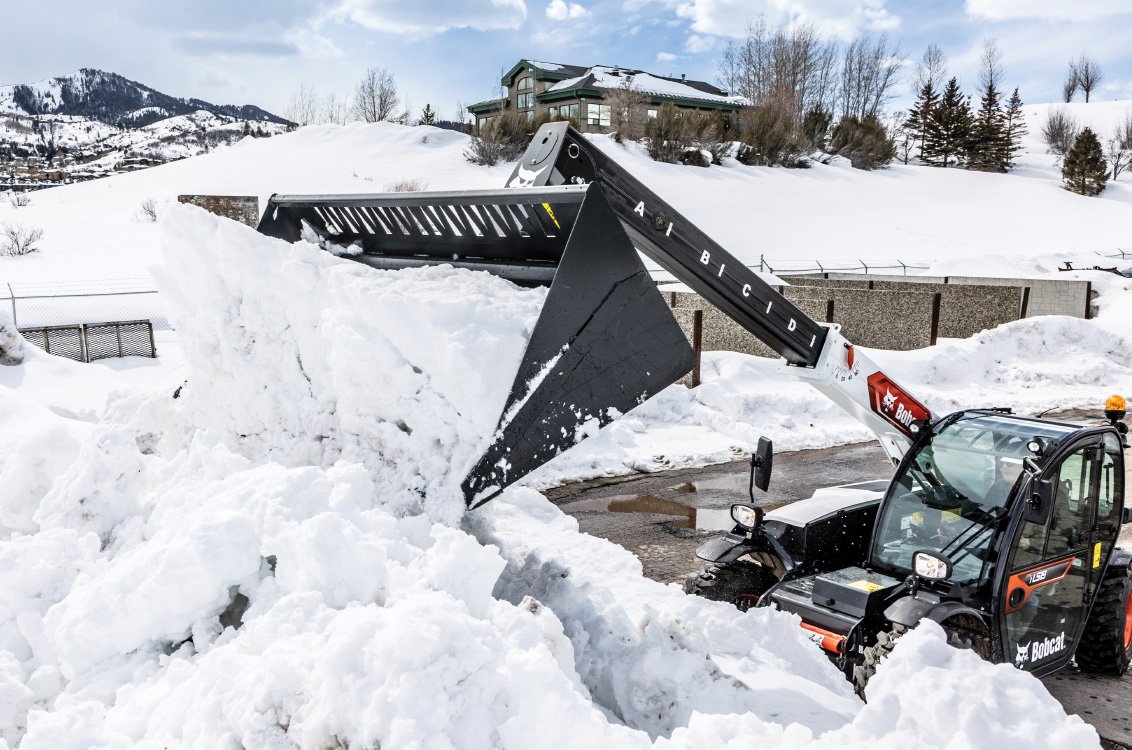

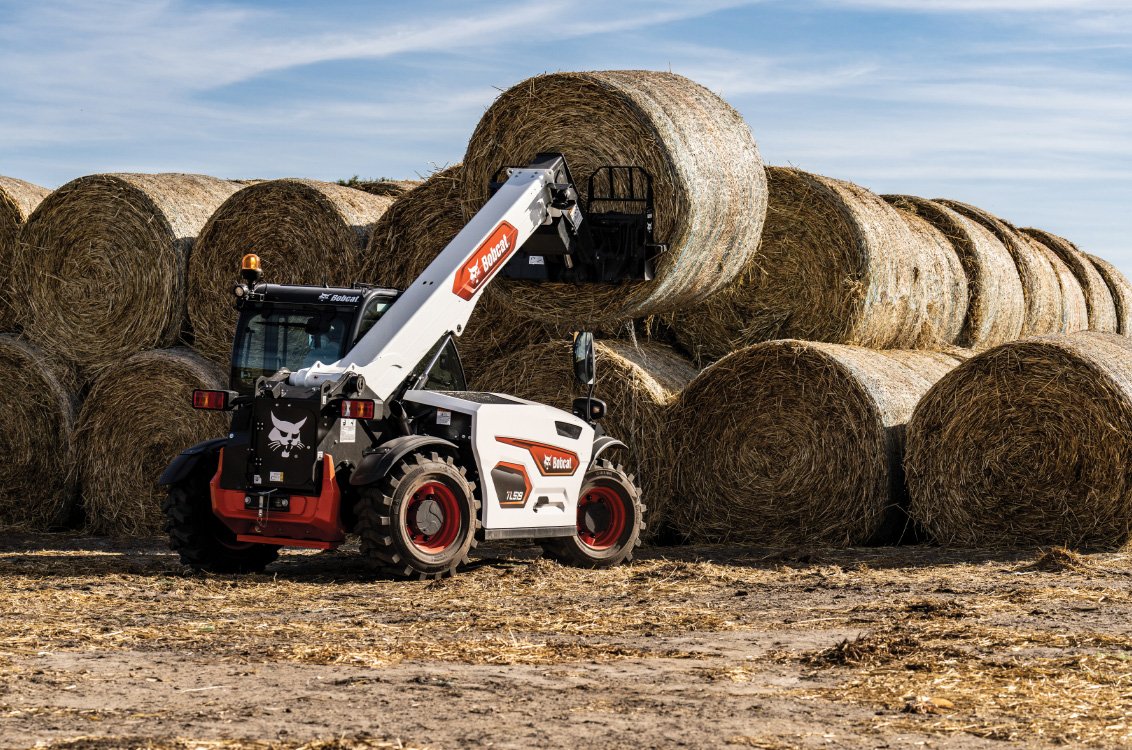

The Bobcat TL519 is a compact telehandler designed for jobs that need more lift and reach without the footprint of a larger machine. At about 6 ft wide, it can maneuver through tighter work areas while providing a 5,512 lb maximum lift capacity, roughly 19 ft of lift height and about 11 ft of forward reach. Its compact size makes it particularly useful for loading, material handling, landscaping, agriculture and snow work where space can be limited.
Power comes from a 74 hp turbocharged Bobcat Tier 4 diesel engine, paired with two-speed hydrostatic travel for both low-speed working control and faster movement around the site. Four steering modes help operators position the machine in confined areas, while 21.1 gpm of auxiliary hydraulic flow and the Power Bob-Tach attachment mounting system expand its usefulness beyond pallet forks. Approved buckets, grapples, snow attachments and other tools allow the TL519 to handle loading and attachment work as well as conventional telehandler duties.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Bobcat TL519 Specifications
| Operator Protection | ROPS / FOPS |
| Weight | 9936.0 lbs |
| Overall Width | 72.1 in |
| Overall Height | 76.0 in |
| Overall Length to Carriage | 157.0 in |
| Wheelbase | 92.9 in |
| Ground Clearance | 9.8 in |
| Engine Manufacturer | Bobcat |
| Engine Model | DM02 |
| Horsepower | 74.0 hp |
| Emissions Tier | Tier 4 |
| Fuel Tank Capacity | 17.2 gal |
| Power Source | Diesel |
| Max Lift Capacity | 5512.0 lbs |
| Max Lift Height | 232.0 in |
| Lift Capacity at Max Height | 3968.0 lbs |
| Max Forward Reach | 134.3 in |
| Lift Capacity at Max Reach | 1807.0 lbs |
| Max Travel Speed | 17.0 mph |
| Auxiliary Hydraulic Flow | 21.1 gpm |
| Steering Modes | Front Wheel, All Wheel, Crab, Semi-Crab |
| Tire Size | 305/70-16.5 in |
Specifications and images may vary in accuracy.
