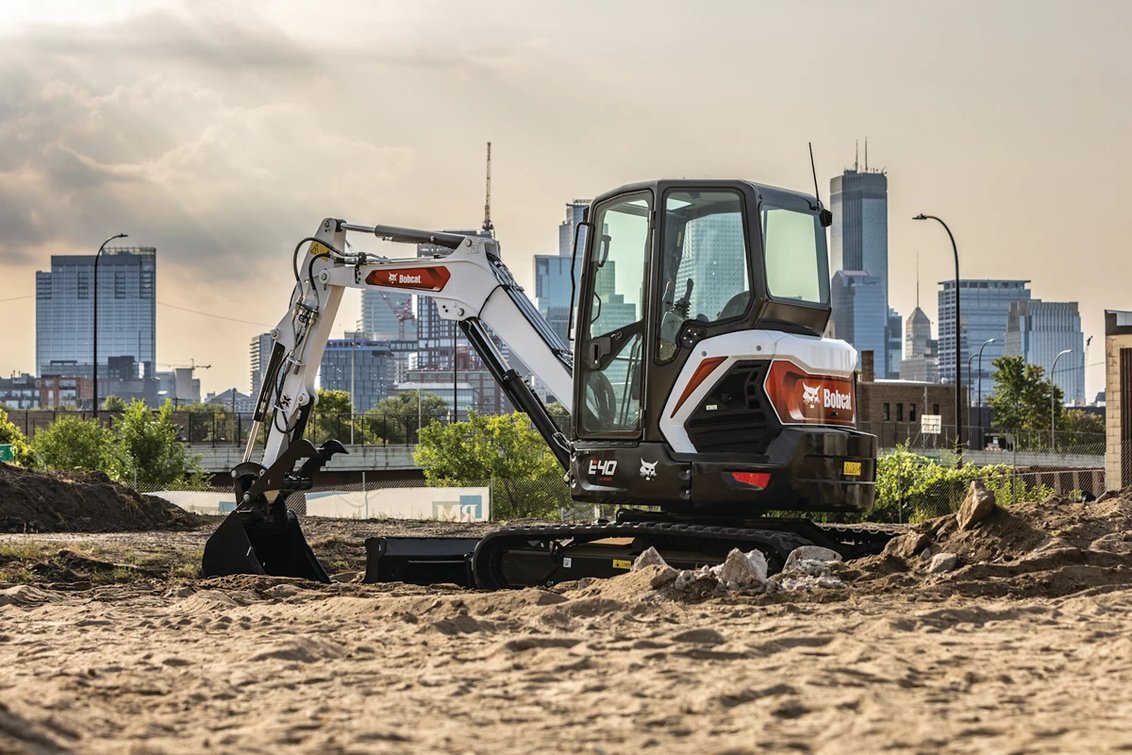

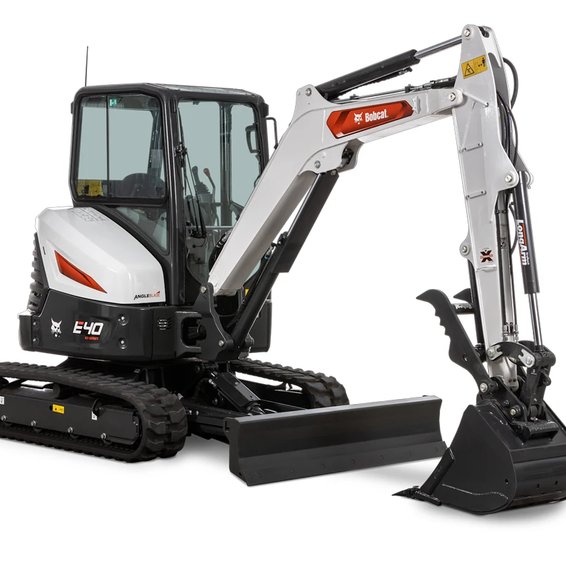

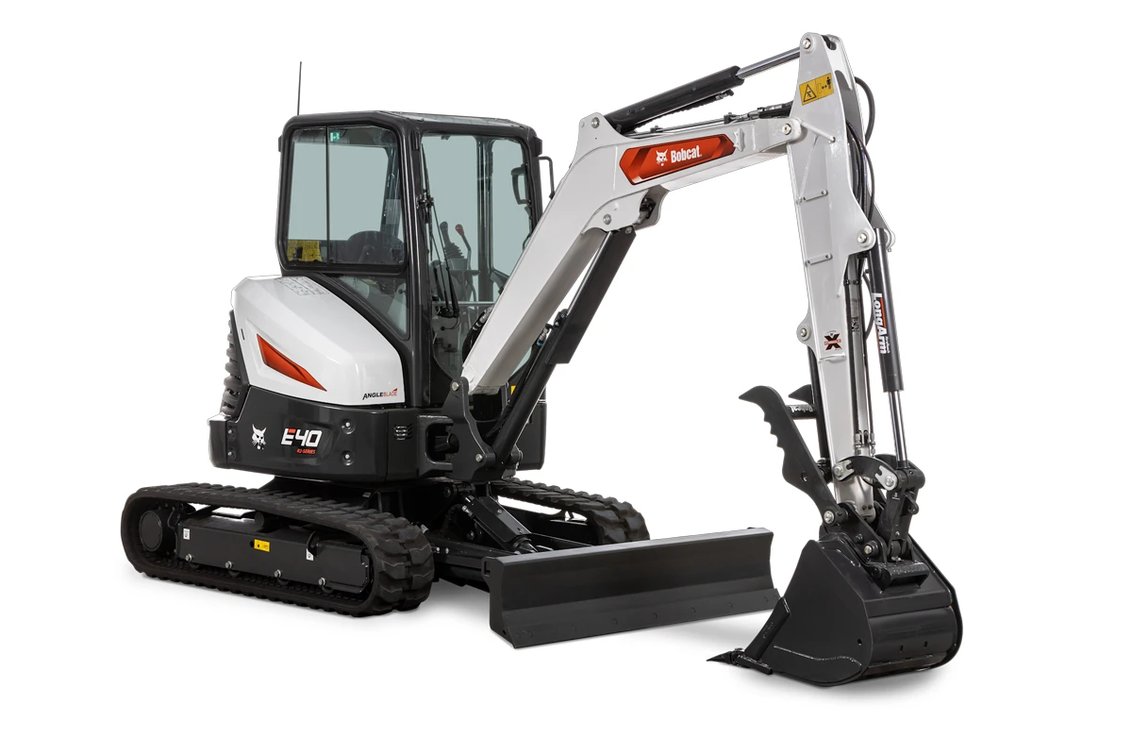

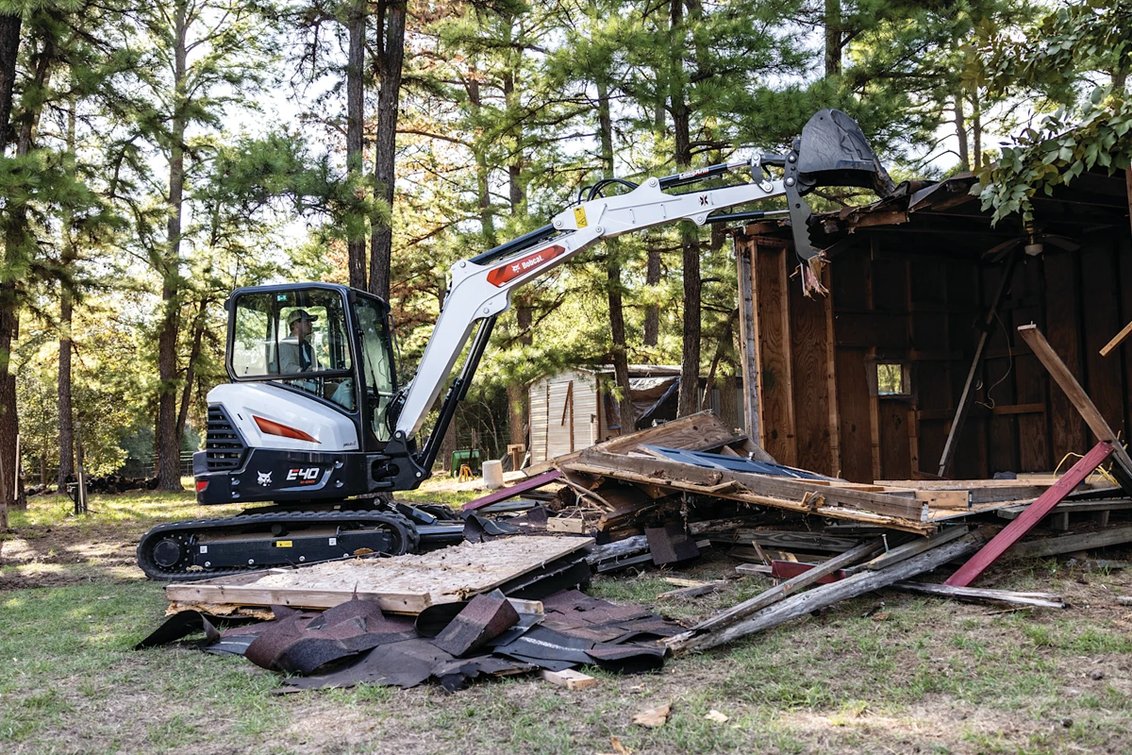

Bobcat E40 Mini Excavator
Engineered to bridge the gap between compact agility and heavy-duty lifting power, the Bobcat E40 Mini Excavator is a 4-ton powerhouse built for your most demanding jobs. This minimal tail swing machine features less than two inches of overhang and comes equipped with a standard long arm, providing exceptional reach and dig depth without requiring a massive footprint. What truly sets the 40-horsepower E40 apart is its class-leading over-the-side lift capacity and incredibly smooth dual-flange track roller system, ensuring maximum stability when slewing heavy loads of aggregate or trench spoils. For contractors who need fast cycle times and premium performance without the bulk of a conventional tail swing excavator, the E40 is the ultimate fleet upgrade.
Specifications
| Operator Protection | TOPS / ROPS / FOPS |
| Tail Swing Type | Minimal Tail Swing |
| Operating Weight | 9180.0 lb |
| Overall Width | 72.8 in |
| Overall Height | 98.7 in |
| Overall Length | 192.3 in |
| Horsepower | 40.4 hp |
| Engine Manufacturer | Bobcat |
| Emissions Tier | Tier 4 / Non-DPF |
| Fuel Tank Capacity | 13.7 gal |
| Maximum Digging Depth | 130.4 in |
| Maximum Reach at Ground Level | 215.2 in |
| Maximum Dumping Height | 146.8 in |
| Bucket Breakout Force | 7284.0 lbf |
| Stick Digging Force - Standard | 4074.0 lbf |
| Blade Size (H x W) | 13.8 x 72.8 in |
| Arm Configuration | Long Arm (Standard) |
| Auxiliary Circuit Flow | 16.9 gal/min |
| Track Shoe Type | Rubber |
| Ground Pressure | 4.3 psi |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Dig Deep, Save Bigger. Own a legendary Bobcat Mini Excavator today and pay 0% interest for up to 48 months OR secure up to $15,700 in rebates in lieu of financing.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
