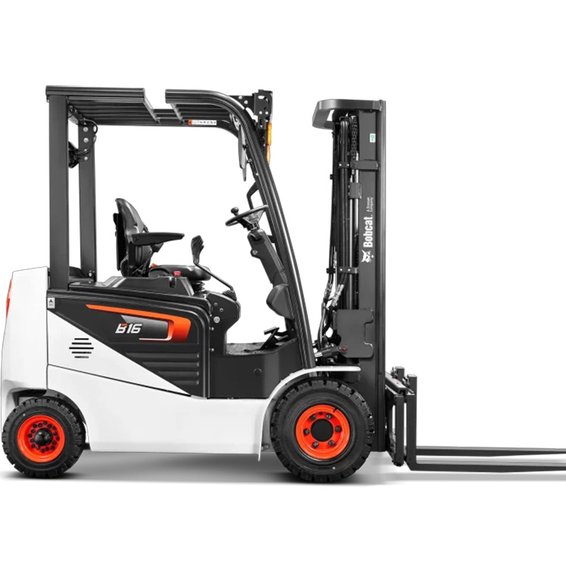

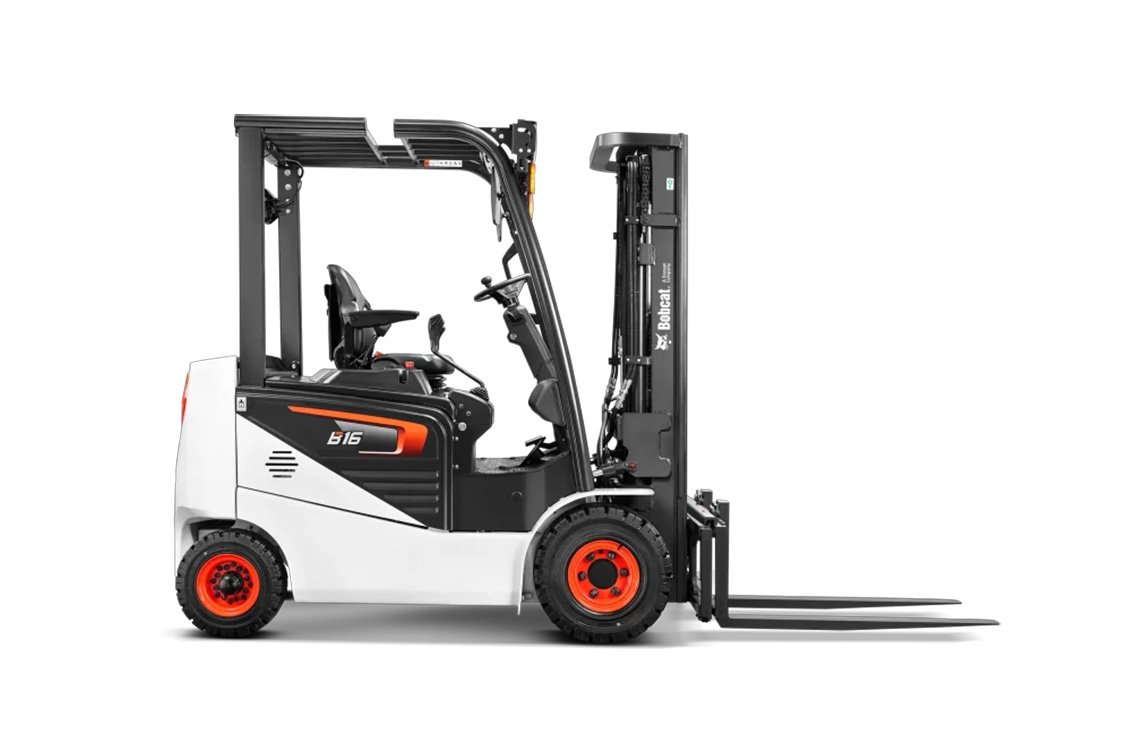

Bobcat B16X-7 Plus Electric Pneumatic Forklift

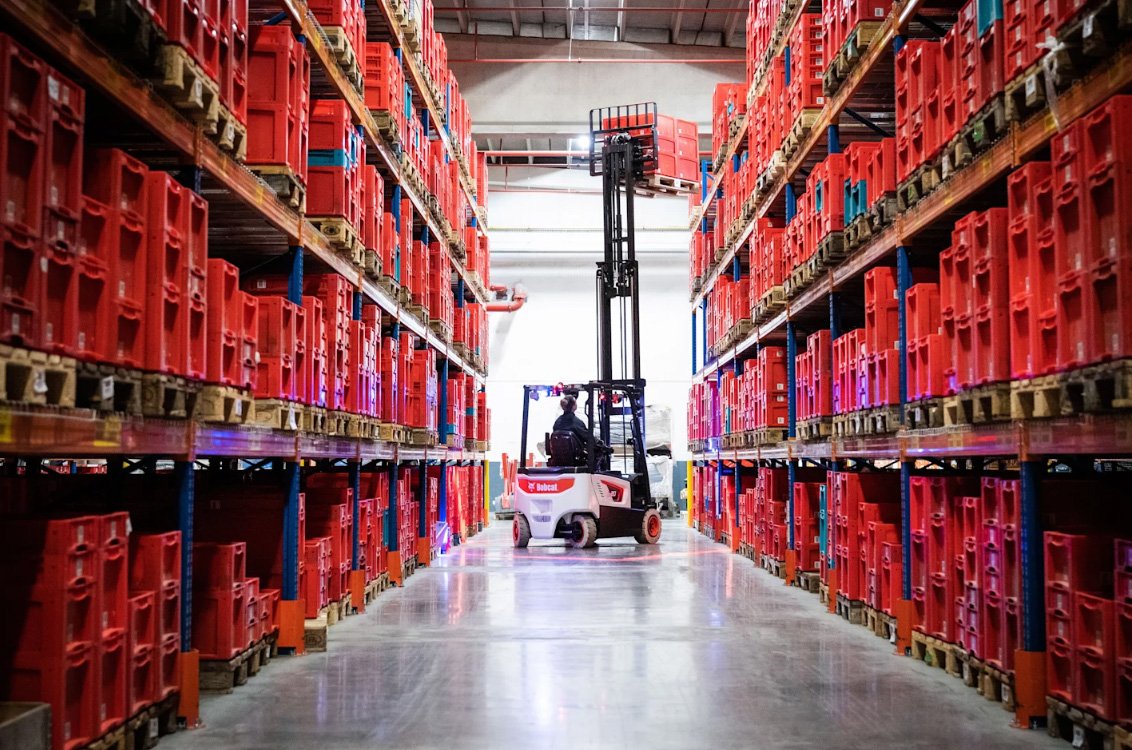

Expand your material handling capabilities indoors and out with the Bobcat B16X-7 Plus, a versatile 4-wheel electric pneumatic counterbalance forklift delivering a 3,200-pound lifting capacity. Designed for smooth indoor operation and rugged outdoor yards, this 4-wheel unit combines exceptional stability with an industry-proven 100% AC drive system and a robust hydrostatic steer axle for precise, low-effort handling.
Built to perform in demanding environments, the B16X-7 Plus features IP65-rated controllers and IP43-rated enclosed motors for reliable dust and moisture protection. Operators stay productive throughout long shifts thanks to a spacious cab floor, an adjustable premium suspension seat, and a maintenance-free E-Motor Foot Brake that reduces foot pedal fatigue. Advanced safety technologies, including the Guardian Stability System, Operator Sensing System, and an automatic electro-magnetic parking brake, ensure complete peace of mind on ramps, turns, and rough terrain.
Specifications
| Lift Capacity | 3200.0 lbs |
| Up to Max Lift Height | 236.2 in |
| Free Lift | 5.1 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Two-Stage (FF and FFT Optional) |
| Steering Type | Hydrostatic Steer Axle |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 6858.0 lbs |
| Overall Width | 42.9 in |
| Overall Length (to Fork Face) | 124.7 in |
| Overhead Guard Height | 79.0 in |
| Turning Radius | 74.2 in |
| Max Travel Speed | 10.6 mph |
| Max Gradeability | 26.0 % |
| Brake Type | E-Motor Foot Brake (EFB) / Auto-Electric Parking Brake |
| Max Lift Speed | 118 fpm |
| Front Tire Size | 18 x 7 - 8 |
| Rear Tire Size | 16 x 6 - 8 |
| Tire Type | Super Elastic / Pneumatic |
| Power Mode | Electric |
| Voltage | 48 V |
