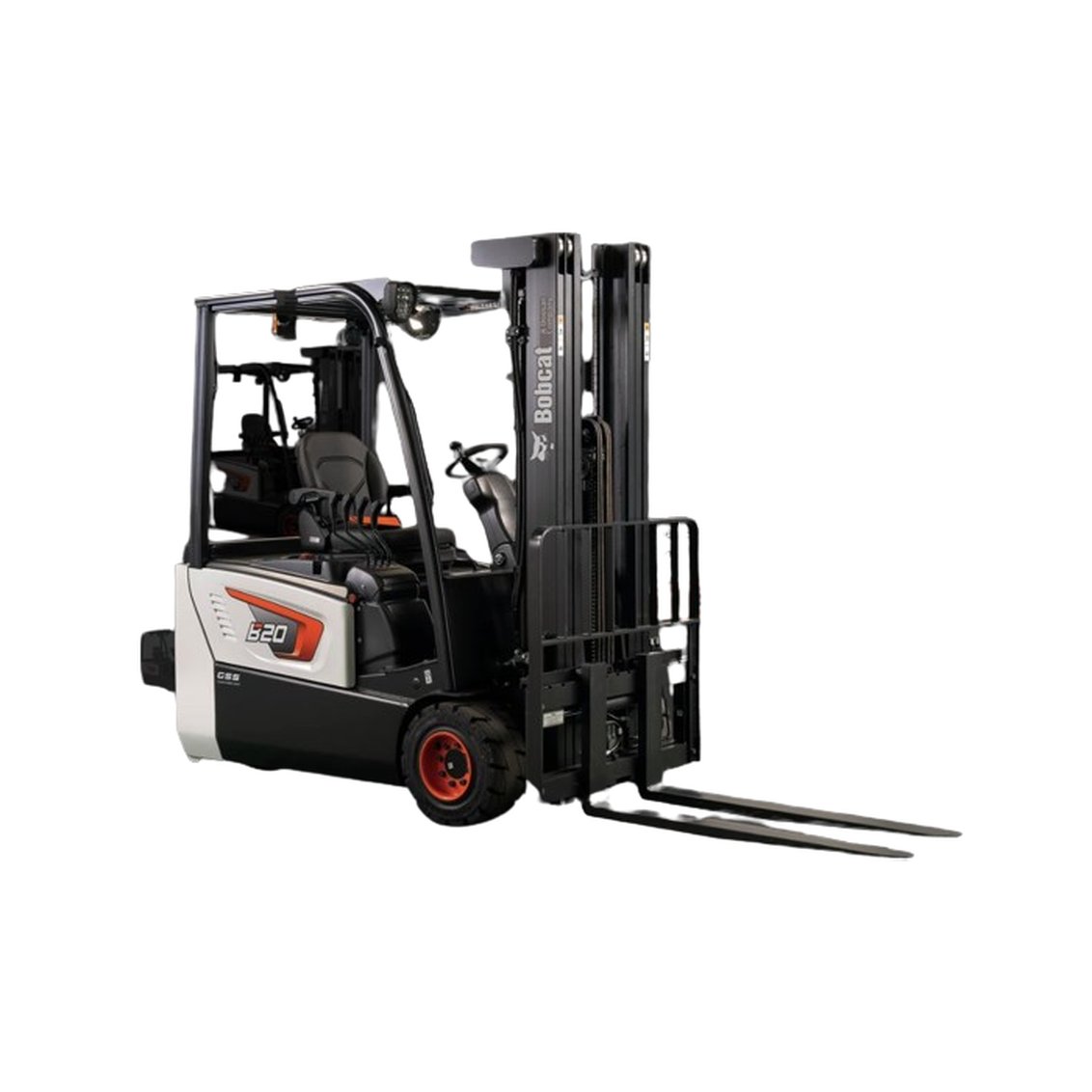

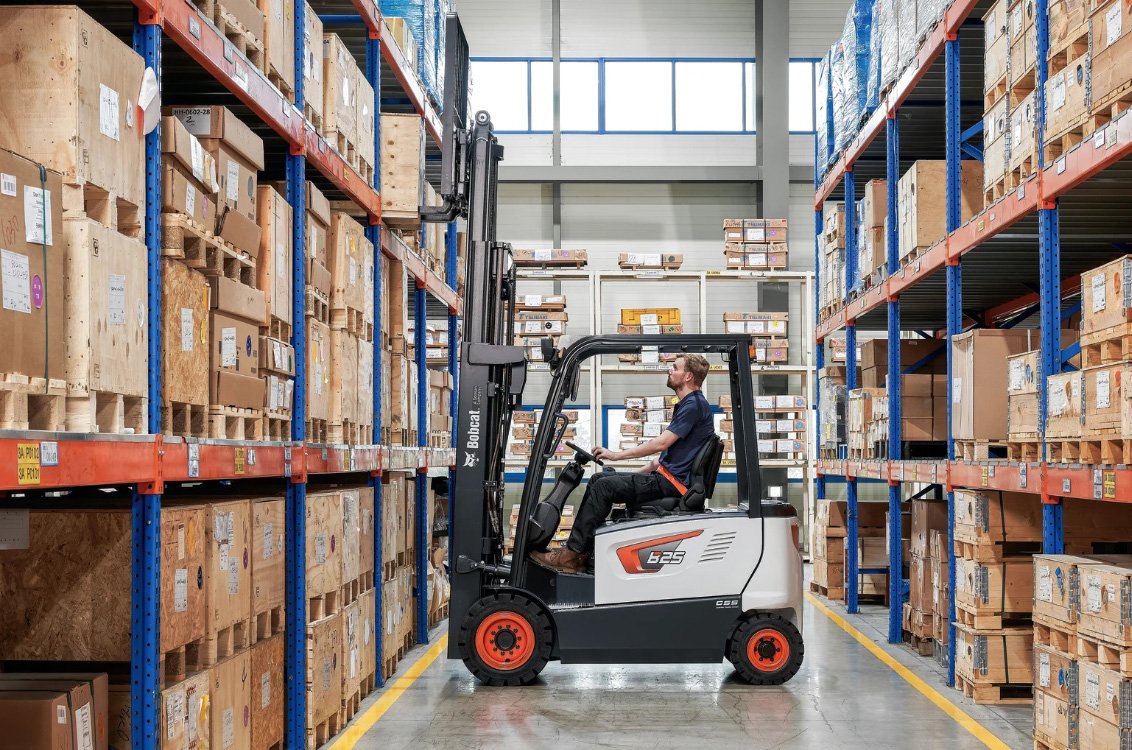

Bobcat B30X-7 Plus Electric Pneumatic Forklift
Bring heavy-duty lifting power to your indoor and outdoor operations with the Bobcat B30X-7 Plus, a robust 4-wheel electric pneumatic counterbalance forklift delivering a 6,000-pound capacity. Powered by a high-efficiency 80V electrical system and reliable Curtis AC controllers, this machine provides the raw torque and performance of an internal combustion engine with the clean, quiet operation of an electric unit.
Engineered for maximum uptime in harsh environments, the B30X-7 Plus features IP65-rated controllers and IP43-rated enclosed motors to seal out dust, debris, and moisture. The exclusive Oil-Cooled Disc Brakes (OCDB) are virtually maintenance-free and designed to last up to 10,000 hours, significantly lowering your total cost of ownership. Operators benefit from a spacious, ergonomic cab with a premium suspension seat, while the standard Guardian Stability System (GSS) and Operator Sensing System (OSS) provide unparalleled safety on every shift.
Specifications
| Lift Capacity | 6000.0 lbs |
| Up to Max Lift Height | 128.0 in |
| Free Lift | 6.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Two-Stage (FF and FFT Optional) |
| Steering Type | Power Steering |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 11173.0 lbs |
| Overall Width | 49.0 in |
| Overall Length (to Fork Face) | 97.6 in |
| Overhead Guard Height | 87.0 in |
| Turning Radius | 82.5 in |
| Max Travel Speed | 11.2 mph |
| Max Gradeability | 34.0 % |
| Brake Type | Oil-Cooled Disc Brakes (OCDB) / Auto-Electric Parking Brake |
| Max Lift Speed | 118.2 fpm |
| Front Tire Size | 23 x 10 - 12 in |
| Rear Tire Size | 18 x 7 - 8 in |
| Tire Type | Pneumatic / Solid (Super-elastic) |
| Power Mode | Battery (Lead-Acid / Lithium-Ion optional) |
| Voltage | 80 V |
