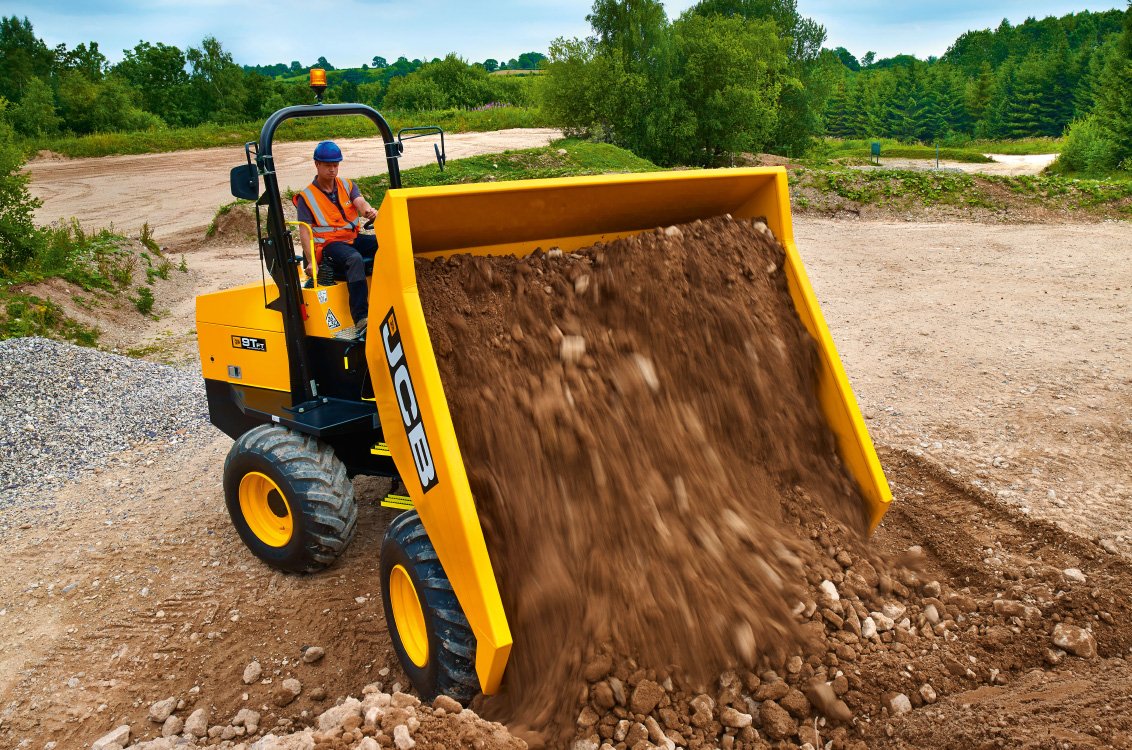

JCB 9T-1 Site Dumper
For the ultimate balance of safety, comfort, and mass material movement, contractors trust the JCB 9T Site Dumper. As the largest dumper in the lineup, it is built to move massive volumes of material quickly. It boasts a staggering 19,842 lb payload and a 160 cu.ft. heaped bucket capacity. Powered by a 74 hp JCB DieselMAX Stage V engine, this machine delivers a 10% increase in torque over previous models, providing exceptional hill-climbing performance even when fully loaded. The 4-speed permanent 4WD powershuttle transmission ensures maximum traction across the most challenging off-road terrain.
The 9T has been meticulously designed with operator and site safety as its core focus. The machine comes standard with a high-visibility front-tip skip, and can be upgraded to the exclusive JCB SITESAFE™ skip, which improves forward visibility by up to 30%. To maximize uptime on the job, the 9T features auto-DPF regeneration technology that self-regulates without requiring any input or downtime from the operator. With ground-level access to all daily checks and extended 1,000-hour service intervals, the 9T ensures your machine spends its time working, not being worked on.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
JCB 9T-1 Specifications
| Operator Environment | Operator Environment: ROPS/FOPS Level II (Optional SiTESAFE Cab) |
| Overall Height | 131.8 in |
| Overall Length | 193.4 in |
| Overall Width | 98.4 in |
| Operating Weight | 11905.0 lbs |
| Engine Manufacturer | JCB |
| Engine Model | DieselMAX (Stage V) |
| Max Speed | 15.3 mph |
| Power Mode | Diesel |
| Horsepower | 74.0 hp |
| Transmission | 4-Speed Powershuttle (Permanent 4WD) |
| Max Payload | 19842.0 lbs |
| Turning Radius | 250.9 in |
| Tipping Type | Front Tip |
| Bucket Capacity | 160.0 cu.ft. |
Specifications and images may vary in accuracy.
