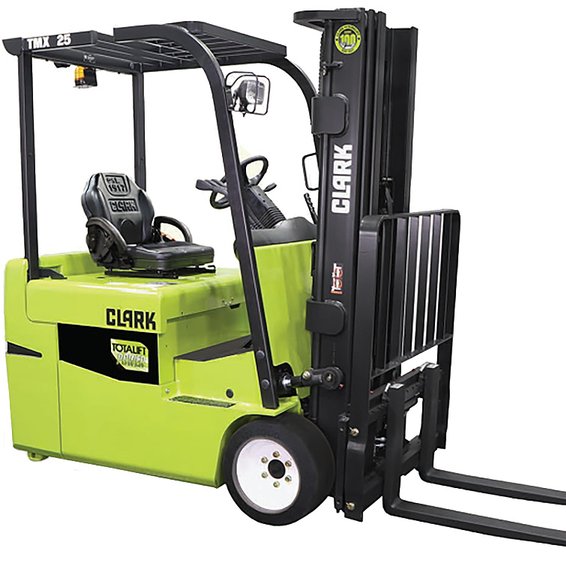

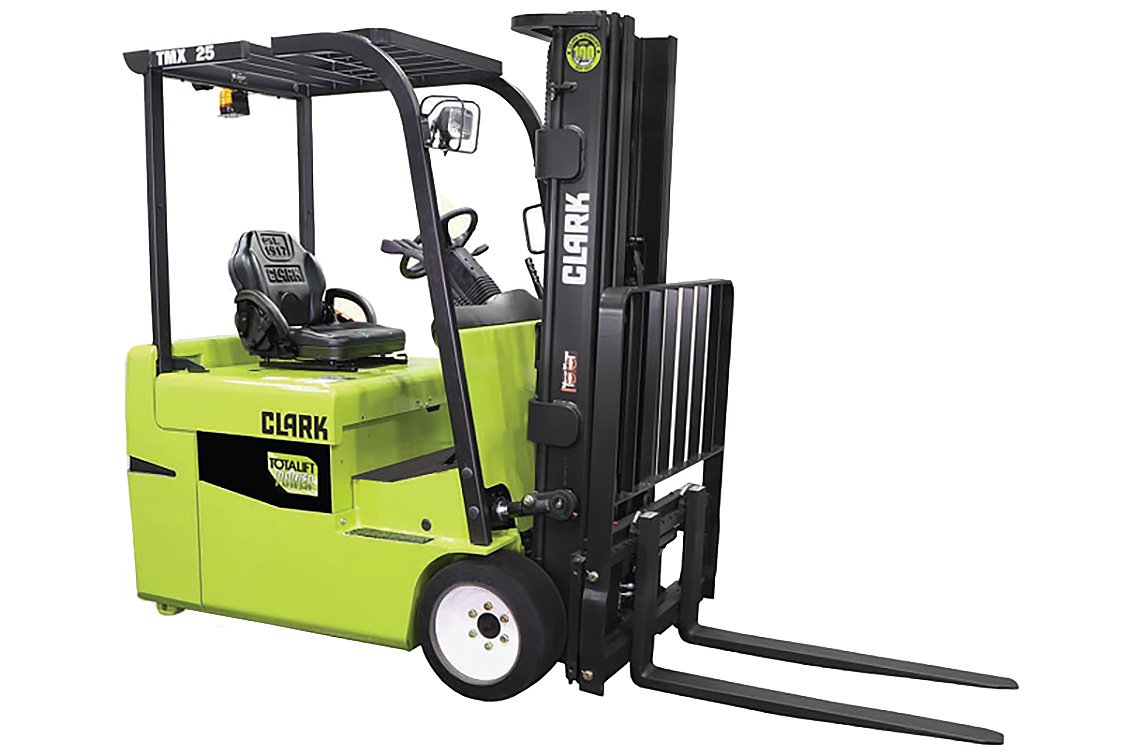

Clark TMX 25 Electric Rider Cushion Forklift
The CLARK TMX 25 is a three-wheel, sit-down electric cushion forklift built for tight indoor aisles, trailers, and dock work. It runs on a 36 or 48-V, 100% AC system for smooth, low-maintenance performance, and carries 5.000 lb at a 24 in load centre. Common mast choices cover everyday racking: 2-stage options around 121–143 in for low-reach work, or a 3-stage up to 188 in when you need higher placement without sacrificing maneuverability.
Specifications
| Brakes | Disc |
| Maximum Fork Height | 187.0 in |
| Standard Mast: Free Lift | 59.0 in |
| Mast | 3-Stage |
| Control Type | AC Control |
| Drive Motor | Dual AC |
| Minimum Battery Weight | 2590.0 lbs |
| Plug Type | SB-350 Gray/Blue |
| Cable Connection Position | A |
| Cable Length | 18.0 ft |
| Steering | Hydrostatic |
| Min. Aisle Right Ang Stack +LL | 76.1 in |
| Maximum Fork Spread | 36.0 in |
| Front Overhang | 14.4 in |
| Tread (Front/Rear) | 33.3/ - |
| Outside Turning Radius | 61.9 in |
| Height To Top Overhead Guard | 83.0 in |
| Lowered Overall Height | 83.0 in |
| Center of Wheelbase | 4.1 in |
| Overall Length | 76.1 in |
| Overall Width | 42.25 in |
| Wheelbase | 52.7 in |
| Steer Tire Size | 18 x 6 x 12.12 |
| Drive Tire Size | 18 x 9 x 12.12 in |
| Travel Speed Loaded | 7.5 mph |
| Load Center | 24.0 in |
| Capacity | 5000.0 lbs |
