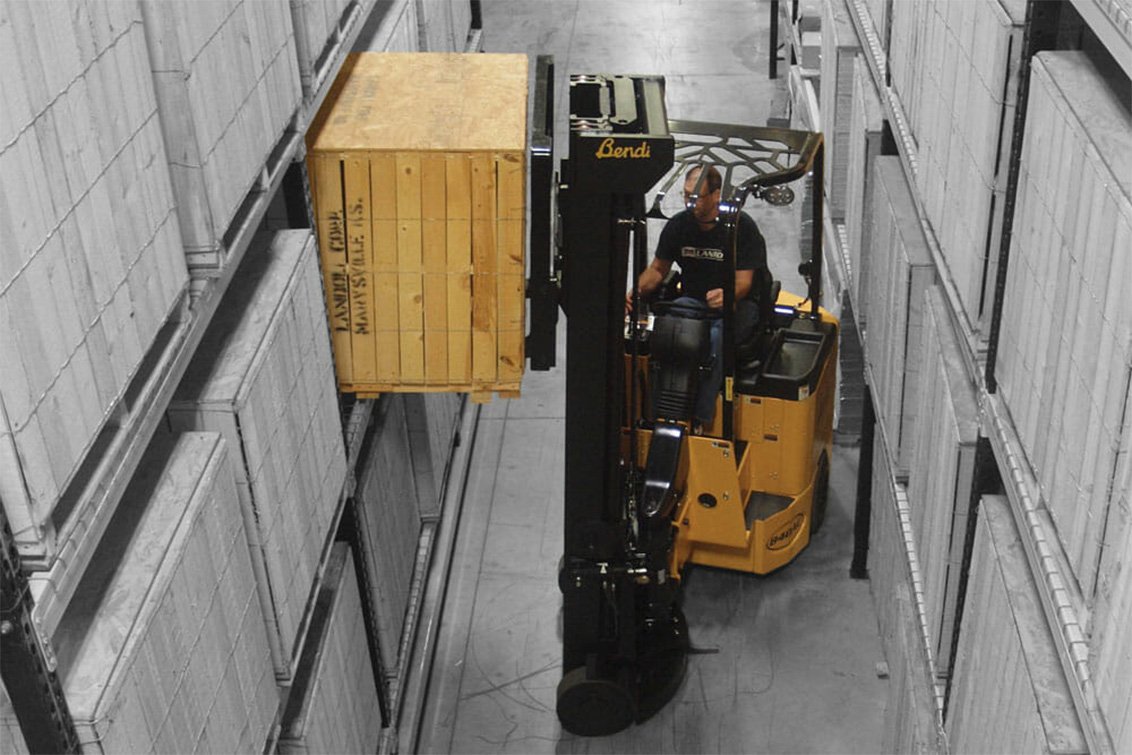

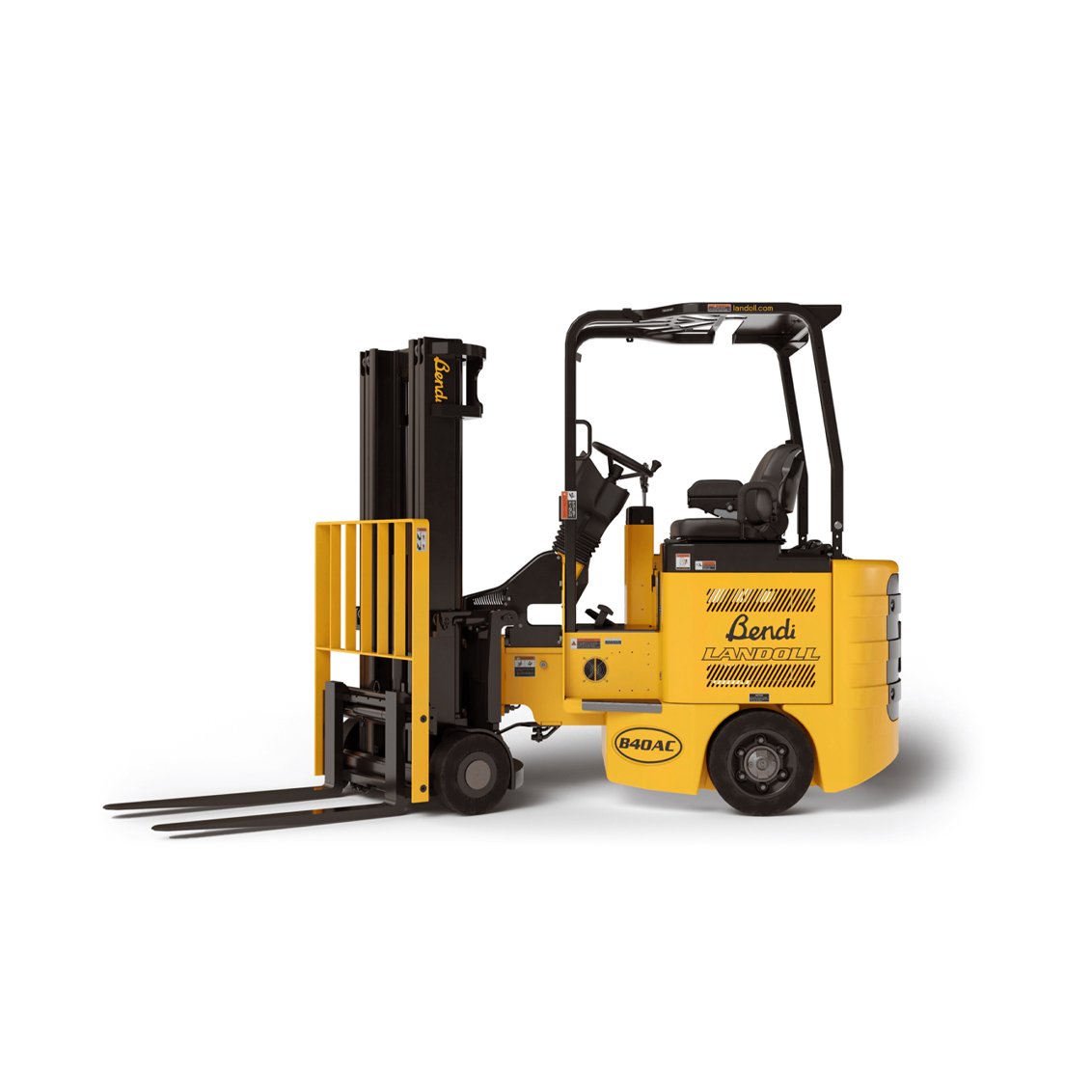

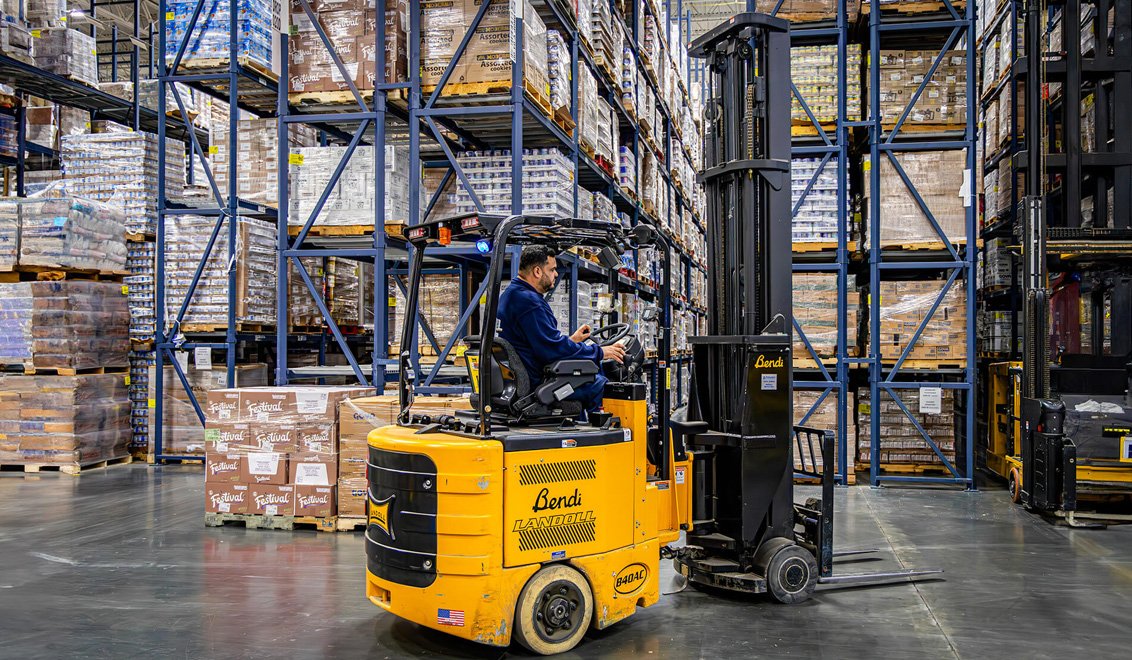

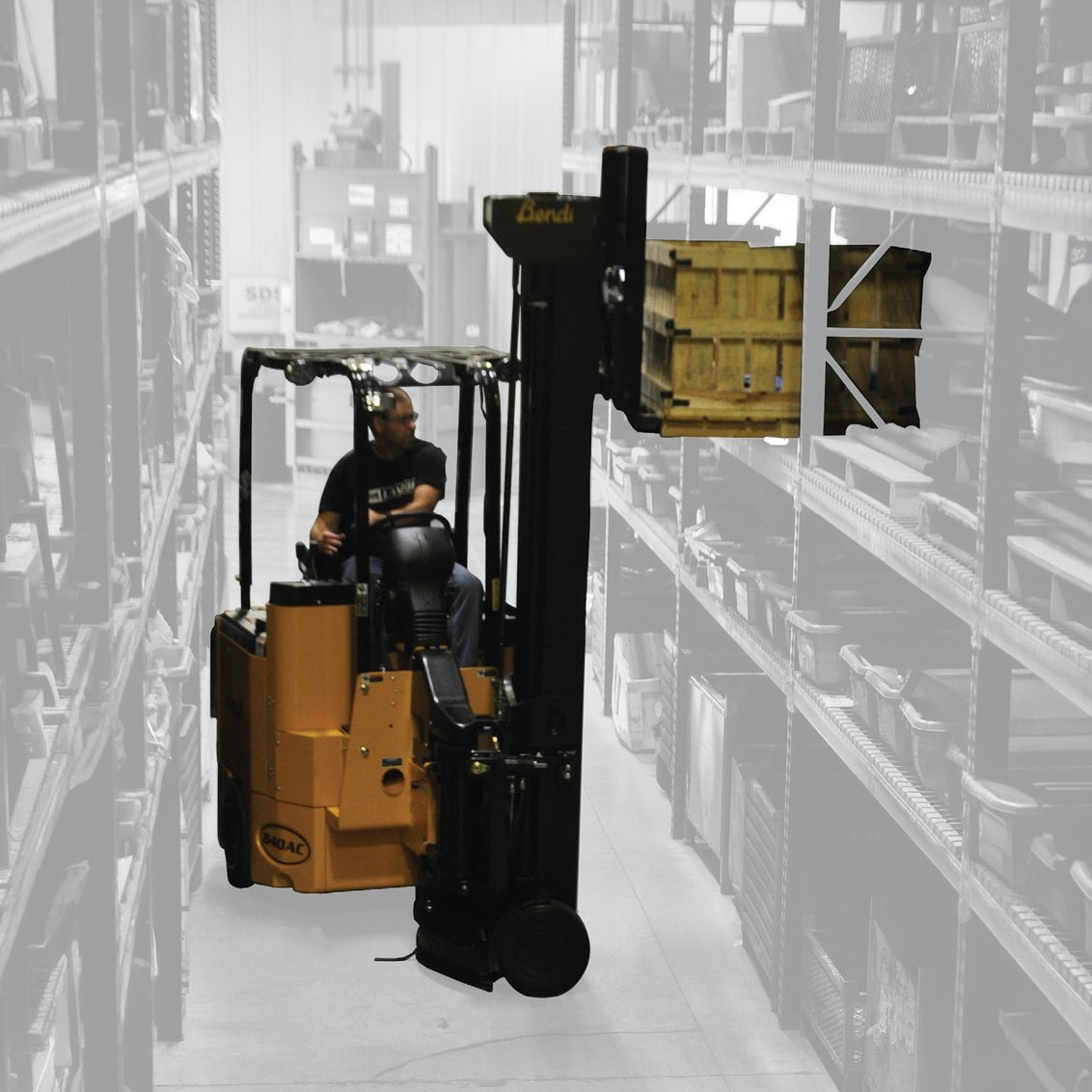

Bendi B40AC Very Narrow Aisle Articulating Forklift
The Bendi B40AC is a 4-wheel, AC-powered articulating narrow aisle forklift designed to maximize cube utilization and provide front loader versatility. Boasting a heavy-duty 4,000-pound lift capacity at a 24-inch load centre, this VNA machine operates efficiently in stacking aisles as narrow as 78 inches. Its 180-degree DuraSteer™ front-end articulation and heavy-duty dual rear wheel planetary drives deliver exceptional maneuverability for both inside and outside capabilities.
Built for operator comfort and safety, the B40AC features an adjustable cloth suspension seat, a high-visibility mast, and hydraulic power steering. The 48V electric system is driven by powerful AC traction and hydraulic motors, offering smooth, reliable performance and low-maintenance operation through easily accessible components.
Specifications
| Lift Capacity | 4000.0 lbs |
| Max Lift Height | 188 - 374 in |
| Free Lift Height | 47 - 131 in |
| Lowered Overall Height | 83 - 167 in |
| Mast Type | 3-Stage / 4-Stage |
| Operating Weight | 14850.0 lbs |
| Baseleg Outer Width | 50.0 in |
| Overall Length (to Fork Face) | 103.0 in |
| Overhead Guard Height | 89.0 in |
| Minimum Aisle Width | 78.0 in |
| Travel Speed (Unloaded) | 7.0 mph |
| Lift Speed (Loaded) | 90 fpm |
| Steering Type | DuraSteer Hydraulic |
| Tire Type | Poly Front / Rubber Rear |
| Power Mode | Battery (Electric) |
| Voltage | 48.0 V |
