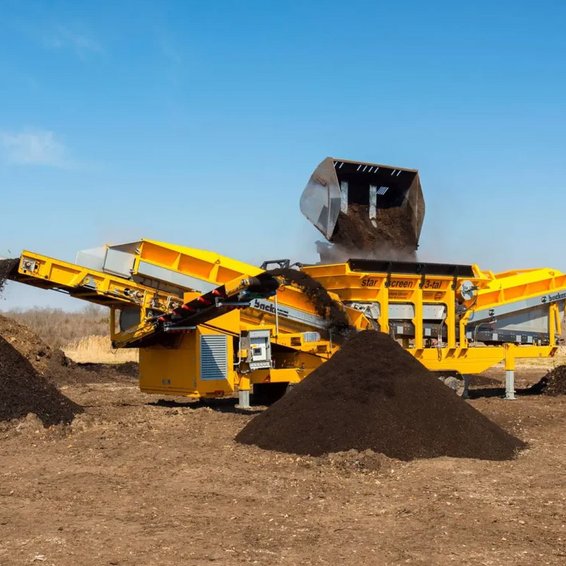

The Backers 2-Fraction Star Screen is a high-performance screening solution engineered to efficiently separate materials into two distinct fractions, even under challenging conditions. Utilizing rotating polyurethane stars, it agitates and loosens materials, ensuring effective separation of fines and oversize particles. This system excels in processing wet, sticky, or bulky materials, making it ideal for applications such as composting, topsoil, construction debris, and aggregate processing.

Key Specifications

• Screening Area: 5.4 m² (2-HTA model) to 8 m² (2-TA model)

• Separation Cut: 6/8 mm to 80 mm

• Throughput: Up to 200 m³/h (2-TA model)

• Engine Options:

  • Perkins® 904J-E36TA (74.5 kW) for 2-HTA model

  • Perkins® 1204J-E44TTA (140 kW) for 2-TA model

• Mobility Options: Tracked, wheeled, or hook-lift configurations

• Optional Features:

  • Grizzly screen for pre-separation of coarse materials

  • Wind sifter for removing light contaminants

  • Automatic deck cleaning system

  • CAN bus control system for monitoring and programming
