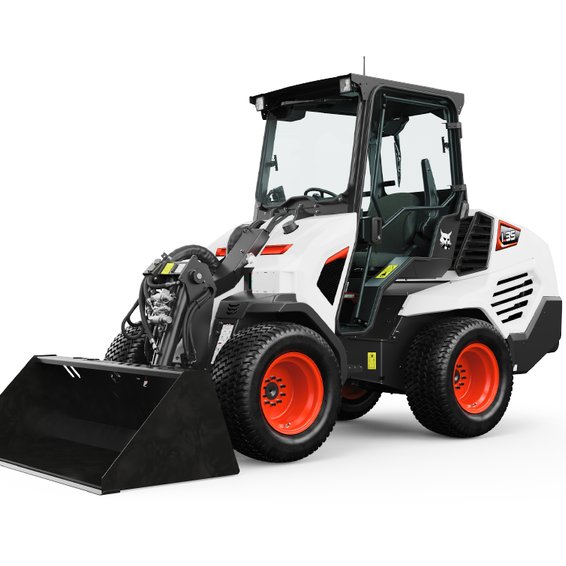

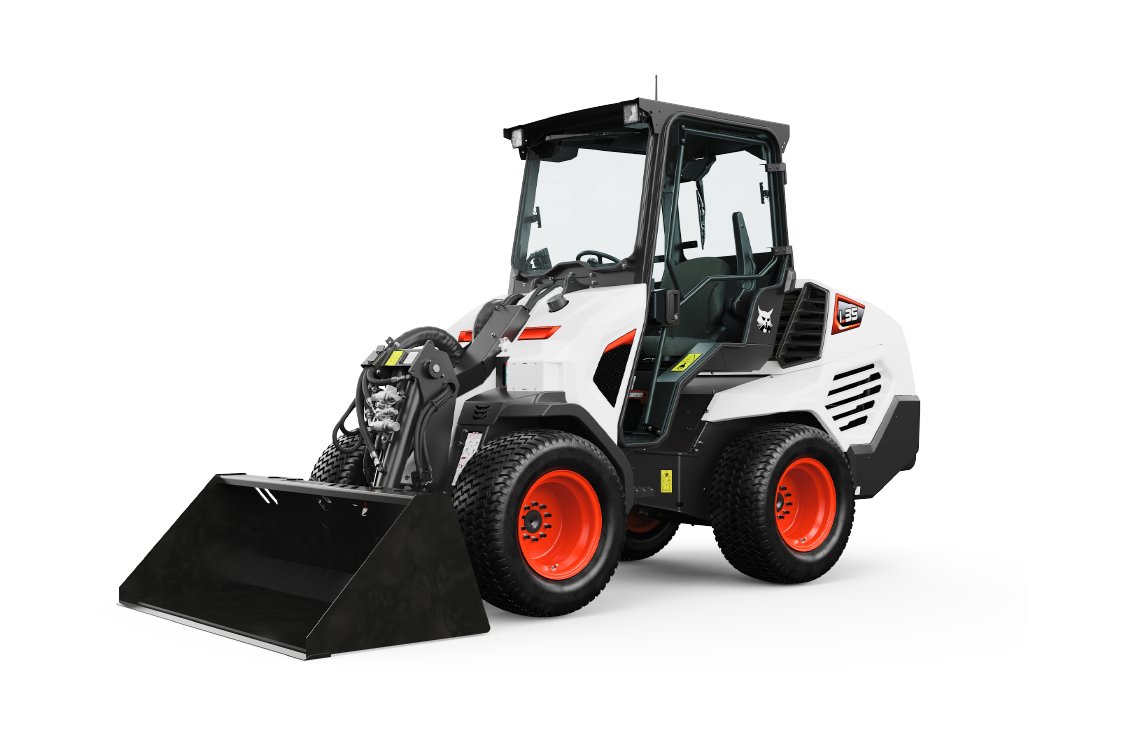

Bobcat L35 Small Articulated Loader
Command exceptional lifting power on demanding landscape, forestry, and construction sites with the Bobcat L35 small articulated loader. Equipped with a 57-horsepower Bobcat diesel engine, this 6,012-pound machine reliably handles heavy materials, offering a straight rated operating capacity of 2,072 pounds. Operators can stack high-sided trucks or bulk hoppers with ease using a telescoping lift arm that extends to a 115-inch maximum hinge pin height. Maintaining an agile 52-inch width to navigate complex jobsites, the loader protects delicate turf and established grounds thanks to its articulating joint. Built for maximum efficiency, it travels at speeds up to 16 mph and delivers an impressive 18 gpm of standard auxiliary flow, plus an optional 25 gpm of high flow, to drive aggressive attachments like brush cutters, trenchers, and large grapples.
Specifications
| Operating Weight | 6012.0 lbs |
| Overall Length (with Standard Bucket) | 148.5 in |
| Length (Less Bucket) | 110.9 in |
| Overall Width (over Tires) | 52.4 in |
| Overall Height (to top of cab/ROPS) | 82.2 in |
| Ground Clearance | 6.5 in |
| Turning Radius (inside) | 92.8 in |
| Turning Radius (outside) | 111.2 in |
| Gross Horsepower | 57.0 hp |
| Engine Manufacturer | Bobcat |
| Engine Model | 1.8 L |
| Fuel Type | Diesel |
| Emissions Tier | Tier 4 |
| Fuel Tank Capacity | 13.5 gal |
| Rated Operating Capacity (straight) | 2072.0 lbs |
| Rated Operating Capacity (articulated) | 1695.0 lbs |
| Height to Hinge Pin (max) | 114.8 in |
| Breakout Force | 4000.0 lbf |
| Max Travel Speed | 16.2 mph |
| Auxiliary Standard Flow | 18.0 gpm |
| Auxiliary High Flow | 25.3 gpm |
| System Pressure | 25.3 psi |
| Tire Size | 26X12-12 (10-Ply) |
