New Equipment

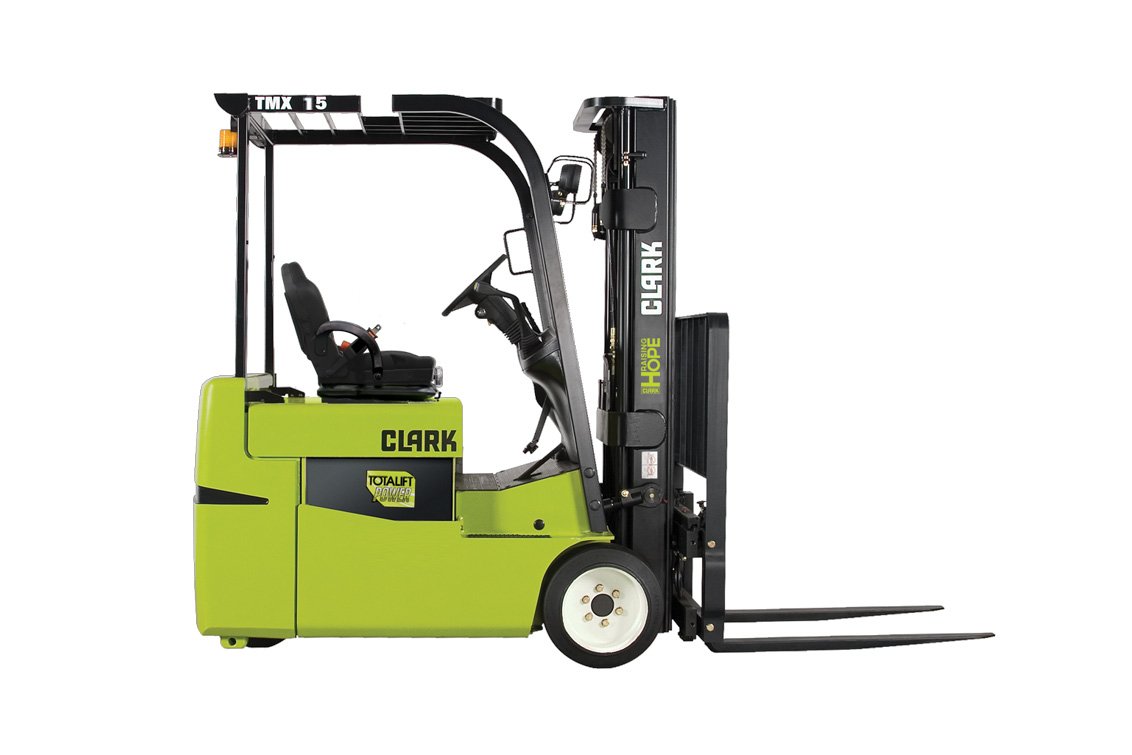

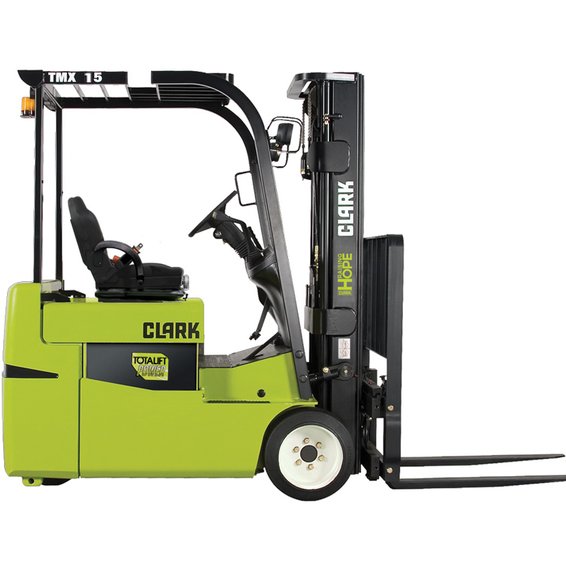

Clark TMX 15 Electric Rider Cushion Forklift

The CLARK TMX 15 is a three-wheel, sit-down electric cushion forklift built for tight indoor aisles, trailers, and dock work. It runs on a 36 or 48-V, 100% AC system for smooth, low-maintenance performance, and carries 3,000 lb at a 24 in load centre. Common mast choices cover everyday racking: 2-stage options around 121–143 in for low-reach work, or a 3-stage up to 188 in when you need higher placement without sacrificing maneuverability.

Specifications

Brakes Disc

Maximum Fork Height 188.0 in
Standard Mast: Free Lift 62.0 in
Mast 3-Stage

Control Type EV-100LXT
Drive Motor Dual
Minimum Battery Weight 2590.0 lbs
Voltage 36.0 V

Steering Hydrostatic

Min. Aisle Right Ang Stack +LL 73.9 in
Maximum Fork Spread 36.0 in
Front Overhang 14.4 in
Tread (Front/Rear) 33.3/NA
Outside Turning Radius 59.4 in
Height To Top Overhead Guard 83.0 in
Lowered Overall Height 83.0 in
Center of Wheelbase 3.6 in
Overall Length 76.2 in
Overall Width 40.2 in
Wheelbase 52.7 in

Steer Tire Size 18 x 7 x 12.12
Drive Tire Size 18 x 7 x 12.12 in

Travel Speed Loaded 8.4 mph
Load Center 24.0 in
Capacity 3000.0 lbs

Current Promotions

Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.

Learn More

Specifications and images may vary in accuracy.

Data Powered By EquipmentWatch
