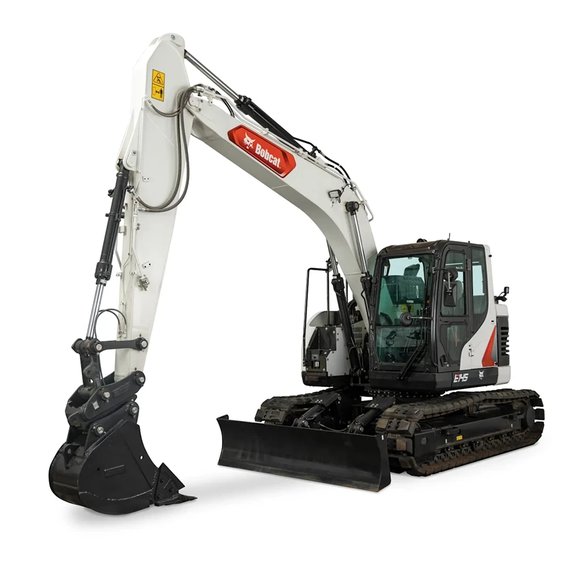

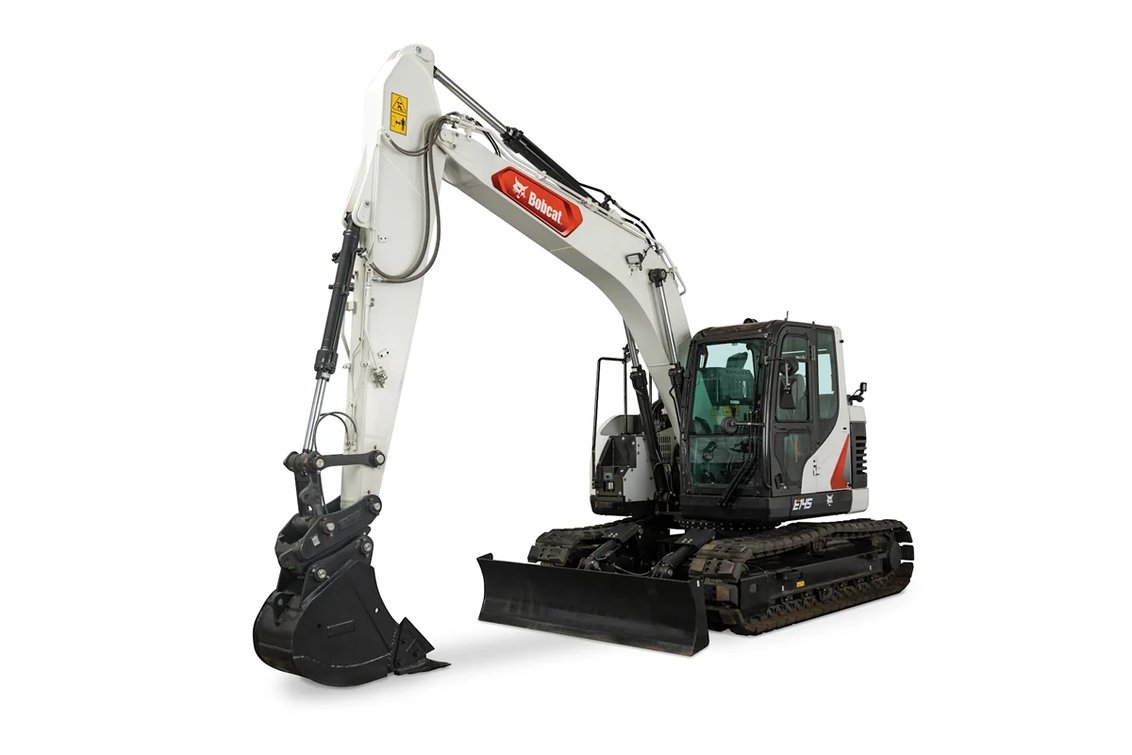

Bobcat E145 Crawler Excavator
Bobcat's E145 is a large crawler excavator in the 14–16-ton class size. As one of Bobcat's largest machines, this excavator matches power with the comfort, versatility, and productivity that Bobcat is known for. Added comfort features on the E145 include generous floor space, a pressurized cab with sound-isolating seal, heated seat, side and rear-view cameras and automotive-style heating and air conditioning. This machine is easy to service with wide-open access panels, a hinged belly pan and centralized grease banks to make essential daily maintenance quick and easy.
Specifications
| Operator Protection | Cab Enclosure (Standard) |
| Operating Weight | 34987.0 lbs |
| Tail Swing Type | Reduced Tail Swing |
| Overall Width | 101.0 in |
| Overall Height | 123.0 in |
| Overall Length | 288.0 in |
| Horsepower | 115.0 hp |
| Engine Make & Model | Perkins 1204F |
| Emissions Tier | Tier 4 / Non-DPF |
| Fuel Tank Capacity | 55.0 gal |
| Arm Length (standard) | 118.1 in |
| Max Digging Depth | 235.2 in |
| Max Reach at Ground Level | 334.8 in |
| Max Dumping Height | 278.4 in |
| Bucket Breakout Force | 24471.0 lbf |
| Stick Digging Force | 13228.0 lbs |
| Max Main Pump Flow | 30.1 gal/min |
| Track Shoe Width | 24.0 in |
| Ground Pressure | 6.0 psi |
