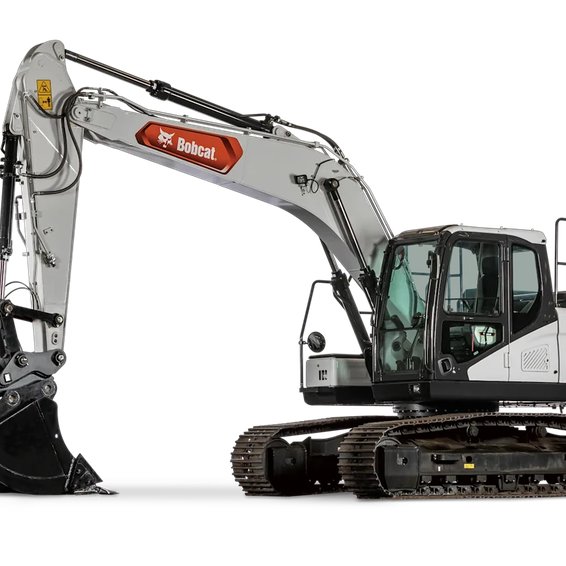

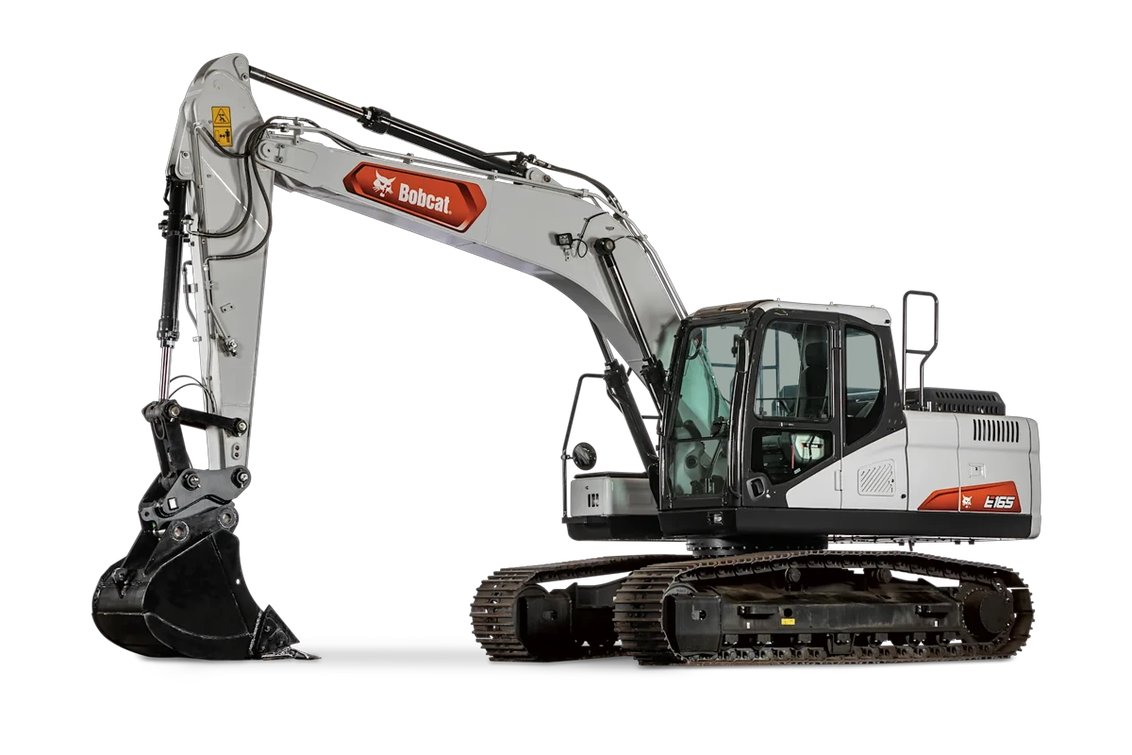

Bobcat E165 Crawler Excavator

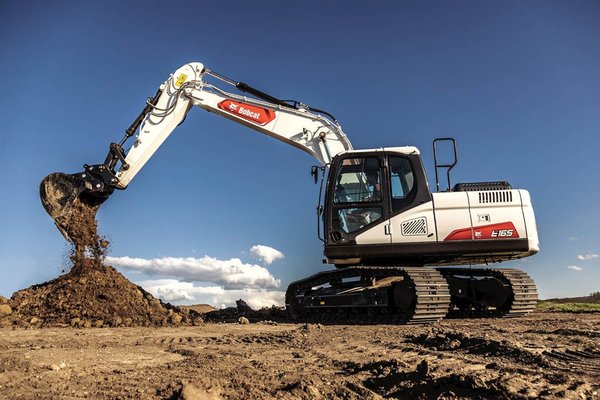

Overcome the toughest terrain and deepest trenches with the Bobcat E165. Delivering a massive 25,794 lbf of bucket digging force and a 240-inch maximum dig depth, this 38,376 lb excavator tears through compacted earth and heavy debris, eliminating project delays and maximizing site output.
Featuring a turbocharged 131 hp engine, and a 345.6-inch ground-level reach this is one of the largest excavator in Bobcat's extensive line of machines. The E165 offers a conventional tail swing that delivers leading lift capacity, so you can pick and place heavy items with ease.
Operators also benefit from four power modes and fast cycle times, while side and rear view cameras come standard. Comfort features include a pressurized cab with sound-isolating seal, heated seat and automotive-style heating and air conditioning.
Specifications
| Operator Protection | ROPS / FOPS Enclosed Cab |
| Operating Weight | 38376.0 lbs |
| Tail Swing Type | Conventional Tail Swing |
| Overall Width | 102.0 in |
| Overall Height | 120.0 in |
| Overall Length | 325.2 in |
| Horsepower | 131.0 hp |
| Emissions Tier | Tier 4 |
| Fuel Tank Capacity | 77.1 gal |
| Max Digging Depth | 240.0 in |
| Max Reach at Ground Level | 345.6 in |
| Max Dumping Height | 255.6 in |
| Bucket Breakout Force | 25794.0 lbf |
| Stick Digging Force | 18077.0 lbs |
| Max Main Pump Flow | 80.4 gal/min |
