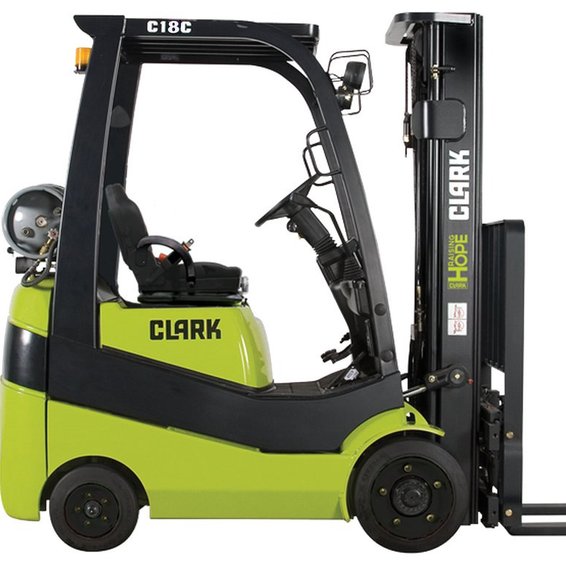

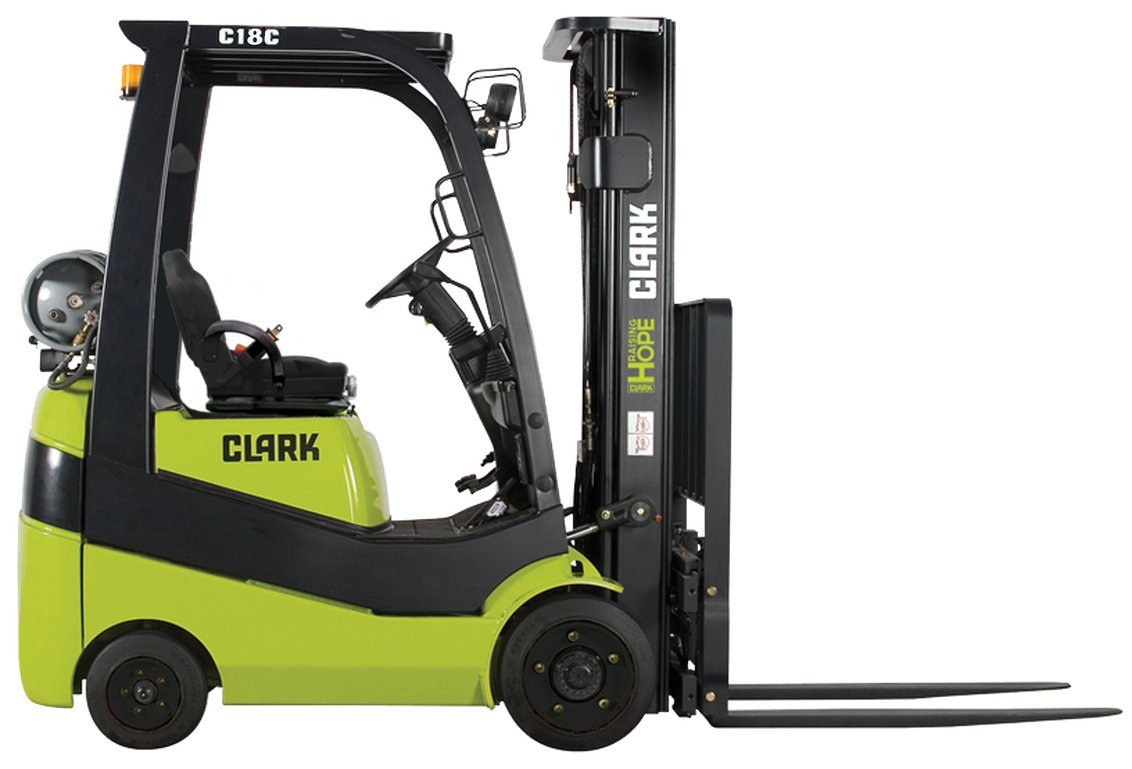

Clark C18C IC Cushion Forklift

New Equipment

The CLARK C18C is a compact IC cushion forklift built for tight indoor aisles, trailers, and dock work. It’s rated capacity is 3,500 lb and runs a Mitsubishi LPG powertrain for smooth performance. Agility is a highlight with a 77.6-in outside turning radius, and travel speed at 10.3 mph loaded will keep things moving quickly in narrow staging.

Common mast packages include a 2-stage to 129-in for low/medium racking, with 3-stage options reaching higher when needed.

The CLARK 20sC series of forklifts are powerful workhorses that can tackle even the most demanding operations with ease. To learn more about CLARK's range of forklifts, contact your local Westerra Equipment for more details.

Request a Quote

Specifications

Brakes	Drum

Power Mode	LPG
Engine Manufacturer	Mitsubishi
Cylinders/Displacement	122.0
Engine	4G63
Horsepower	52.0 hp
Torque @ RPM	101.0 ft-lb

Standard Mast: Free Lift	4.3 in
Lowered Overall Height	83.0 in
Mast	3-Stage
Maximum Fork Height	188.0 in

Steering	Hydrostatic

Transmission	Powershift
Number of Speeds	1F/1R

Overall Width	37.0 in
Wheelbase	48.0 in
Overall Length	81.8 in
Tread (Front/Rear)	31.1/32.4
Center of Wheelbase	5.0 in
Fork Size (T x W x L)	1.5 X 4 X 42 in
Front Overhang	14.9 in
Height to Top Overhead Guard	81.1 in
Maximum Fork Spread	33.0 in
Minimum Aisle Right Ang Stack	87.4 in

Steer Tire Size	14 x 4.5 x 8
Drive Tire Size	18 x 6 x 12.125

Lift Capacity	3500.0 lbs
Gradeability Loaded @ 1 mph	38.6 percent
Maximum Drawbar Pull	3785.0 lbs
Travel Speed Loaded	10.5 mph
Load Center	24.0 in
Max Fork Height Rated Capacity	188.0 in
