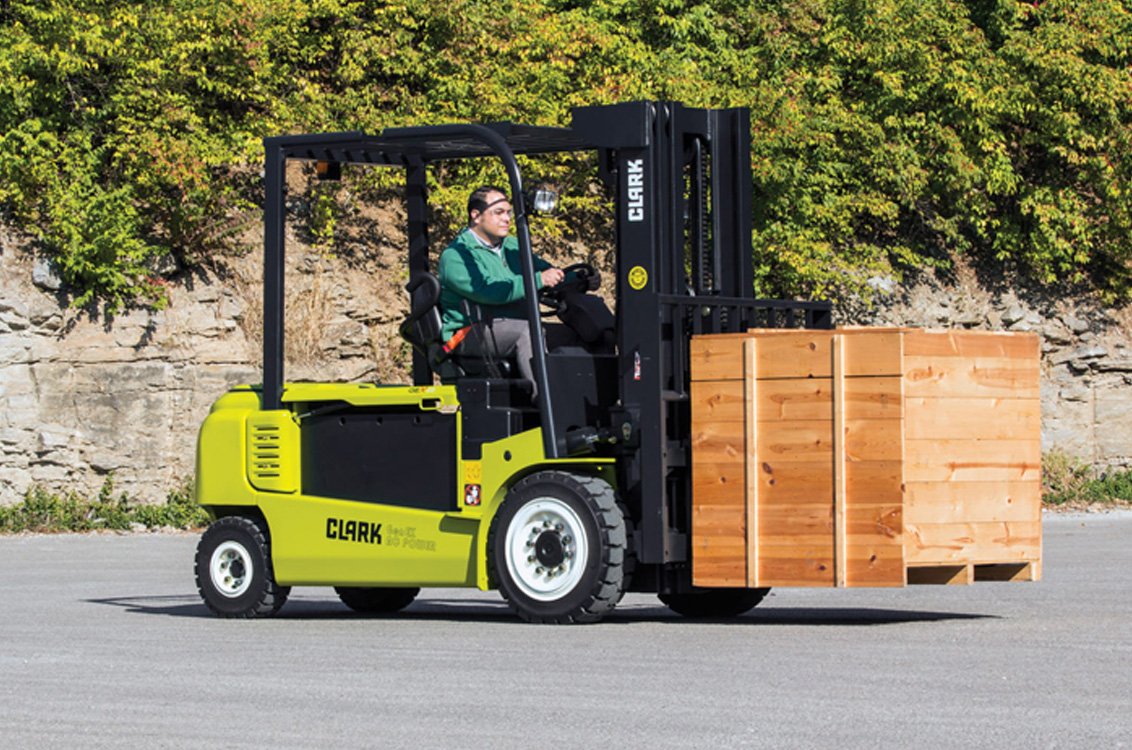

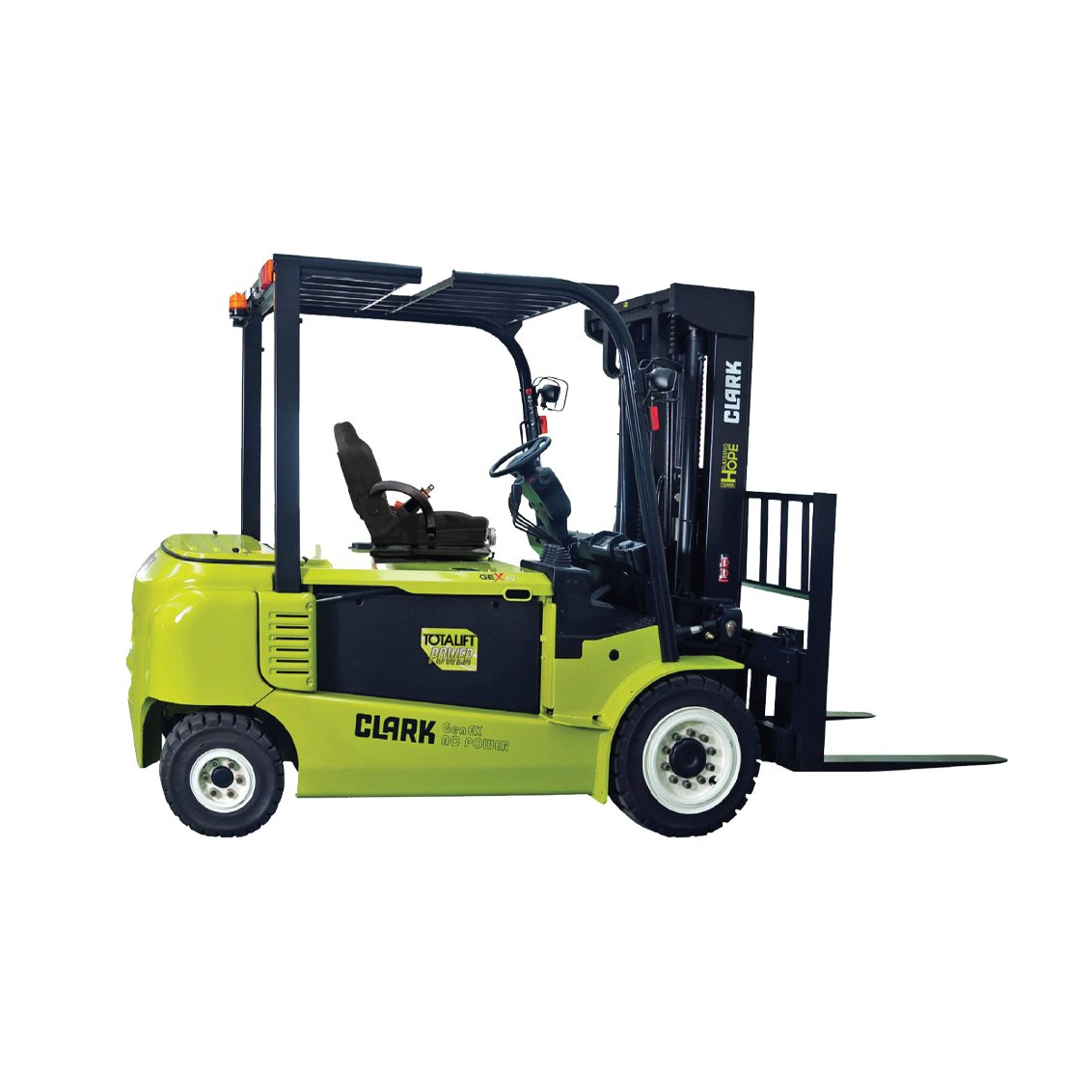

Clark GEX40 Electric Rider Pneumatic Forklift
Experience the ultimate crossover machine with the Clark GEX40, a heavy-duty 80-volt electric forklift that completely eliminates the need for separate indoor and outdoor fleets. Boasting an 8,000-pound lift capacity, this powerful workhorse utilizes 100% AC motors and an aggressive 34% gradeability to rival the acceleration and speed of a traditional internal combustion truck, all while delivering clean, zero-emissions performance.
Equipped with solid pneumatic tires, enclosed motors, and wet disc brakes, the GEX40 is engineered to easily handle rugged, uneven outdoor yards before transitioning seamlessly onto smooth indoor warehouse floors. When configured with the maximum Triple Stage Upright (TSU), operators can confidently elevate heavy loads to a towering 275 inches, supported by hydraulic cushioning valves that guarantee silent staging and reduced vibration during every lift.
Specifications
| Lift Capacity | 8000.0 lbs |
| Up to Max Lift Height | 275.0 in |
| Free Lift | 74.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard (Triple Stage & Hi-Lo Optional) |
| Steering Type | Hydrostatic |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 15477.0 lbs |
| Overall Width | 55.0 in |
| Overall Length (to Fork Face) | 116.7 in |
| Overhead Guard Height | 90.9 in |
| Turning Radius | 105.3 in |
| Max Travel Speed | 13.0 mph |
| Max Gradeability | 34.0 % |
| Brake Type | Wet Disc |
| Max Lift Speed | 93 fpm |
| Front Tire Size | 9.8 - 15 |
| Rear Tire Size | 21 x 8 - 9 |
| Tire Type | Solid Pneumatic |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 80 V |
