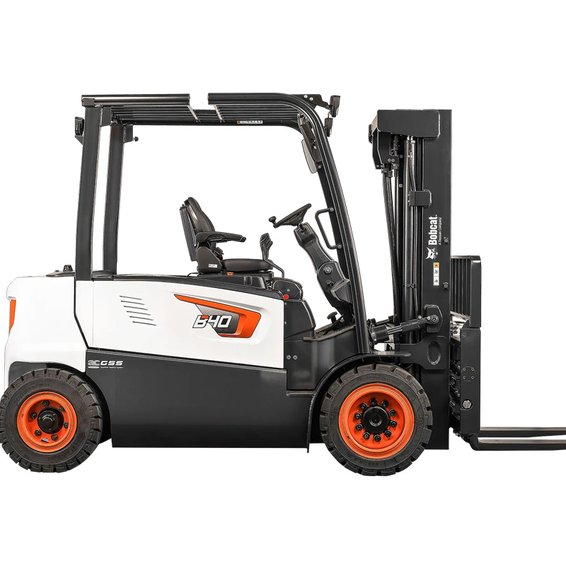

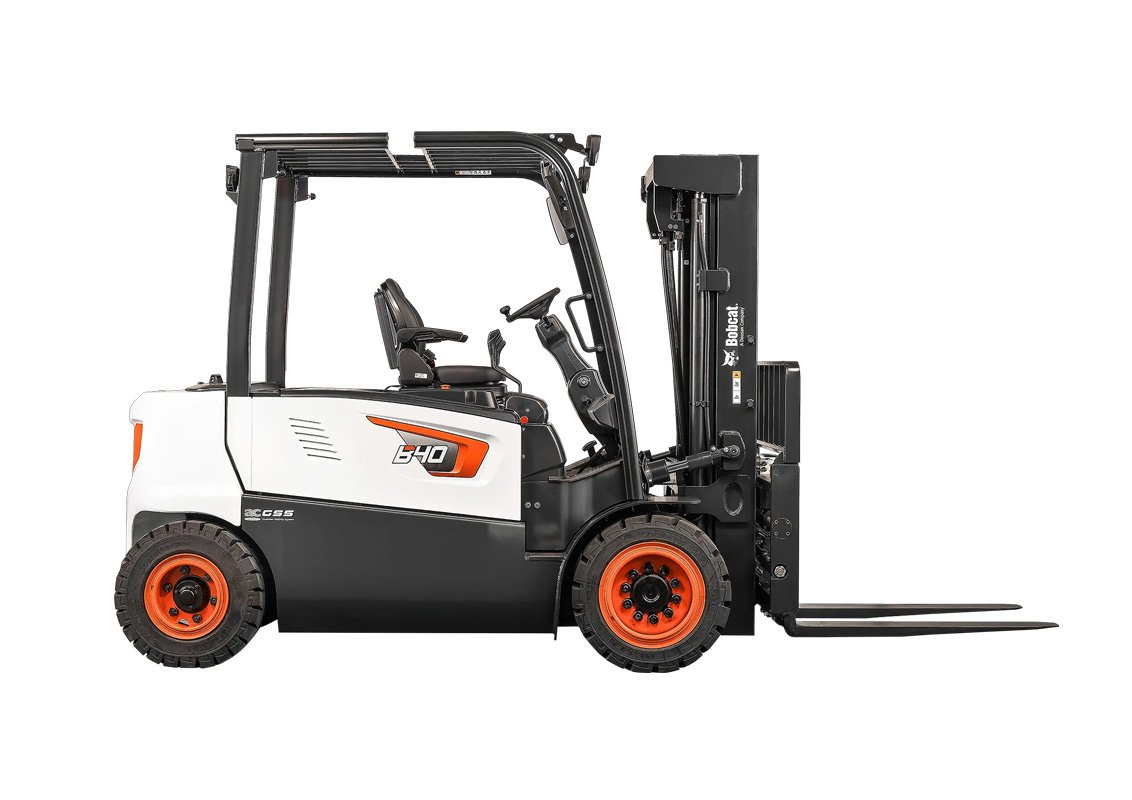

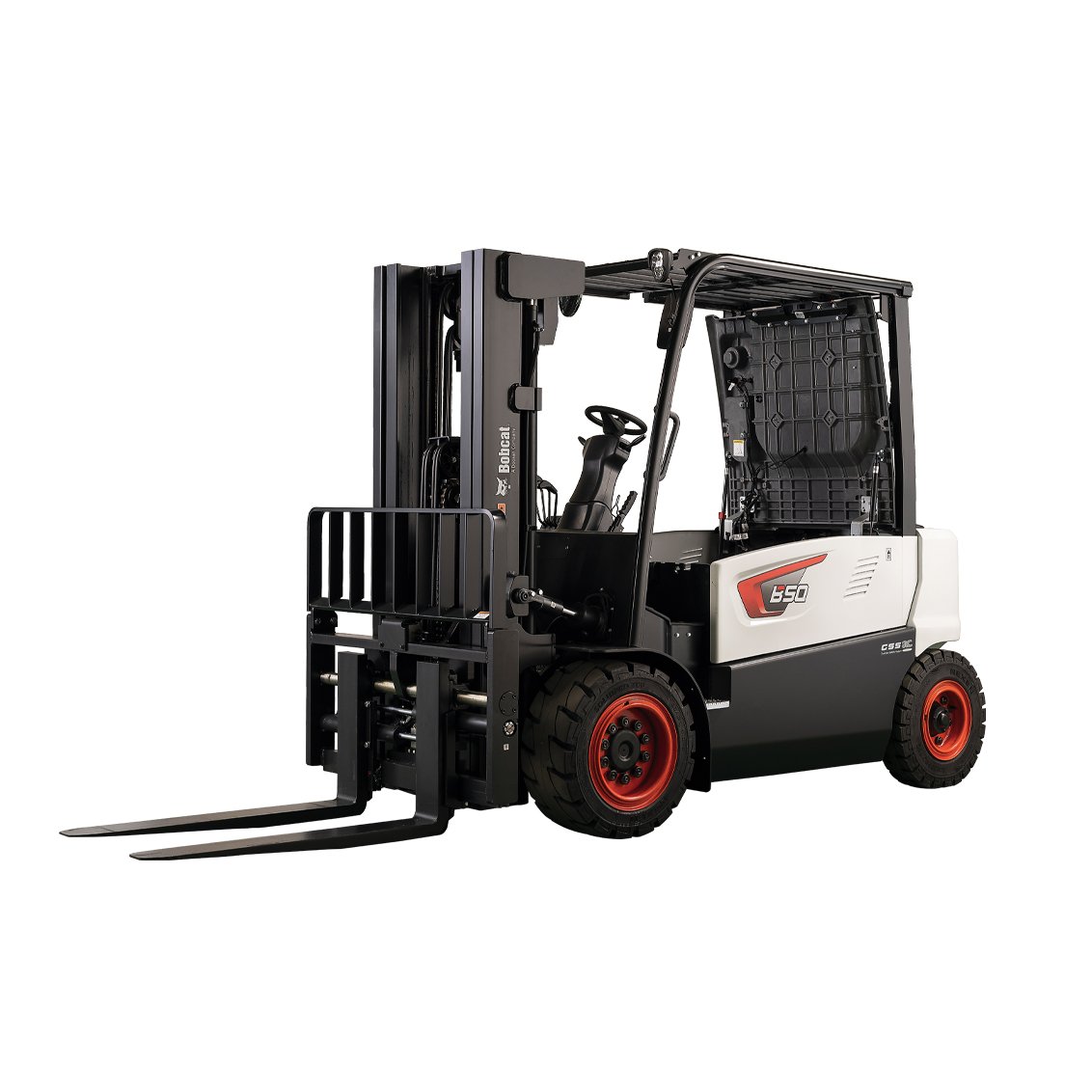

Bobcat B40X-7 Electric Pneumatic Forklift
Step up to true heavy-duty performance with the Bobcat B40X-7, a formidable 4-wheel electric forklift boasting an 8,000-pound lift capacity. This robust machine relies on a massive 80V power plant and high-output AC motors to haul massive loads, such as raw lumber, steel, and heavy manufacturing components, with the smooth, emission-free operation your facility demands.
Designed to take a beating so your operators don't have to, the B40X-7 features a heavily reinforced overhead guard, IP43-rated enclosed motors, and IP65-rated sealed controllers to shut out harsh weather and airborne debris. Down-time is kept to an absolute minimum thanks to Bobcat's industry-leading Oil-Cooled Disc Brakes (OCDB), which easily outlast traditional shoe brakes. Operators also gain complete command of the floor with an ergonomic suspension seat, a reliable hand-actuated mechanical parking brake, and programmable drive settings to match the pace of your specific operation.
Specifications
| Lift Capacity | 8000.0 lbs |
| Up to Max Lift Height | 129.9 in |
| Free Lift | 6.3 in |
| Load Centre | 24.0 in |
| Mast Type | Standard Two-Stage (FF and FFT Optional) |
| Steering Type | Power Steering |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 15459.0 lbs |
| Overall Width | 57.9 in |
| Overall Length (to Fork Face) | 157.8 in |
| Overhead Guard Height | 92.3 in |
| Turning Radius | 103.2 in |
| Max Travel Speed | 9.9 mph |
| Max Gradeability | 25.0 % |
| Brake Type | Oil-Cooled Disc Brakes (OCDB) / Hand-Mechanical Parking Brake |
| Max Lift Speed | 92.5 fpm |
| Front Tire Size | 250 - 15 |
| Rear Tire Size | 7 - 12 |
| Tire Type | Pneumatic / Solid (Super-elastic) |
| Power Mode | Electric |
| Voltage | 80 V |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
