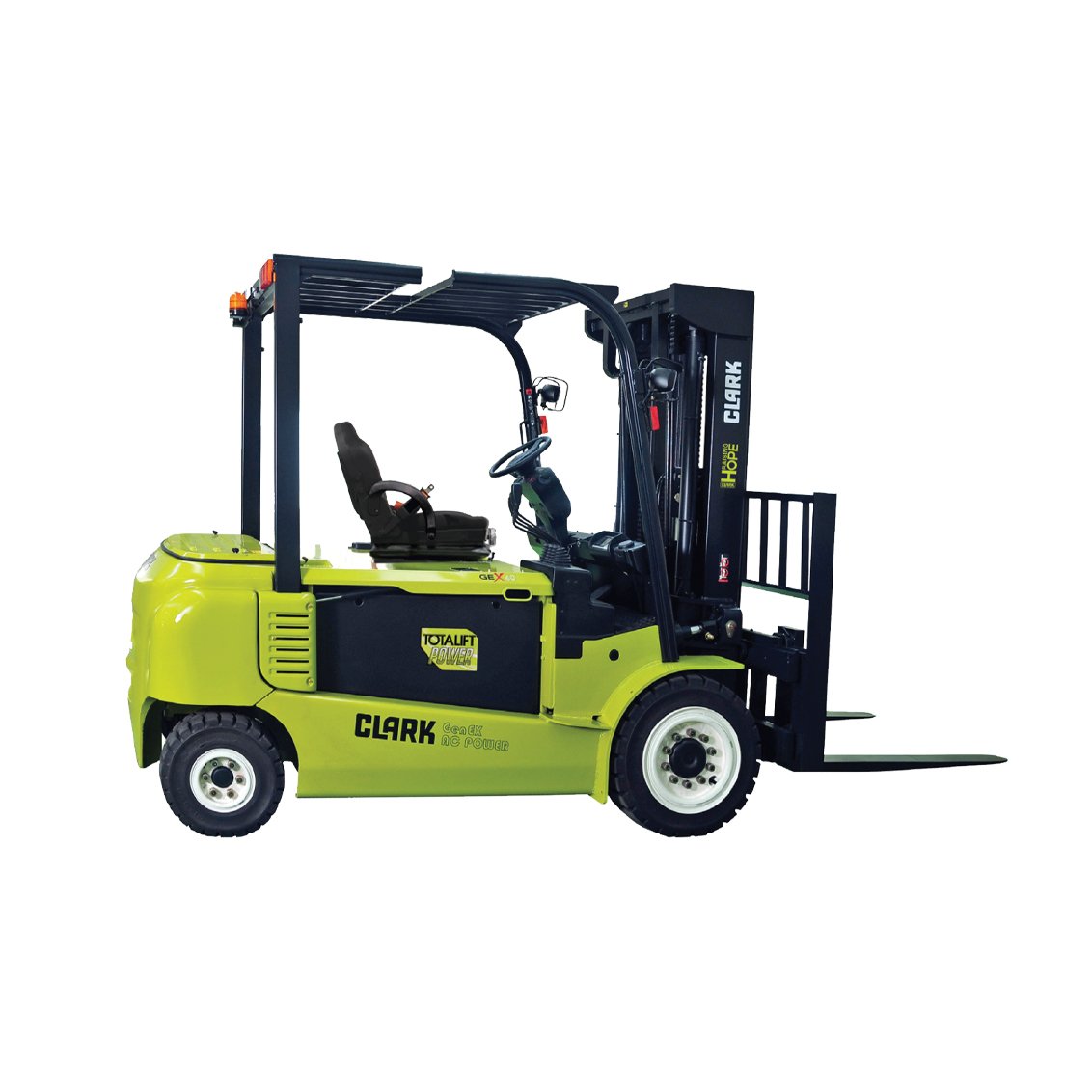

Clark GEX50 Electric Rider Pneumatic Forklift
Dominate your heaviest material handling operations with the flagship Clark GEX50, an exceptional 80-volt heavy-duty electric forklift built to completely replace traditional internal combustion trucks. Engineered with a massive 10,000-pound lift capacity and an extra-wide stance, this zero-emissions powerhouse provides outstanding lateral stability when lifting and lowering maximum loads across mixed indoor and outdoor environments.
The GEX50 delivers uncompromising performance, utilizing dual independent front-drive AC motors and an aggressive 31% gradeability to maintain peak travel and lifting speeds. Designed to conquer rough paved yards before transitioning onto warehouse floors, it features rugged solid pneumatic tires, enclosed brushless motors, and oil-cooled wet disc brakes for maximum uptime and minimum component wear. When equipped with the top-tier Triple Stage Upright (TSU), it safely lifts heavy loads up to 275 inches, relying on hydraulic cushioning valves to eliminate vibration and preserve product integrity.
Specifications
| Lift Capacity | 10000.0 lbs |
| Up to Max Lift Height | 275.0 in |
| Free Lift | 74.0 in |
| Load Centre | 24.0 in |
| Mast Type | Standard (Triple Stage & Hi-Lo Optional) |
| Steering Type | Hydrostatic |
| Operator Protection | Standard Overhead Guard |
| Operating Weight | 17439.0 lbs |
| Overall Width | 55.0 in |
| Overall Length (to Fork Face) | 118.1 in |
| Overhead Guard Height | 90.9 in |
| Turning Radius | 106.3 in |
| Max Travel Speed | 11.8 mph |
| Max Gradeability | 31.0 % |
| Brake Type | Wet Disc |
| Max Lift Speed | 93 fpm |
| Front Tire Size | 12.5 - 15 |
| Rear Tire Size | 21 x 8 - 9 |
| Tire Type | Solid Pneumatic |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 80.0 |
