New Equipment

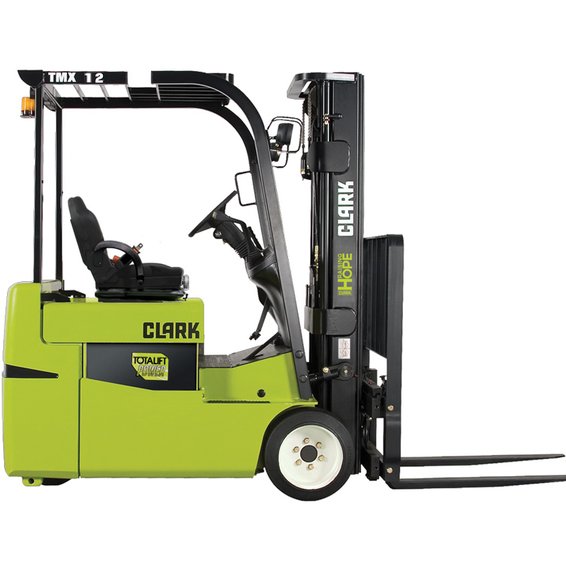

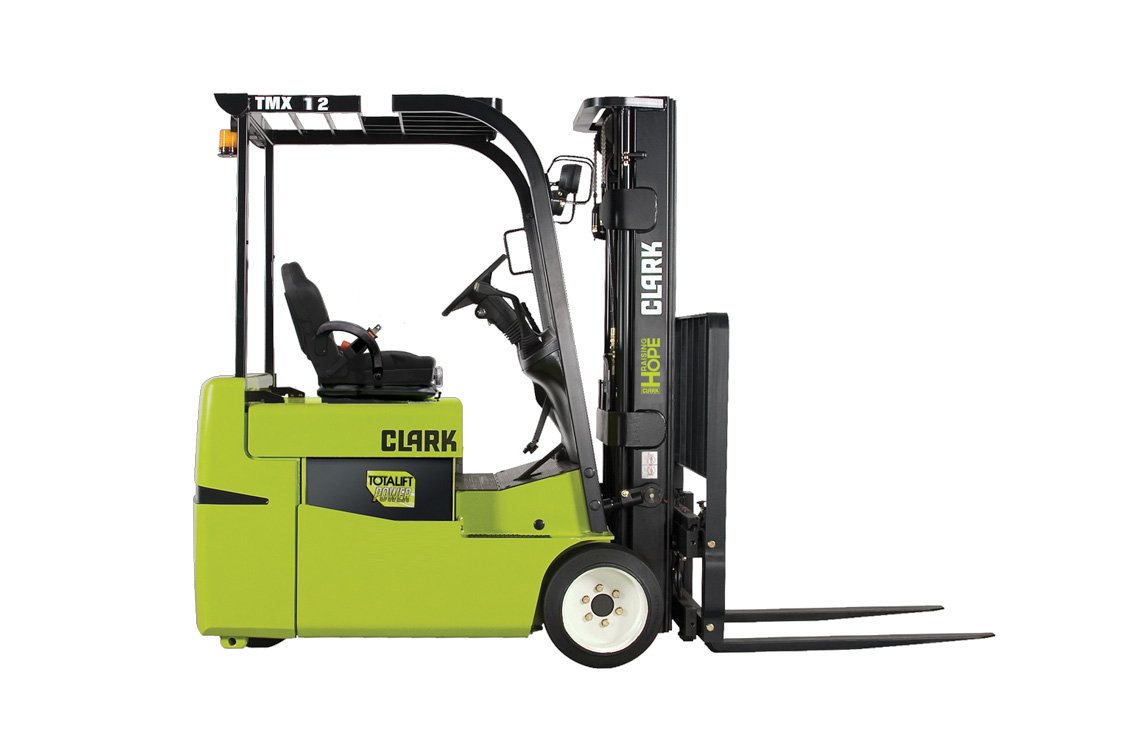

Clark TMX 12 Electric Rider Cushion Forklift

The CLARK TMX 12 is a three-wheel, sit-down electric cushion forklift built for tight indoor aisles, trailers, and dock work. It runs on a 36 or 48-V, 100% AC system for smooth, low-maintenance performance, and carries 2.500 lb at a 24 in load centre. Common mast choices cover everyday racking: 2-stage options around 121–143 in for low-reach work, or a 3-stage up to 188 in when you need higher placement without sacrificing maneuverability.

Specifications

Brakes Disc

Maximum Fork Height 188.0 in
Standard Mast: Free Lift 59.0 in
Mast 3-Stage

Control Type AC Control
Drive Motor Dual AC
Minimum Battery Weight 1650.0 lbs
Plug Type SB-350 Gray/Blue
Cable Connection Position A
Cable Length 18.0 ft

Steering Hydrostatic

Min. Aisle Right Ang Stack +LL 67.8 in
Maximum Fork Spread 36.0 in
Front Overhang 14.4 in
Tread (Front/Rear) 33.3/ -
Outside Turning Radius 53.4 in
Height To Top Overhead Guard 83.0 in
Lowered Overall Height 83.0 in
Center of Wheelbase 4.1 in
Overall Length 69.5 in
Overall Width 40.25 in
Wheelbase 46.0 in

Steer Tire Size 18 x 7 x 12.12
Drive Tire Size 18 x 7 x 12.12 in

Travel Speed Loaded 9.3 mph
Load Center 24.0 in
Capacity 2500.0 lbs
