Ammann ARX 23-2C Light Tandem Vibratory Roller

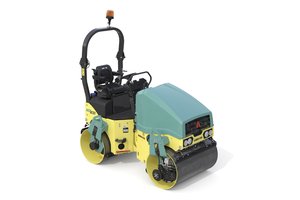

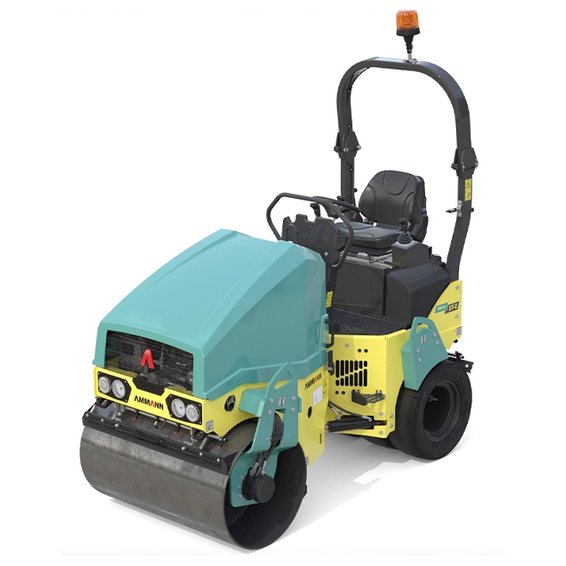

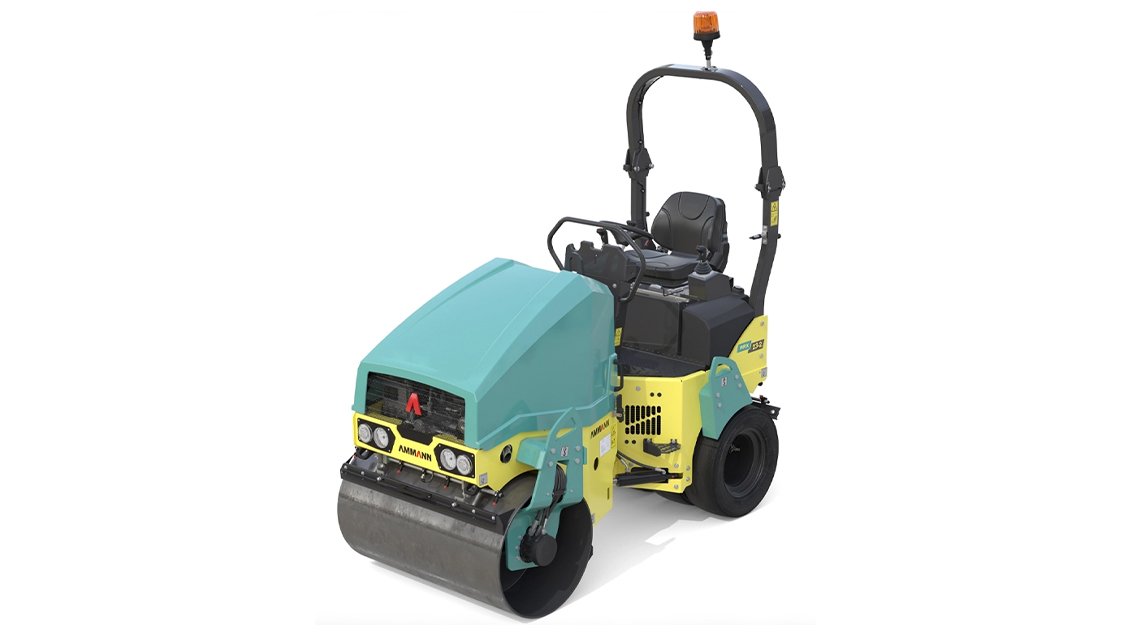

The Ammann ARX 23-2C is a light combination roller that features a front steel drum and rear pneumatic tires, making it an excellent choice for compacting asphalt where a smooth finish and surface sealing are essential. Its compact design allows for easy operation in confined spaces such as pathways, driveways, and urban repair sites. The pneumatic tires provide a kneading effect that enhances compaction on uneven or softer surfaces, while the front drum ensures consistent pressure and coverage. With user-friendly controls and reliable performance, the ARX 23-2C is ideal for contractors who need both versatility and a high-quality finish in smaller-scale compaction projects.
Specifications
Emissions Tier | Tier 4 Final |
Horsepower | 33.5 hp |
Power Mode | Diesel |
Engine Model | D1803-CR |
Engine Manufacturer | Kubota |
Fuel Tank Capacity | 9.2 gl |
Water Tank Capacity | 50.2 gl |
Operating Weight | 4597.0 lbs |
Maximum Operating Weight | 5038.0 lbs |
Drum Width | 39.4 in |
Travel Speed | 6.8 mph |
Turning Radius - Inside | 98.4 in |
Centrifugal Force l | 6744.0 lbf |
Centrifugal Force ll | 8093.0 lbf |
