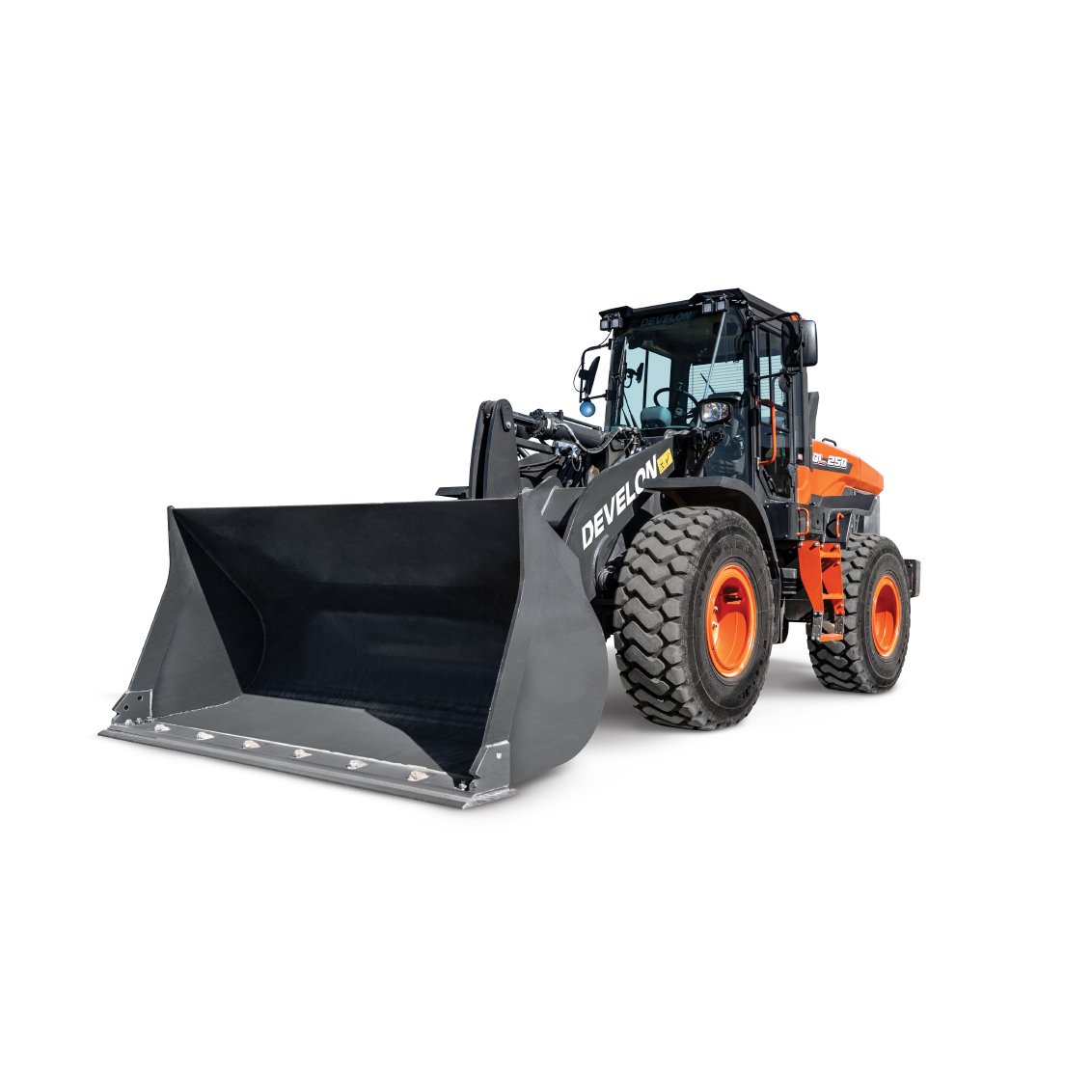

DEVELON DL250-7 Wheel Loader

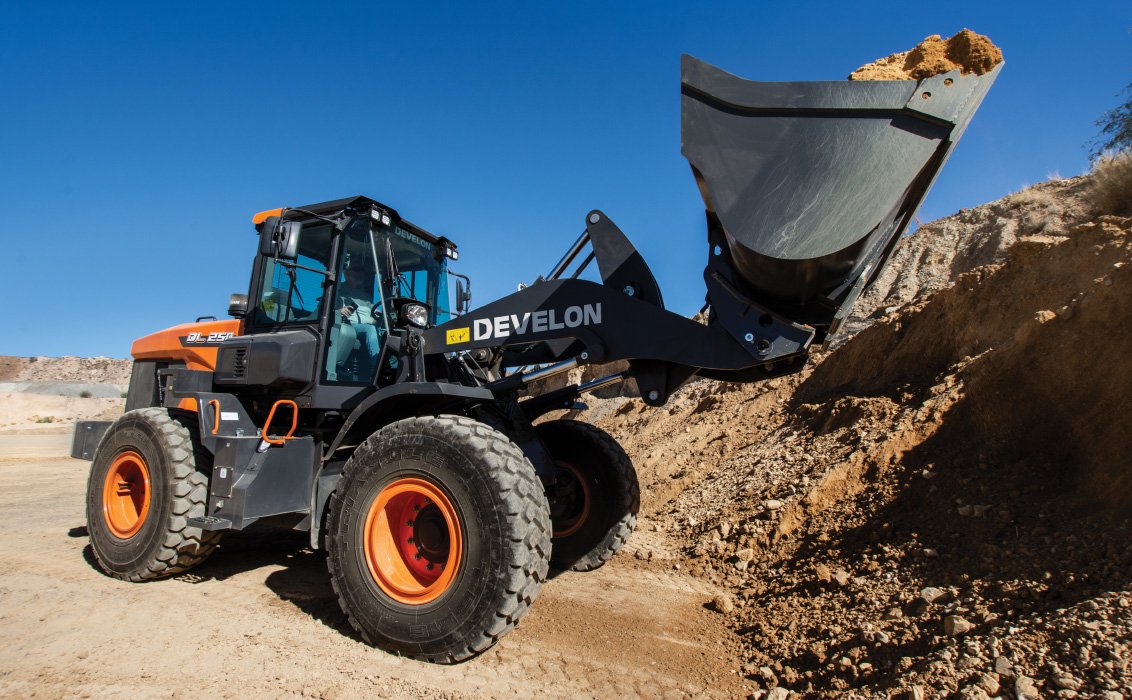

DEVELON DL250-7 Wheel Loader hauling dirt

New Equipment

The DEVELON DL250-7 wheel loader is engineered to provide superior performance and reliability for demanding construction, agricultural, and material handling applications. Powered by a robust DEVELON DL06 engine delivering 171.6 net horsepower, this machine ensures efficient operation across a variety of tough job sites. With a standard operating weight of 30,527 lbs, the DL250-7 offers operators a stable and highly capable platform for heavy-duty daily tasks.

Designed to optimize loading efficiency, the DL250-7 features a standard bucket capacity of 3.3 yd³, allowing operators to move more material in fewer passes. The machine boasts a straight static tipping load of 23,973 lbs, ensuring exceptional lifting stability when handling heavy materials. Furthermore, its impressive maximum dump clearance of 110.0 inches allows for quick and seamless loading into haul trucks and high-sided hoppers.

Request a Quote

Specifications

Operator Protection	ROPS/FOPS

Operating Weight	30527.0 lbs
Overall Length (with Bucket on ground)	297.5 in
Overall Width (over tires)	99.9 in
Overall Height (to top of cab/ROPS)	151.7 in
Wheelbase	120.1 in
Ground Clearance	17.1 in
Turning Radius (Outside Bucket)	238.9 in

Horsepower	172.0 hp
Engine Make & Model	DEVELON DL06
Emissions Tier	Tier 4 Final (T4f)
Fuel Tank Capacity	62.1 gal

Bucket Capacity	3.3 cu yd
Breakout Force	23987.0 lbs
Tipping Load (straight)	23973.0 lbs
Tipping Load (full turn)	21134.0 lbs
Height to Hinge Pin	151.6 in
Dump Clearance (@ max height)	110.0 in
Dump Reach (@ max height)	42.3 in

Max Travel Speed	23.3 mph
Auxiliary Standard Flow	40.9 gpm
Tire Size	20.5R25 L3
