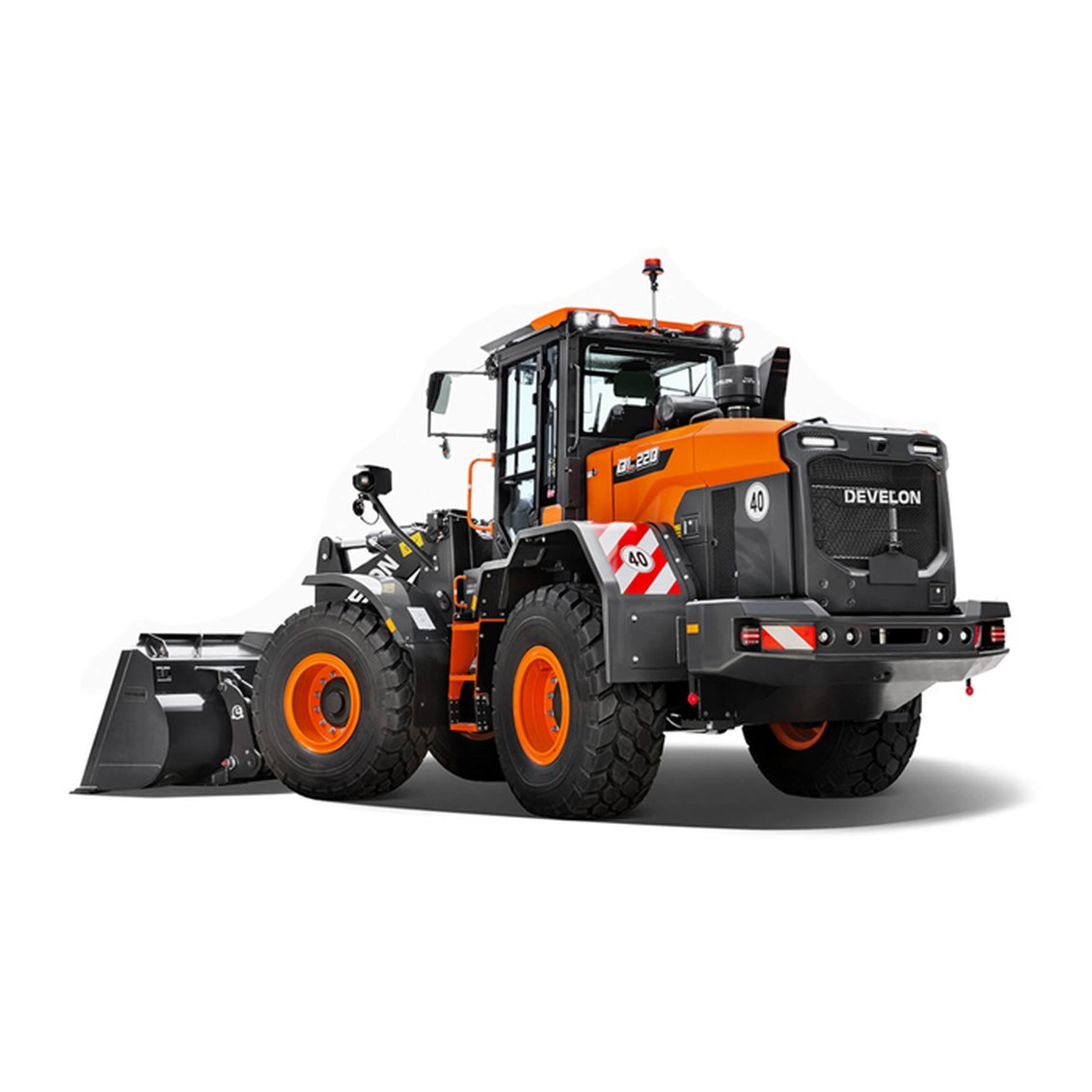

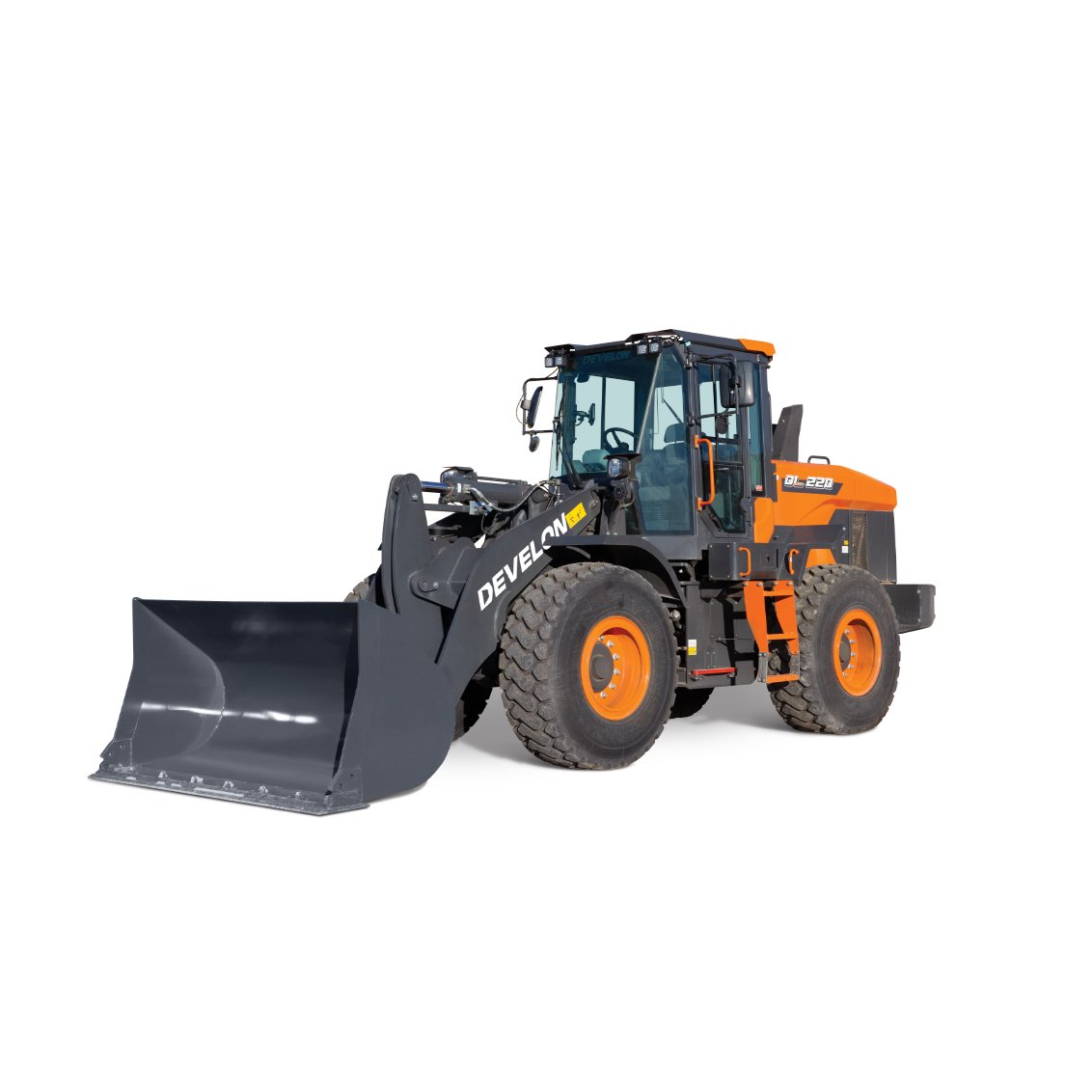

DEVELON DL220-7 Wheel Loader
The DEVELON DL220-7 wheel loader is designed to deliver robust power for construction and heavy-duty loading applications. Powered by a dependable DEVELON DL06 engine producing 159.6 net horsepower, this machine provides the necessary strength for demanding job sites. With a standard operating weight of 29,099 lbs, it ensures a stable and durable platform for extensive daily operation.

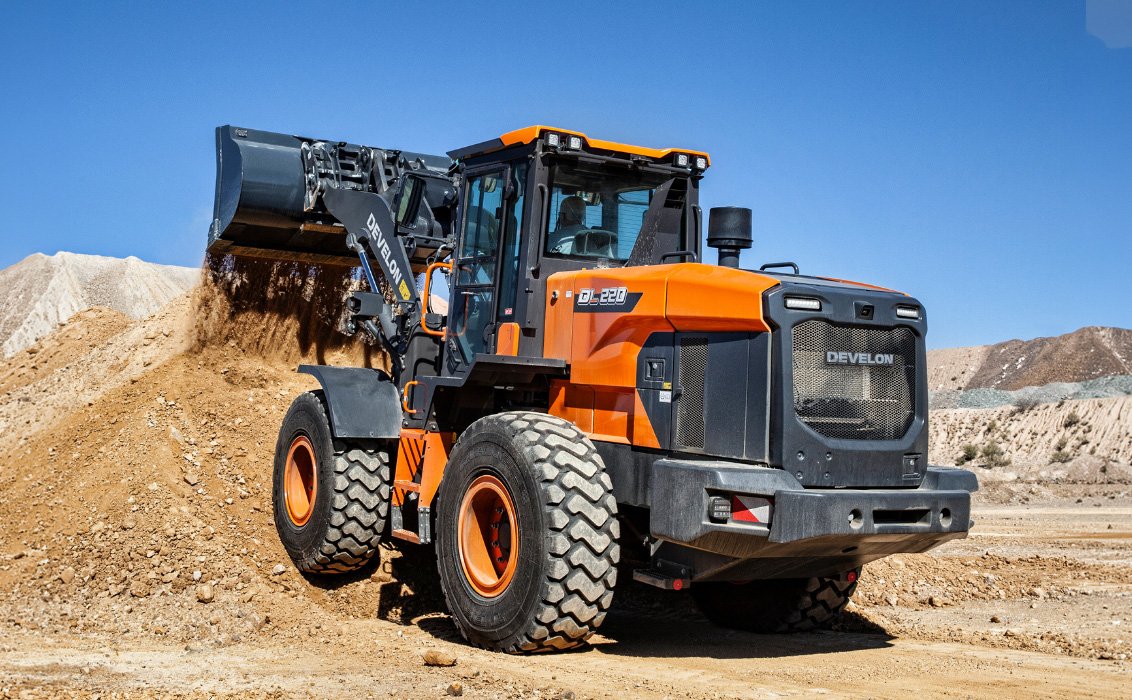

Optimized for material movement, the DL220-7 features a standard bucket capacity of 3.0 yd³ to maximize productivity. The loader provides excellent lifting capabilities with a straight static tipping load of 23,210 lbs. Operators can efficiently load trucks and hoppers thanks to a maximum dump clearance of 110.8 inches, ensuring fast and effective cycle times.
Specifications
| Operator Protection | ROPS/FOPS |
| Operating Weight | 29099.0 lbs |
| Overall Length (with Bucket on ground) | 297.5 in |
| Overall Width (over tires) | 99.9 in |
| Overall Height (to top of cab/ROPS) | 151.7 in |
| Wheelbase | 120.1 in |
| Ground Clearance | 17.1 in |
| Turning Radius (Outside Bucket) | 235.2 in |
| Horsepower | 160.0 hp |
| Engine Make & Model | DEVELON DL06 |
| Emissions Tier | Tier 4 Final (T4f) |
| Fuel Tank Capacity | 62.1 gal |
| Bucket Capacity | 2.8 cu yd |
| Breakout Force | 21544.0 lbs |
| Tipping Load (straight) | 23210.0 lbs |
| Tipping Load (full turn) | 20461.0 lbs |
| Height to Hinge Pin | 151.6 in |
| Dump Clearance (@ max height) | 110.8 in |
| Dump Reach (@ max height) | 42.1 in |
| Max Travel Speed | 24.2 mph |
| Auxiliary Standard Flow | 40.9 gpm |
| Tire Size | 20.5R25 L3 |
