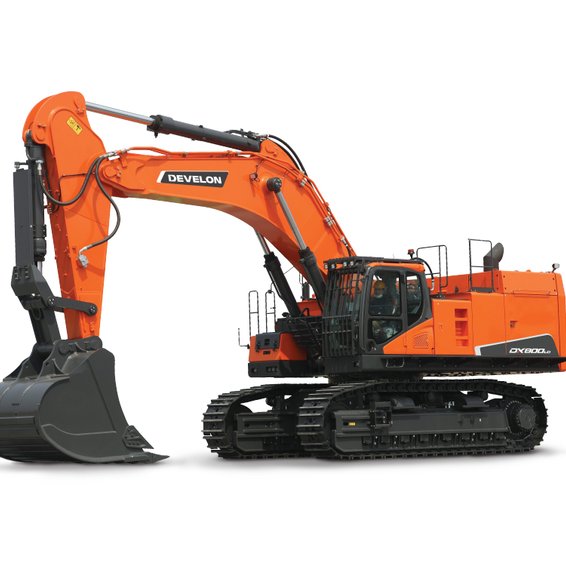

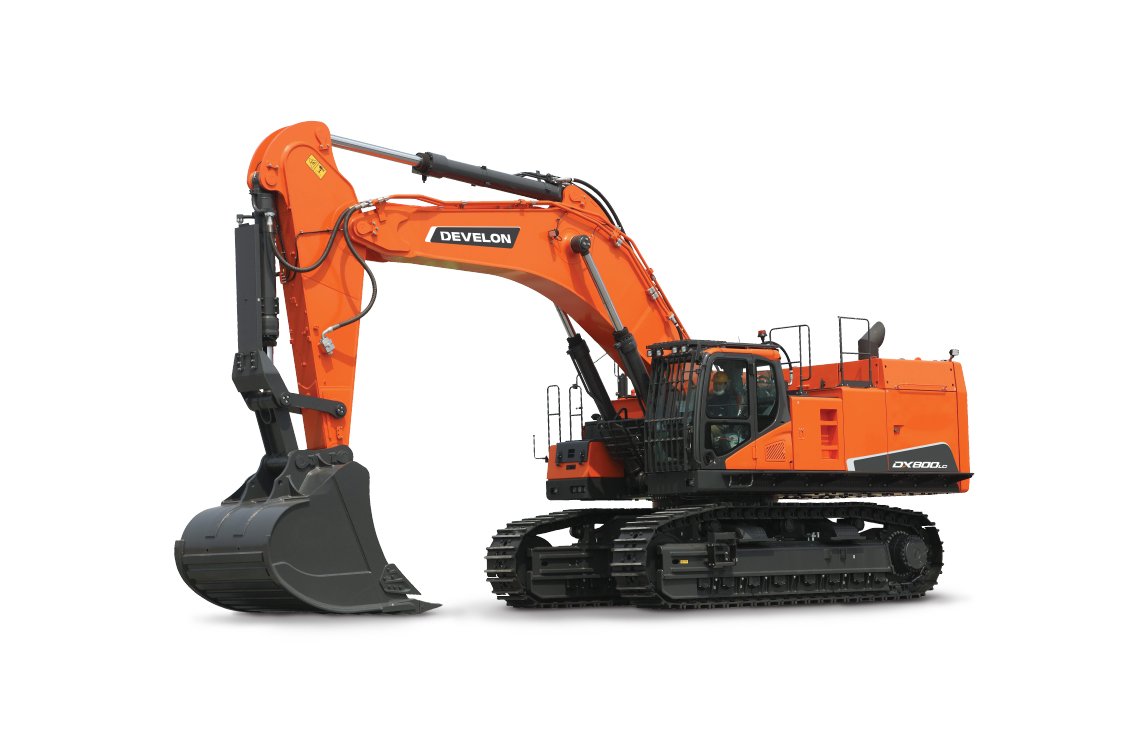

DEVELON DX800LC-7 Crawler Excavator

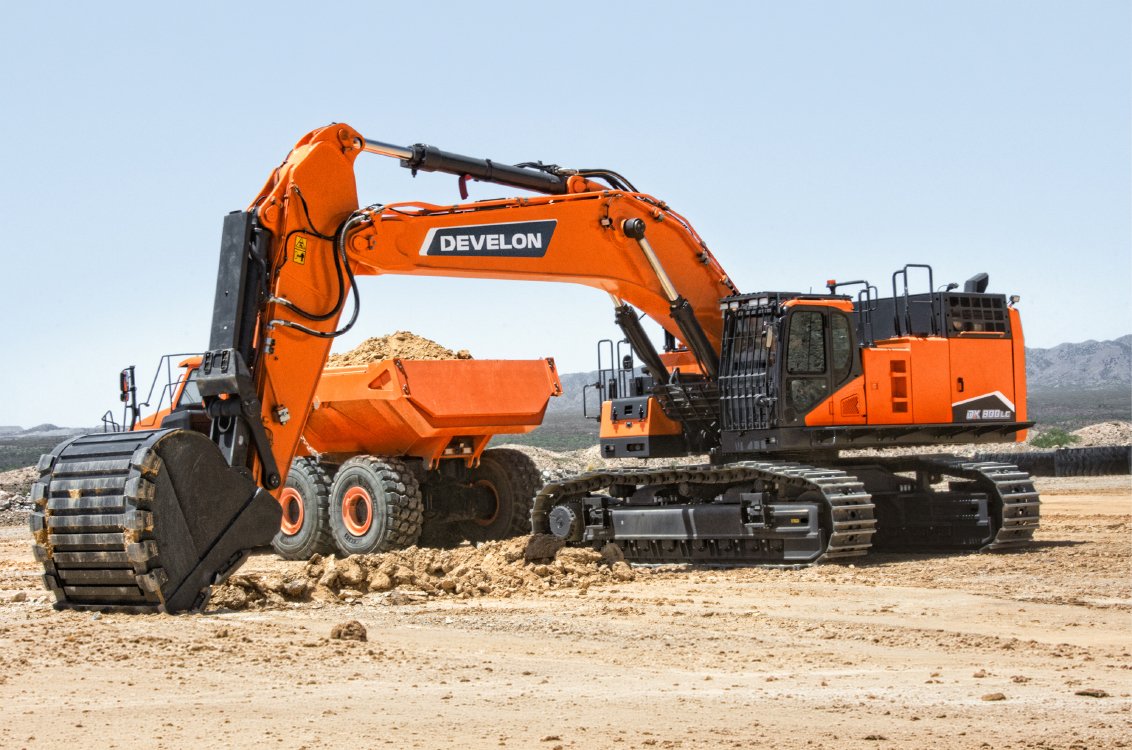

DEVELON DX800LC-7 Crawler Excavator digging then loading into an ADT

New Equipment

DEVELON DX800LC-7 Crawler Excavator

Take command of massive mining and infrastructure projects with the DEVELON DX800LC-7. Generating 539 horsepower and tipping the scales at a staggering 179,431 pounds, this colossal excavator delivers the ultimate stability for high-volume earthmoving.

Maximize your extraction rates with a dual main pump system that pushes an immense 266 gallons per minute of hydraulic flow. Yielding 84,877 pounds of bucket breakout force and a 330-inch maximum digging depth, it rapidly loads massive haulers to keep your operation highly profitable.

Request a Quote

Specifications

Operator Protection	ROPS (ISO 12117-2:2008) Enclosed Cab

Operating Weight	179431.0 lbs
Tail Swing Radius	161.4 in
Overall Width	143.7 in
Overall Height	191.5 in
Overall Length	518.3 in

Horsepower	539.1 hp
Engine Make & Model	Perkins 2506J
Emissions Tier	Tier 4 Final (T4F)
Fuel Tank Capacity	235.0 gal

Arm Length (standard)	139.8 in
Max Digging Depth	329.5 in
Max Reach at Ground Level	509.6 in
Max Dumping Height	329.9 in
Bucket Breakout Force	84877.1 lbf
Stick Digging Force	64153.9 lbs

Max Main Pump Flow	266.2 (2 x 133.1) gal/min
Track Shoe Width	35.4 in
Ground Pressure	12.5 psi
