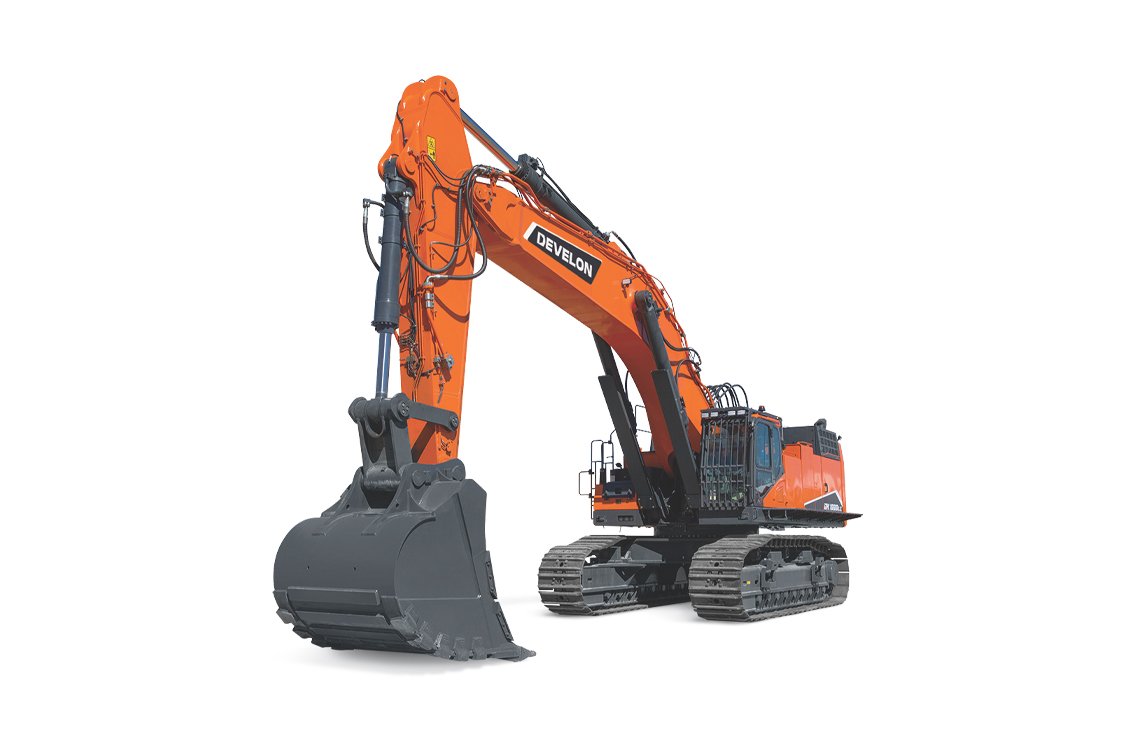

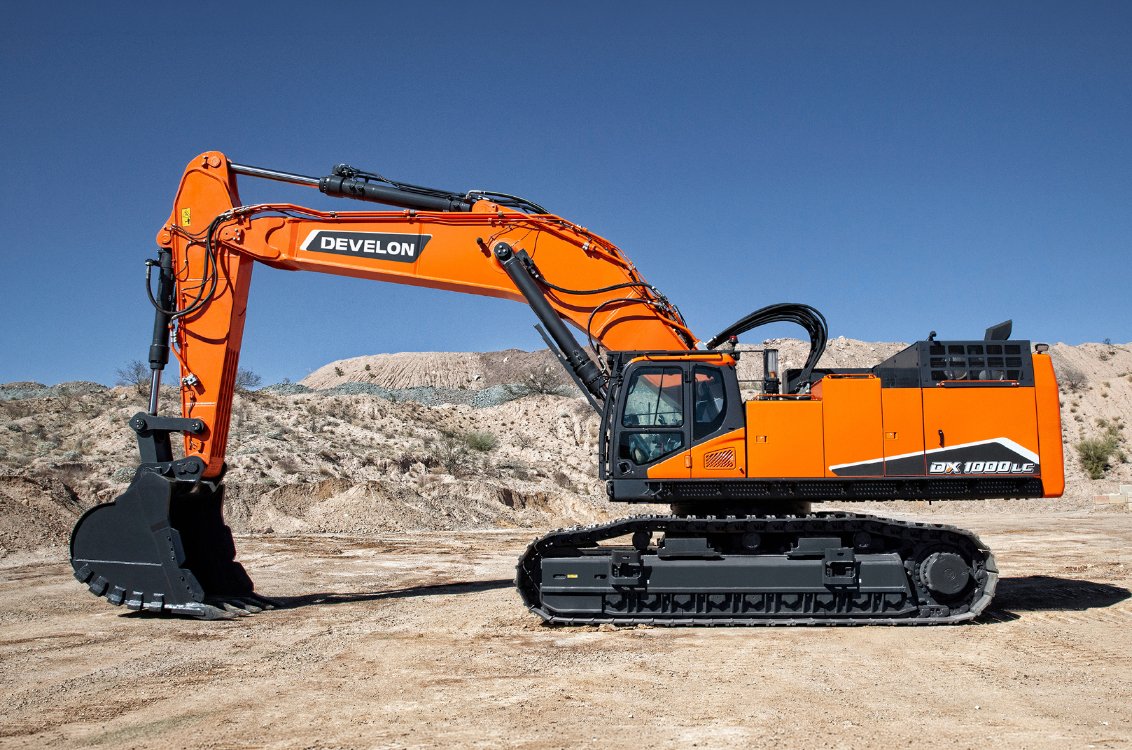

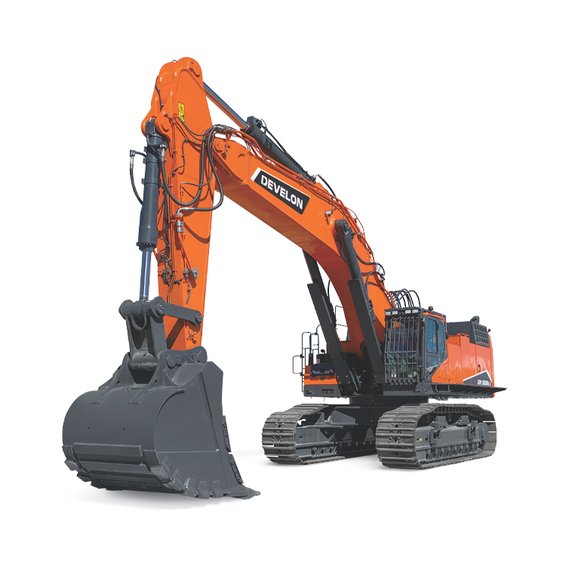

DEVELON DX1000LC-7 Crawler Excavator
Conquer the most extreme mining and mass excavation environments with the colossal DEVELON DX1000LC-7. Weighing in at 221,280 pounds and driven by a heavy-duty 629 horsepower Perkins engine, this flagship crawler excavator provides unparalleled stability and raw lifting power.
Maximize your material extraction using a triple main pump system that floods the hydraulics with nearly 415 gallons per minute of flow. Delivering a devastating 94,710 pounds of bucket breakout force and a 346-inch maximum digging depth, it rapidly loads the largest haulers to drastically accelerate your jobsite productivity.
Specifications
| Operator Protection | ROPS (ISO 12117-2:2008) Enclosed Cab |
| Operating Weight | 221280.0 lbs |
| Tail Swing Radius | 181.8 in |
| Overall Width | 146.9 in |
| Overall Height | 218.5 in |
| Overall Length | 572.8 in |
| Horsepower | 628.9 hp |
| Engine Make & Model | Perkins 2806J |
| Emissions Tier | Tier 4 Final (T4F) |
| Fuel Tank Capacity | 300.6 gal |
| Arm Length (standard) | 147.6 in |
| Max Digging Depth | 346.3 in |
| Max Reach at Ground Level | 551.2 in |
| Max Dumping Height | 371.7 in |
| Bucket Breakout Force | 94709.6 lbf |
| Stick Digging Force | 80975.0 lbs |
| Max Main Pump Flow | 414.6 (3 x 138.2) gal/min |
| Track Shoe Width | 35.4 in |
| Ground Pressure | 14.4 psi |
