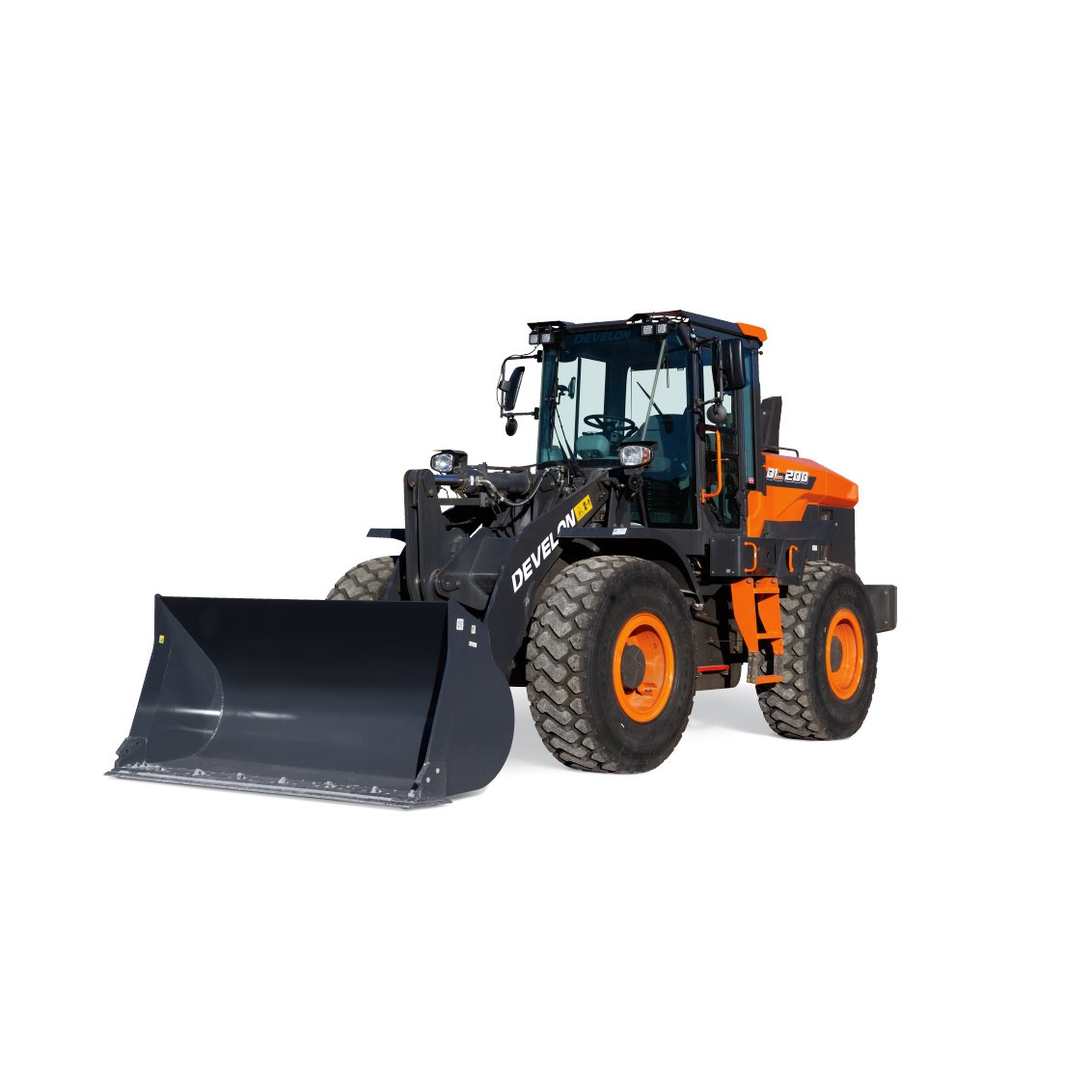

DEVELON DL200-7 Wheel Loader

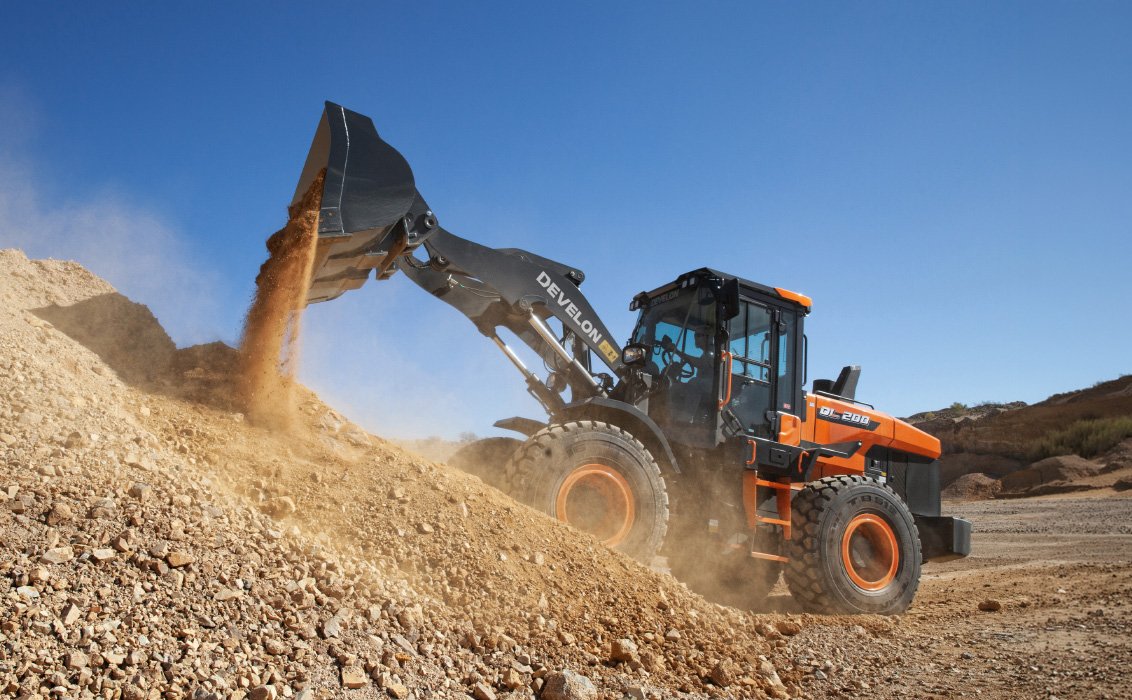

DEVELON DL200-7 Wheel Loader dumping gravel

New Equipment

The DEVELON DL200-7 wheel loader is engineered for exceptional productivity and maneuverability in construction, agriculture, and material handling applications. Driven by a dependable 142.1 hp Perkins engine, this machine delivers the precise power needed for demanding loading and carrying tasks. With a standard operating weight of 26,559 lbs, it offers operators an ideal balance of robust performance and agility across diverse job sites.

Designed to maximize material movement with every cycle, the DL200-7 features a versatile 2.6 yd³ bucket capacity. Lifting performance is optimized with a straight tipping load of 22,315 lbs, ensuring stability and safety during heavy lifting operations. When paired with haul trucks or hoppers, the loader's impressive dump clearance of 108.0 inches allows for highly efficient material loading and processing

Request a Quote

Specifications

Operator Protection	ROPS

Operating Weight	26559.0 lbs
Overall Length (with Bucket on ground)	283.8 in
Overall Width (over tires)	100.4 in
Overall Height (to top of cab/ROPS)	130.3 in
Wheelbase	117.3 in
Ground Clearance	17.1 in
Turning Radius (Outside Bucket)	229.7 in

Horsepower	142.1 hp
Engine Make & Model	Perkins 1204F
Emissions Tier	Tier 4 Final
Fuel Tank Capacity	62.1 gal

Bucket Capacity	2.6 cu yd
Breakout Force	21806.0 lbs
Tipping Load (straight)	22315.0 lbs
Tipping Load (full turn)	19705.0 lbs
Height to Hinge Pin	147.0 in
Dump Clearance (@ max height)	108.0 in
Dump Reach (@ max height)	39.6 in

Max Travel Speed	23.6 mph
Auxiliary Standard Flow	40.9 gpm
Tire Size	20.5R25 L3
