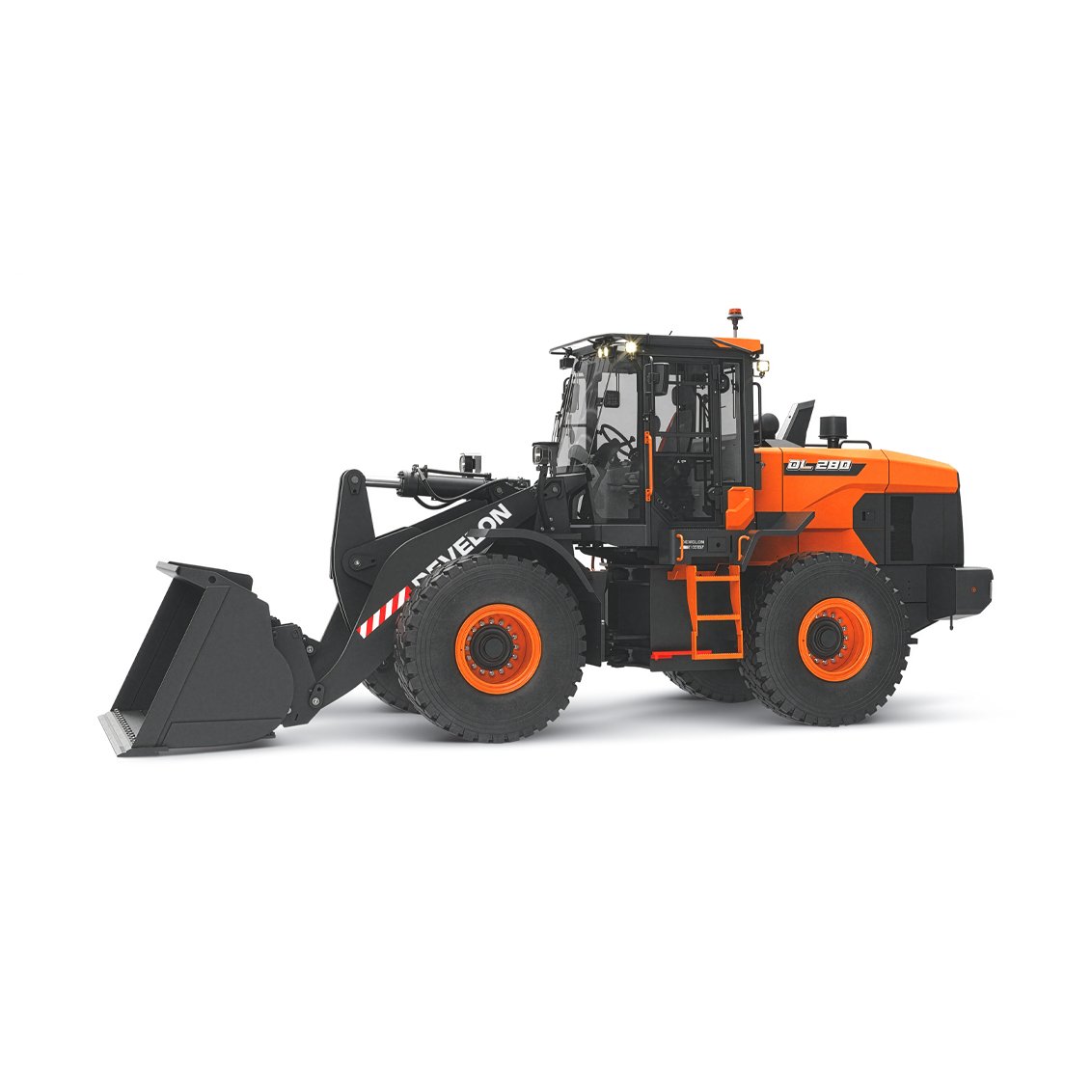

DEVELON DL280-7 Wheel Loader

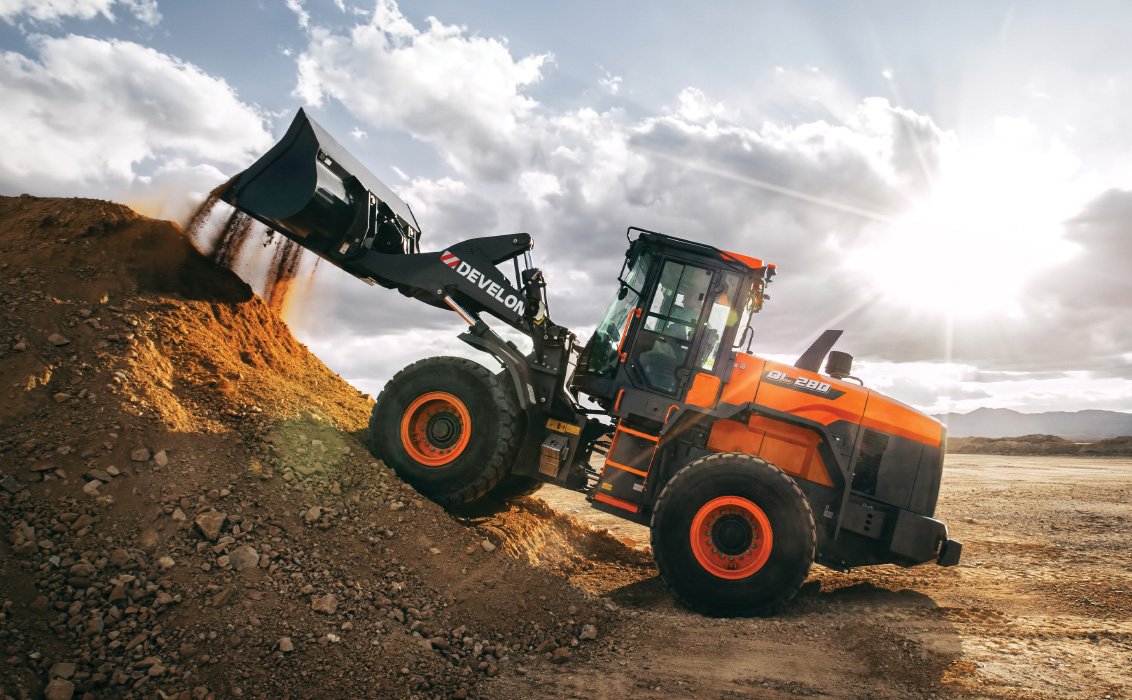

DEVELON DL280-7 Wheel Loader moving construction dirt

New Equipment

The DEVELON DL280-7 wheel loader delivers exceptional power and performance for heavy-duty material handling and construction applications. Equipped with a DEVELON DL06 engine, it generates 189.1 net horsepower to tackle demanding job sites with ease. Featuring a robust operating weight of 34,550 lbs, this loader provides the stability and durability required for rigorous daily use.

Designed for maximum efficiency, the standard 3.7 yd³ bucket capacity enables operators to move high volumes of material in fewer cycles. A formidable straight static tipping load of 27,064 lbs ensures confidence and safety during heavy lifting. Additionally, the impressive dump clearance of 111.0 inches allows for seamless loading into haul trucks and high-sided hoppers.

Request a Quote

Specifications

Operator Protection	ROPS/FOPS

Operating Weight	34552.0 lbs
Overall Length (with Bucket on ground)	301.4 in
Overall Width (over tires)	107.9 in
Overall Height (to top of cab/ROPS)	155.6 in
Wheelbase	120.0 in
Ground Clearance	15.7 in
Turning Radius (Outside Bucket)	241.9 in

Horsepower	189.0 hp
Engine Make & Model	DEVELON DL06
Emissions Tier	Tier 4 Final (T4f)
Fuel Tank Capacity	62.1 gal

Bucket Capacity	3.7 cu yd
Breakout Force	32822.0 lbs
Tipping Load (straight)	27064.0 lbs
Tipping Load (full turn)	23857.0 lbs
Height to Hinge Pin	155.6 in
Dump Clearance (@ max height)	111.0 in
Dump Reach (@ max height)	45.7 in

Max Travel Speed	22.1 mph
Auxiliary Standard Flow	65.0 gpm
Tire Size	20.5R25 L3
