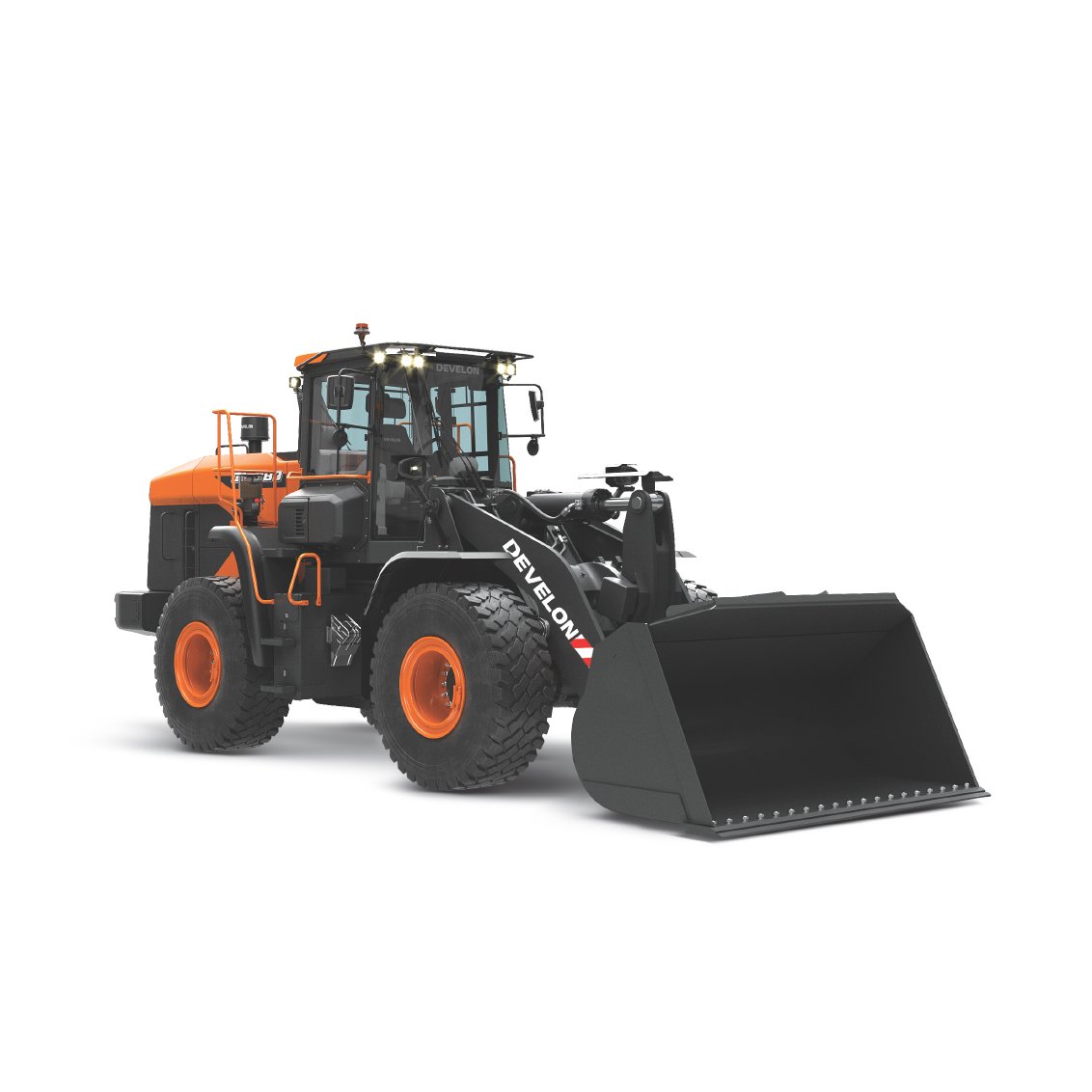

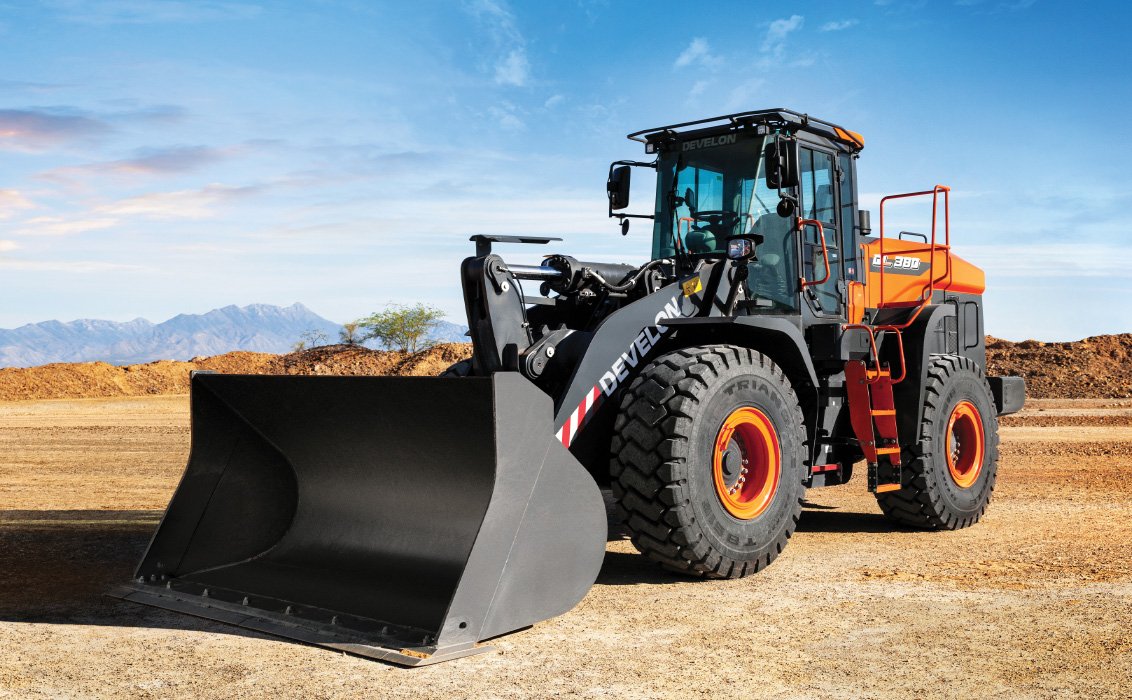

DEVELON DL380-7 Wheel Loader

New Equipment

The DEVELON DL380-7 wheel loader is built to tackle high-volume material handling, heavy construction, and aggregate loading with exceptional efficiency. Powered by a proven DEVELON DL08 engine that delivers 270.9 net horsepower, this machine effortlessly manages rigorous daily operations. With a substantial standard operating weight of 45,022 lbs, the DL380-7 provides operators with the ultimate stability and traction required for intense digging and lifting environments.

Engineered to optimize job site productivity, the DL380-7 comes equipped with a massive 5.1 yd³ standard bucket capacity, minimizing cycle times by moving more material per pass. It boasts an outstanding straight static tipping load of 36,074 lbs, ensuring a secure and balanced footprint during the heaviest lifts. The loader's maximum dump clearance of 119.7 inches further enhances its versatility, allowing for rapid and precise loading into large haul trucks or hoppers.

Request a Quote

Specifications

Operator Protection	ROPS/FOPS

Operating Weight	44919.0 lbs
Overall Length (with Bucket on ground)	326.6 in
Overall Width (over tires)	122.4 in
Overall Height (to top of cab/ROPS)	164.2 in
Wheelbase	129.9 in
Ground Clearance	15.7 in
Turning Radius (Outside Bucket)	262.0 in

Horsepower	271.0 hp
Engine Make & Model	DEVELON DL08
Emissions Tier	Tier 4 Final (T4f)
Fuel Tank Capacity	76.9 gal

Bucket Capacity	4.8 cu yd
Breakout Force	36342.0 lbs
Tipping Load (straight)	36074.0 lbs
Tipping Load (full turn)	31855.0 lbs
Height to Hinge Pin	164.2 in
Dump Clearance (@ max height)	119.7 in
Dump Reach (@ max height)	48.0 in

Max Travel Speed	22.4 mph
Auxiliary Standard Flow	68.7 gpm
Tire Size	23.5 R25
