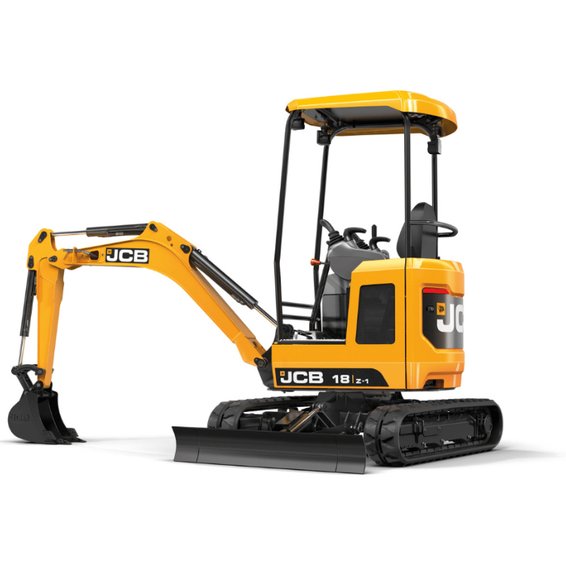

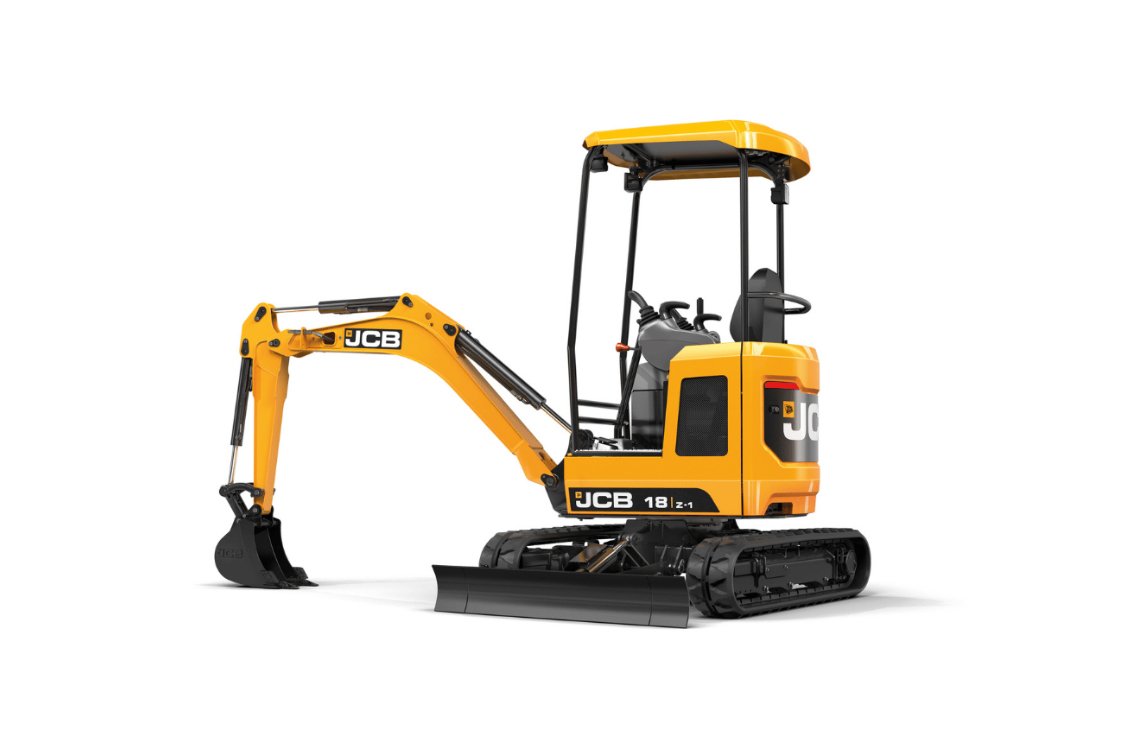

JCB 18Z-1 Mini Excavator

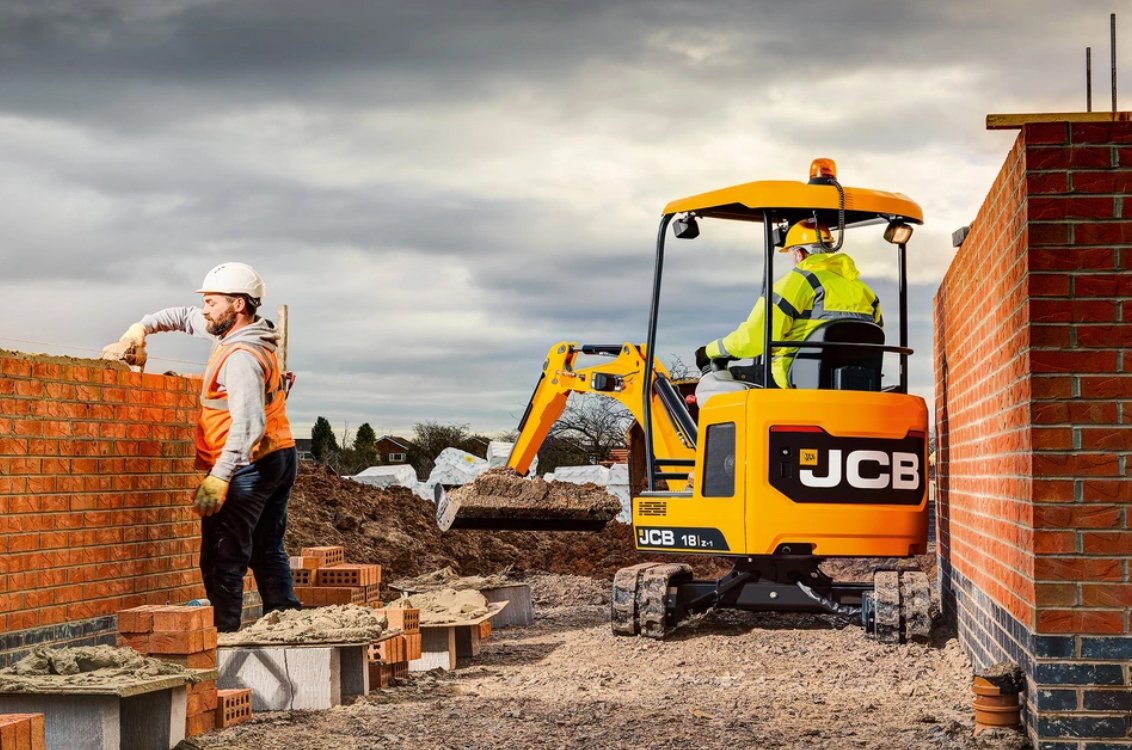

JCB 18Z-1 Mini Excavator moving earth in a tight space

New Equipment

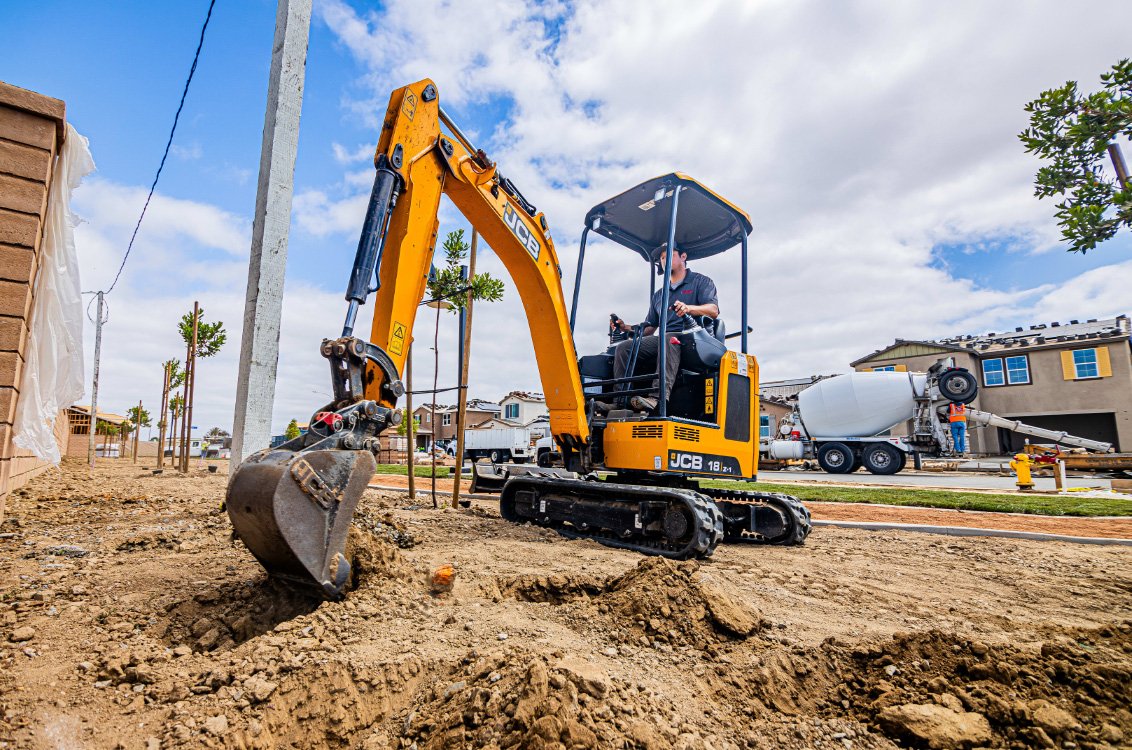

Take on the tightest job sites without sacrificing durability. The JCB 18Z-1 is our smallest true zero tailswing excavator, allowing operators to work flush against obstacles safely and efficiently. Its rugged H-frame undercarriage can retract down to just 39 inches to squeeze through narrow residential gates, then extend out to 52 inches for maximum stability while digging. Hoses are internally routed through the boom for superior protection, while the highly efficient hydraulic system delivers over 4,000 lbf of bucket tearout force. With highly towable transport weights starting at just 3,691 lbs, moving this compact powerhouse from site to site has never been easier

Request a Quote

Specifications

Operator Protection	ROPS/TOPS/FOPS

Tail Swing Type	Zero
Operating Weight	3856.0 lb
Overall Width	39.2 in
Overall Width (extended)	52.4 in
Overall Height	91.7 in
Overall Length	139.6 in

Horsepower	21.9 hp
Engine Manufacturer	Perkins
Engine Model	403J-II
Emissions Tier	EPA Tier 4 Final
Fuel Tank Capacity	5.4 gal
Battery Capacity	0.78 kWh
System Voltage	12.0 V

Maximum Digging Depth	95.5 in
Maximum Reach at Ground Level	150.0 in
Maximum Dumping Height	102.3 in
Bucket Breakout Force	4047.0 lbf
Stick Digging Force - Standard	2271.0 lbf
Blade Size (H x W)	9.2 x 52.8 (with extensions) in
Arm Configuration	3'1" Standard Arm (3'7" and 4'5" options available)

Auxiliary Circuit Flow	8.5 gal/min
Track Shoe Type	Rubber/Steel
Ground Pressure	4.7 psi
