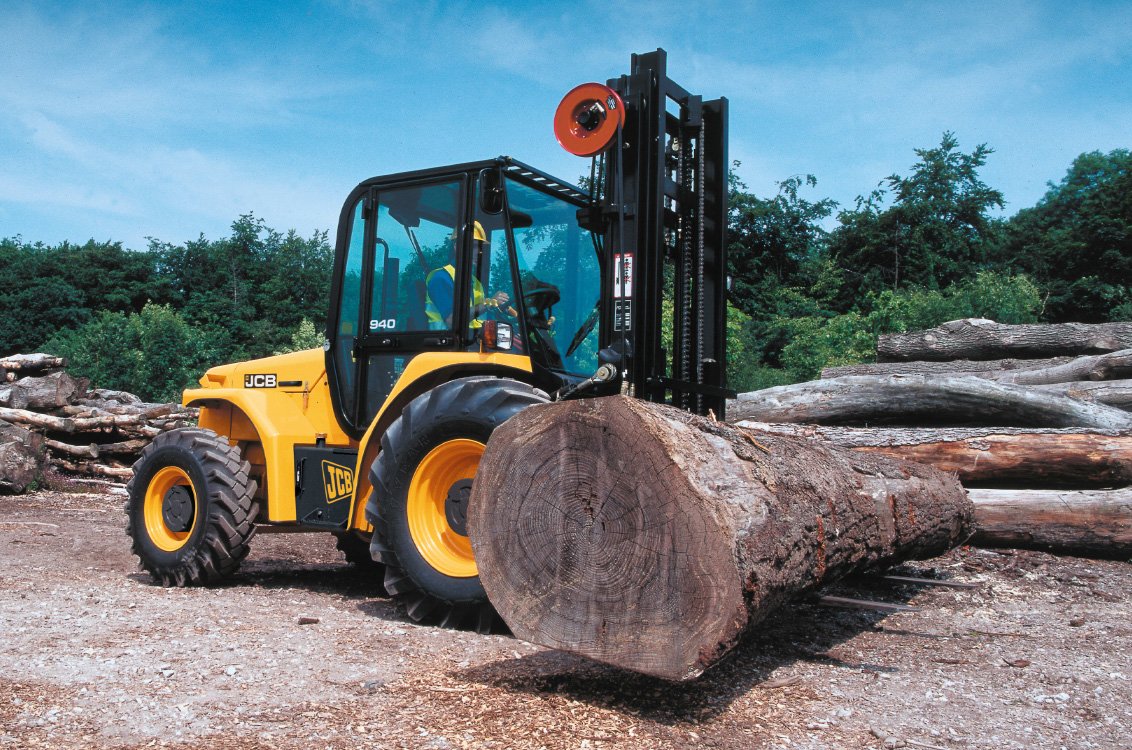

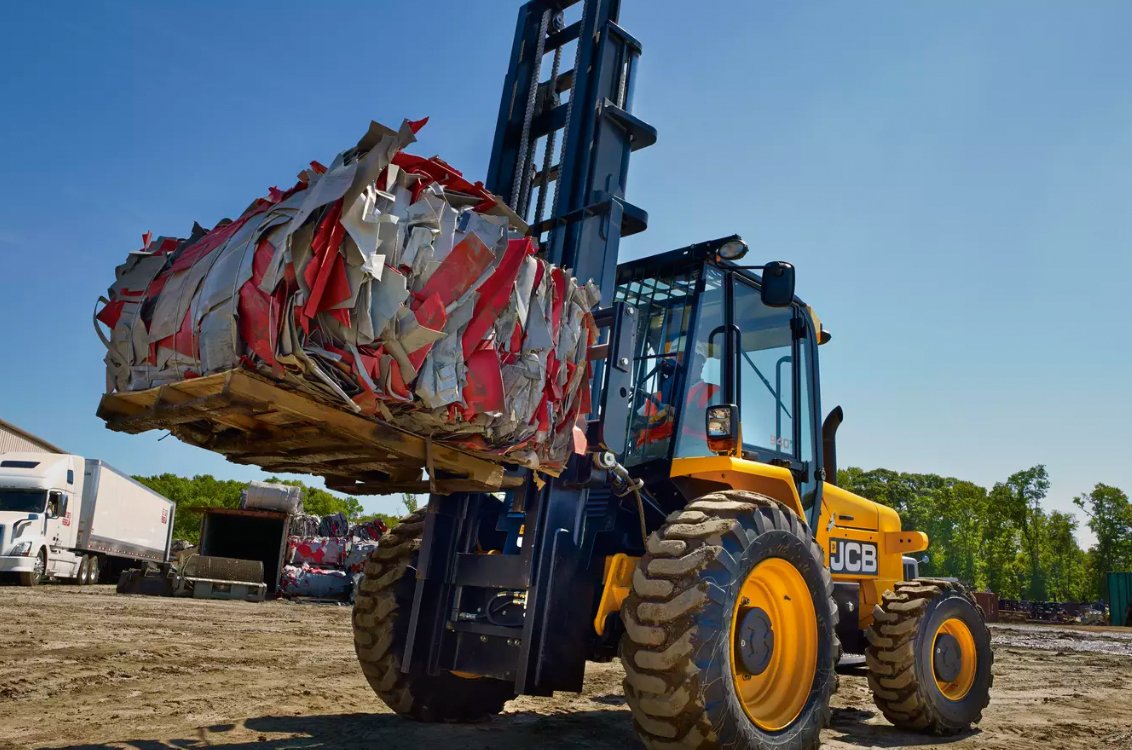

JCB 940 Rough Terrain Forklift
The JCB 940 rough terrain forklift combines an 8,000 lb rated lift capacity with mast options reaching up to 22 ft, making it suited to construction sites, lumber yards and other outdoor material-handling applications. With the 22 ft mast, it can handle up to 3,500 lb at maximum height for elevated load placement.
Power comes from a 74 hp JCB EcoMAX engine paired with a Synchro-Shuttle transmission, while available 4WD provides traction on uneven terrain. A zero-tail-swing design helps with maneuvering in confined yards, and the high-mounted cab, slim mast profile and large glazing provide clear visibility when travelling and positioning loads.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
JCB 940 Specifications
| Rated Lift Capacity | 8000.0 lbs |
| Max Lift Height | 266.0 in |
| Capacity at Max Height | 3500.0 lbs |
| Load Centre | 21.0 in |
| Mast Tilt (Fwd/Back) | 18° / 10° |
| Operating Weight | 15750.0 lbs |
| Overall Cab Height | 100.0 in |
| Overall Width (over tires) | 86.0 in |
| Overall Length to Front Carriage | 141.0 in |
| Wheelbase | 86.0 in |
| Ground Clearance | 10.0 in |
| Outside Turn Radius | 193.7 in |
| Horsepower | 74.0 hp |
| Max Torque | 295.0 lb-ft |
| Engine Model | JCB EcoMAX TCAE-55 |
| Drive | 2WD / 4WD |
| Transmission | 4-Speed Synchroshuttle |
| Max Travel Speed | 18.4 mph |
Specifications and images may vary in accuracy.
