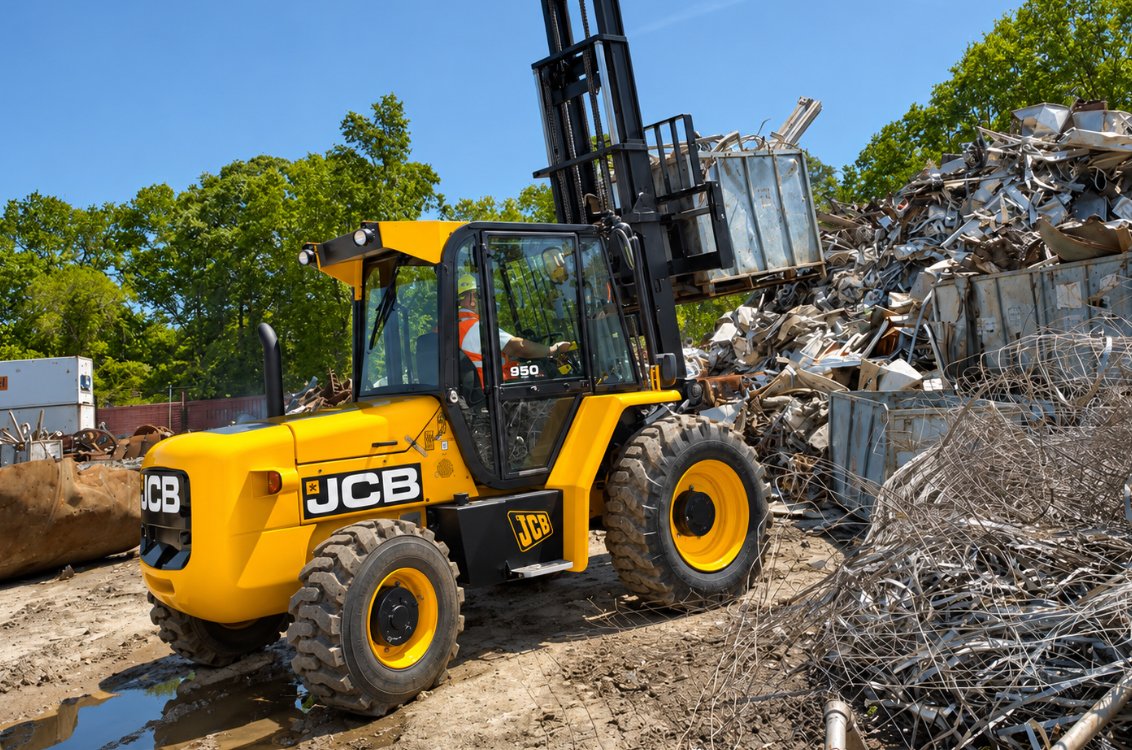

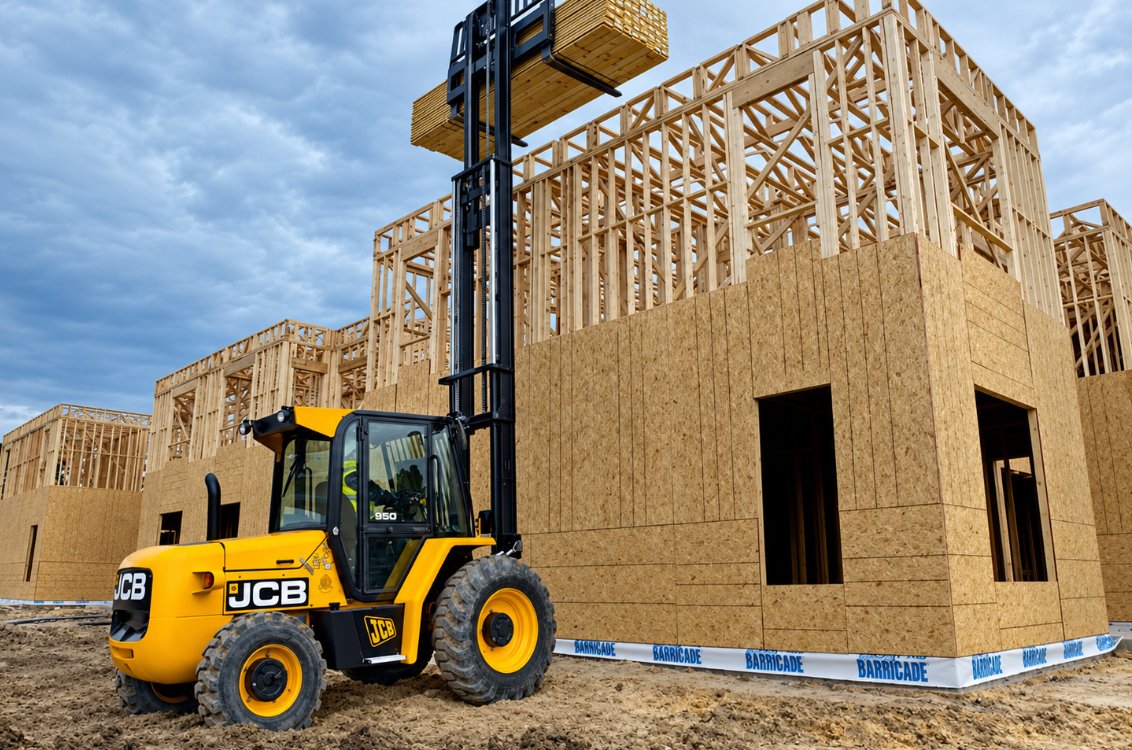

JCB 950 Rough Terrain Forklift
The JCB 950 is the highest-capacity rough terrain forklift in the JCB range, offering a 10,000 lb rated lift capacity for demanding outdoor material handling. Available mast configurations reach up to 22 ft, while the 950 retains up to 6,500 lb of capacity at maximum height for heavier elevated load placement.
A 74 hp JCB EcoMAX engine, 4WD and Synchro-Shuttle transmission provide the traction and directional control needed on uneven jobsites. Its 10 in ground clearance supports off-road operation, while mast sideshift, strong visibility and a compact turning radius help operators position heavy loads accurately in construction yards, lumber operations and other rough-terrain applications.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
JCB 950 Specifications
| Rated Lift Capacity | 10000.0 lbs |
| Max Lift Height | 266.0 in |
| Capacity at Max Height | 6500.0 lbs |
| Load Centre | 21.0 in |
| Mast Tilt (Fwd/Back) | 22° / 10° |
| Operating Weight | 17295.0 lbs |
| Overall Cab Height | 100.0 in |
| Overall Width (over tires) | 86.0 in |
| Overall Length to Front Carriage | 141.0 in |
| Wheelbase | 86.0 in |
| Ground Clearance | 10.0 in |
| Outside Turn Radius | 193.7 in |
| Horsepower | 74.0 hp |
| Max Torque | 295.0 lb-ft |
| Engine Model | JCB EcoMAX TCAE-55 |
| Drive | 4WD |
| Transmission | 4-Speed Synchroshuttle |
| Max Travel Speed | 18.4 mph |
Specifications and images may vary in accuracy.
