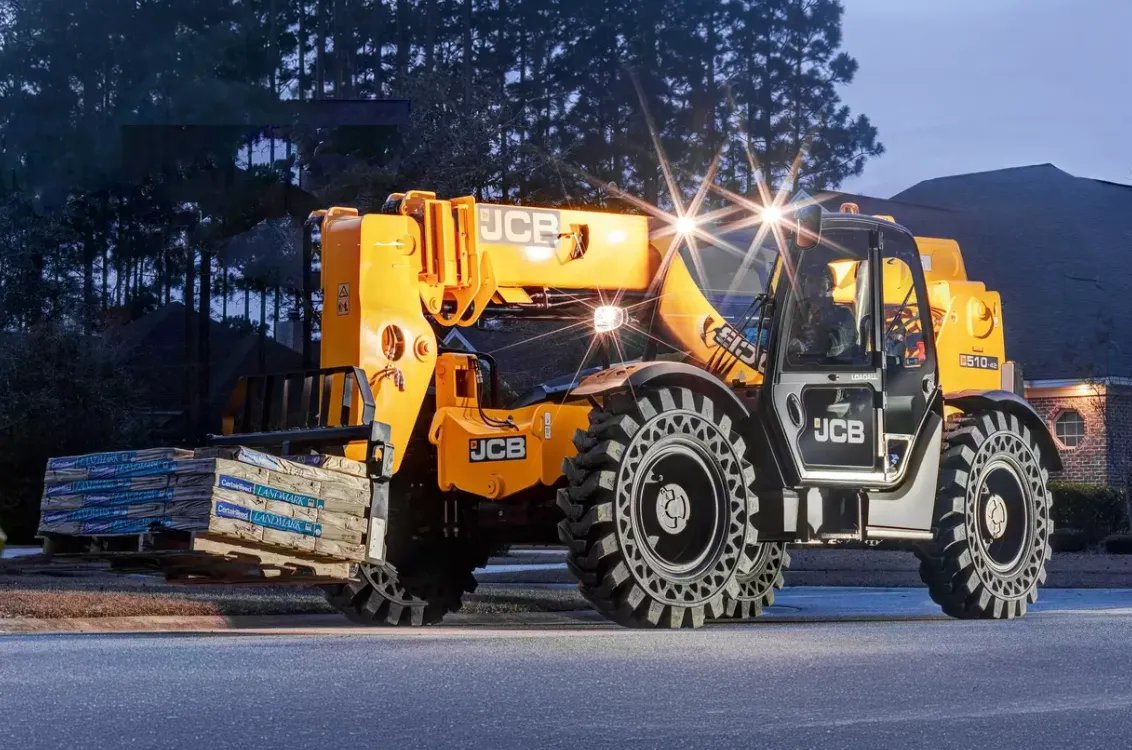

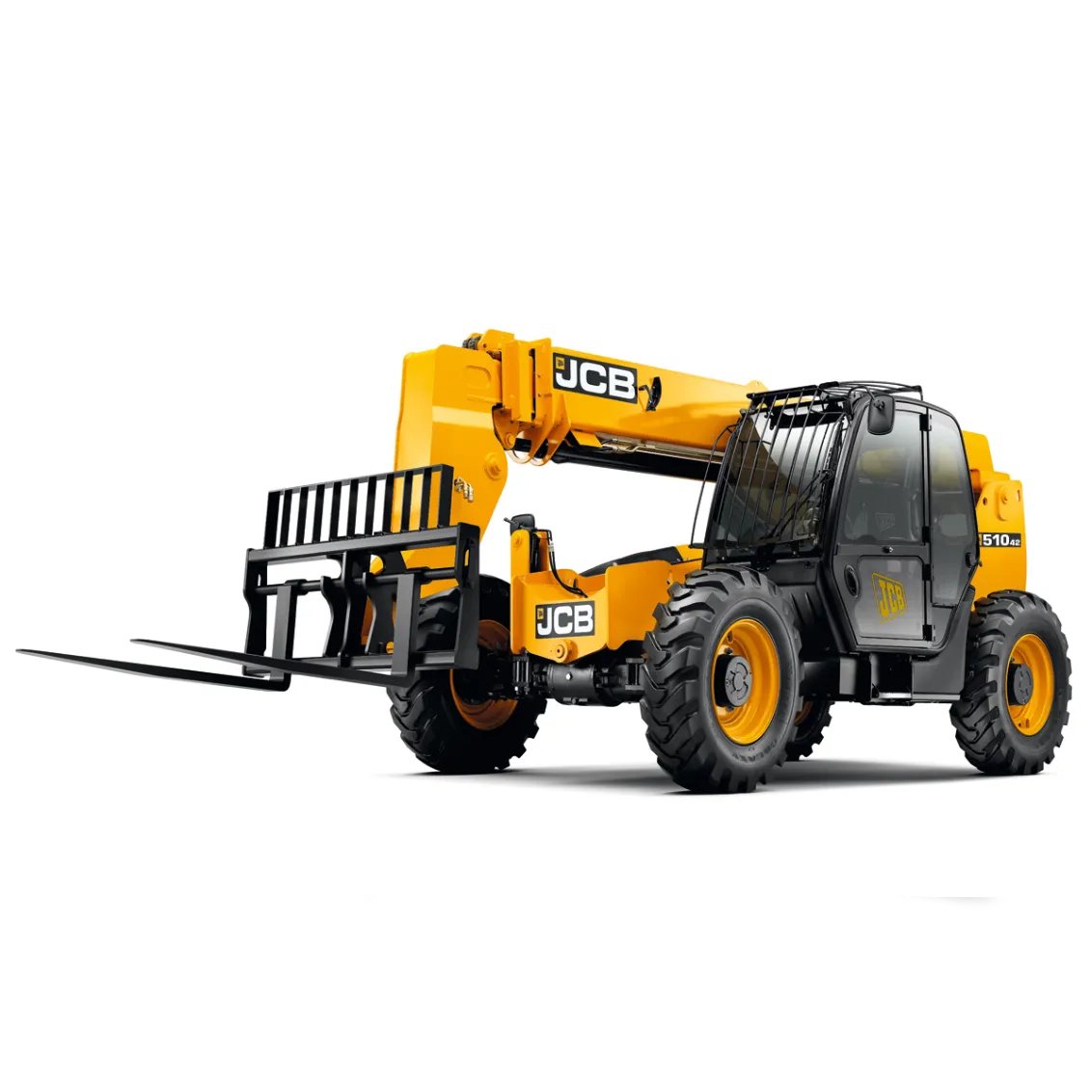

JCB 510-42 Telehandler
The JCB 510-42 telehandler is designed for maximum productivity. With a maximum capacity of 10,000 lb and no requirement for outriggers, operators are able to efficiently move from one project to the next, to complete more tasks.
The 510-42 is built with the benefit of JCB's 40 years of telehandler manufacturing experience. With a one-piece, fully welded chasis and JCB's U-profile boom that has been proven on more than 200,000 machines, the 510-42 delivers the strength and reliability necessary to complete any work site application.
Specifications
| Maximum Reach | 336.0 in |
| Maximum Lift Height | 504.0 in |
| Hydraulic Tank Capacity | 33.3 gal |
| Operator Protection | ROPS/FOPS |
| Drive | 4WD |
| Travel Speed | 15.5 mph |
| Transmission | Hydrostatic |
| Overall Length | 255.0 in |
| Operating Weight | 23858.0 lbs |
| Overall Height | 99.0 in |
| Overall Width | 94.0 in |
| Wheelbase | 124.0 in |
| Ground Clearance | 15.0 in |
| Power Mode | Diesel |
| Horsepower | 109.0 hp |
| Engine Manufacturer | JCB |
| Emissions Tier | Tier 4 Final |
| Displacement | 268.0 cid |
| Lift Capacity | 10000.0 lbs |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
