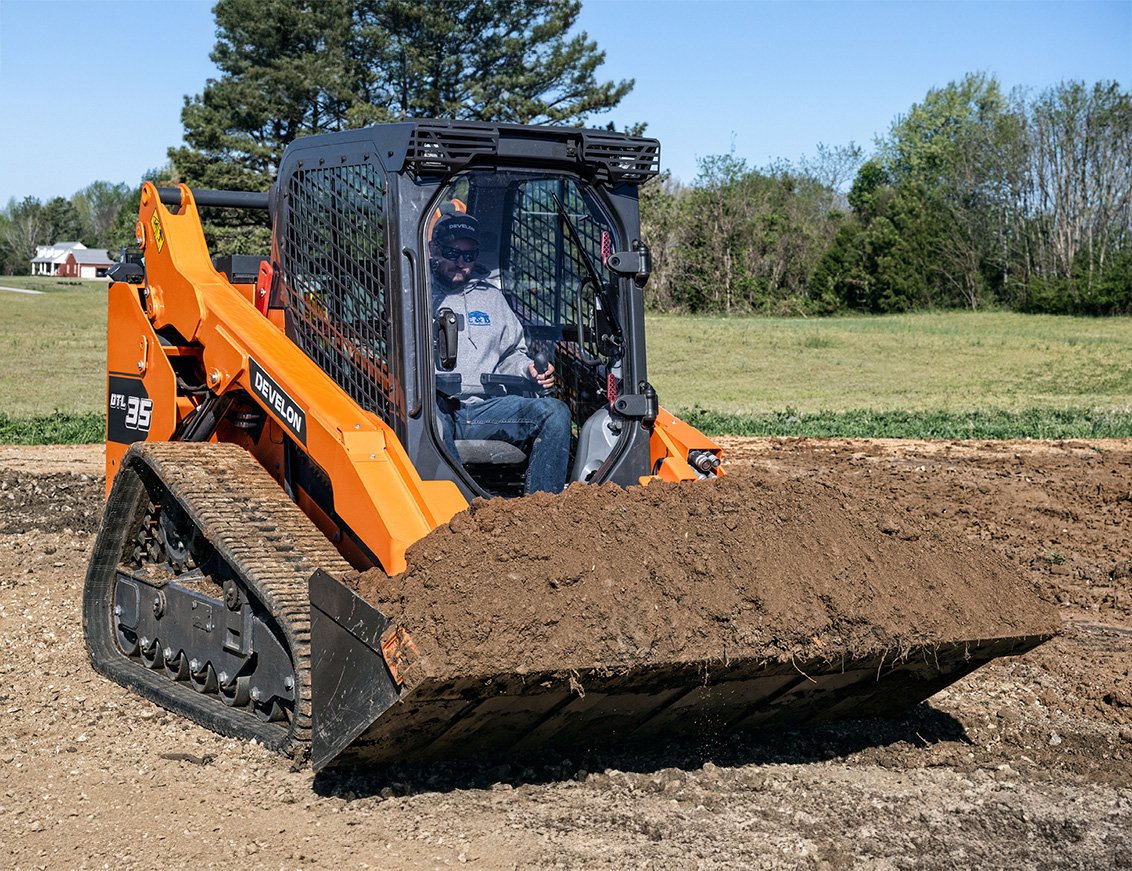

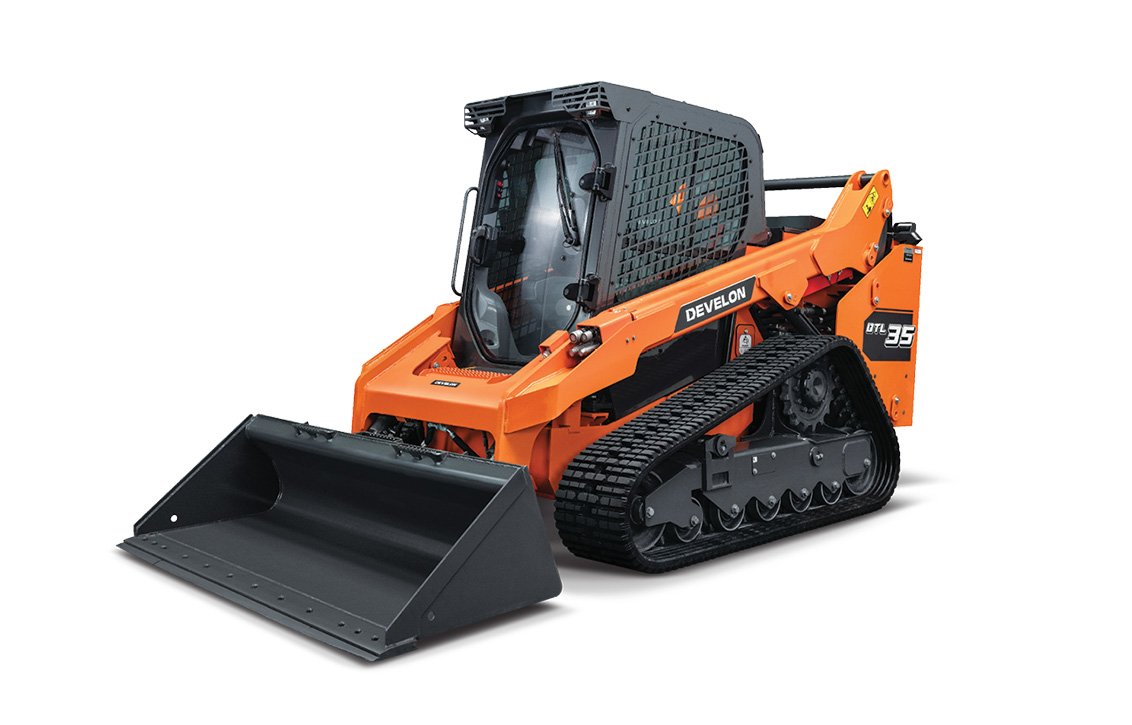

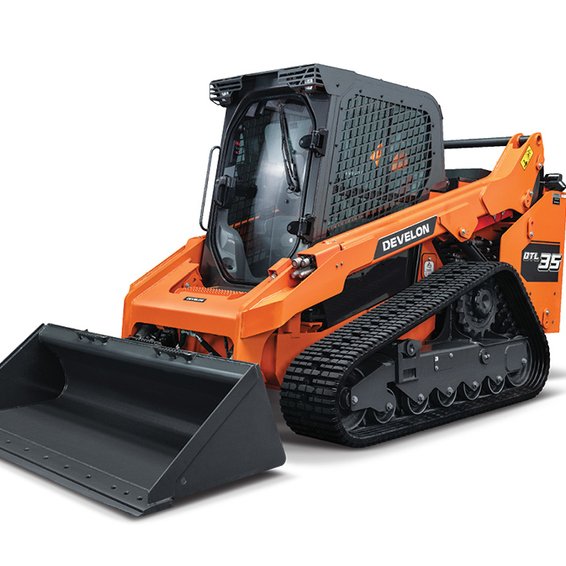

DEVELON DTL35 Compact Track Loader
Dominate the dirt with the DEVELON DTL35 compact track loader, a vertical-lift workhorse built for serious earthmoving and heavy material handling. Cranking out 115.3 gross horsepower, this 12,785-pound machine delivers the raw pushing power and breakout force you need to tear through compacted soil and dense aggregate.

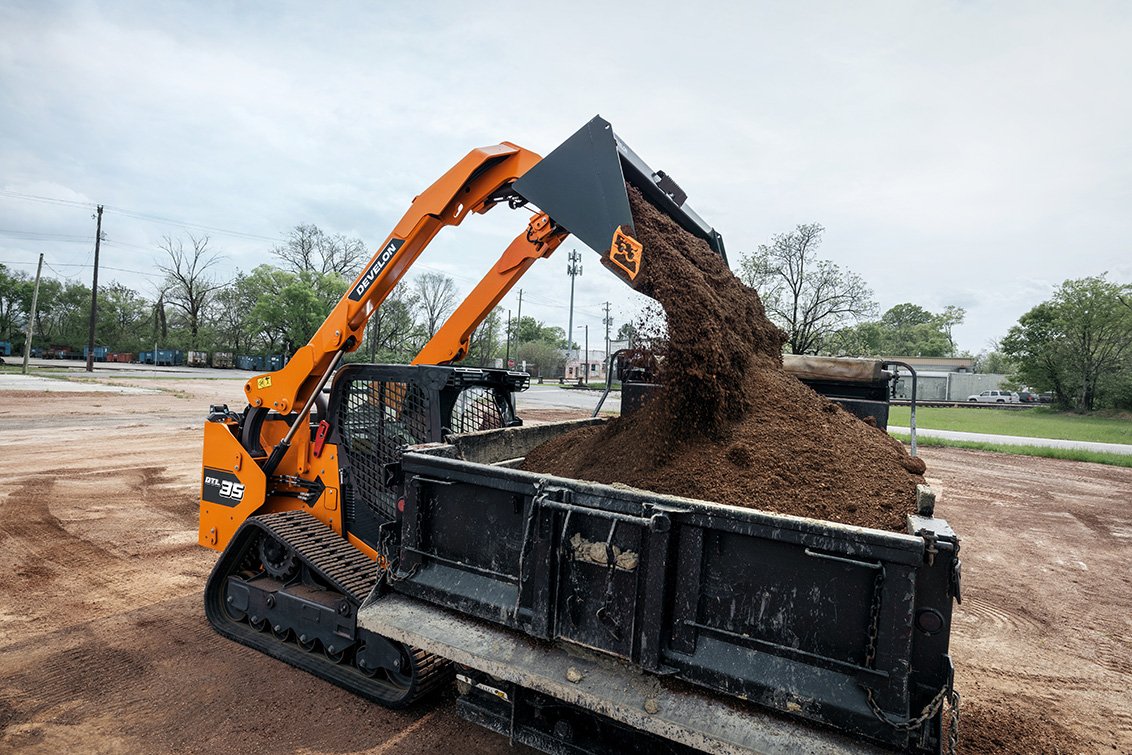

Operators can confidently lift and load high-sided dump trucks thanks to a 129.1-inch hinge pin height and a rock-solid 3,806-pound rated operating capacity. With standard joystick controls, a massive 29-gallon fuel tank, and up to 39.9 gpm of high-flow auxiliary hydraulics, the DTL35 is locked and loaded to run power-hungry attachments all day long without breaking a sweat.
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
DEVELON DTL35 Specifications
| Control Type | Joystick Controls |
| Operating Weight | 12785.0 lbs |
| Length with Bucket | 165.7 in |
| Overall Width | 76.8 in |
| Height to Top of Cab | 84.0 in |
| Track Width | 15.7 in |
| Ground Pressure | 5.7 psi |
| Engine Manufacturer | DEVELON |
| Engine Model | D34 |
| Gross Horsepower | 115.3 hp |
| Emissions Tier | EPA Tier 4 FInal |
| Fuel Tank Capacity | 29.0 gal |
| Rated Operating Capacity (ROC) | 3806.0 lbs |
| Tipping Load | 10875.4 lbs |
| Lift Path | Vertical |
| Height to Hinge Pin | 129.1 in |
| Bucket Breakout Force | 6649.1 lbs |
| Standard Auxiliary Flow | 22.2 gal/min |
| High Auxiliary Flow | 39.9 gal/min |
| Transmission | 2-speed axial piston HST pump |
| Travel Speed (low) | 6.1 mph |
| Travel Speed (high) | 9.2 mph |
Specifications and images may vary in accuracy.
