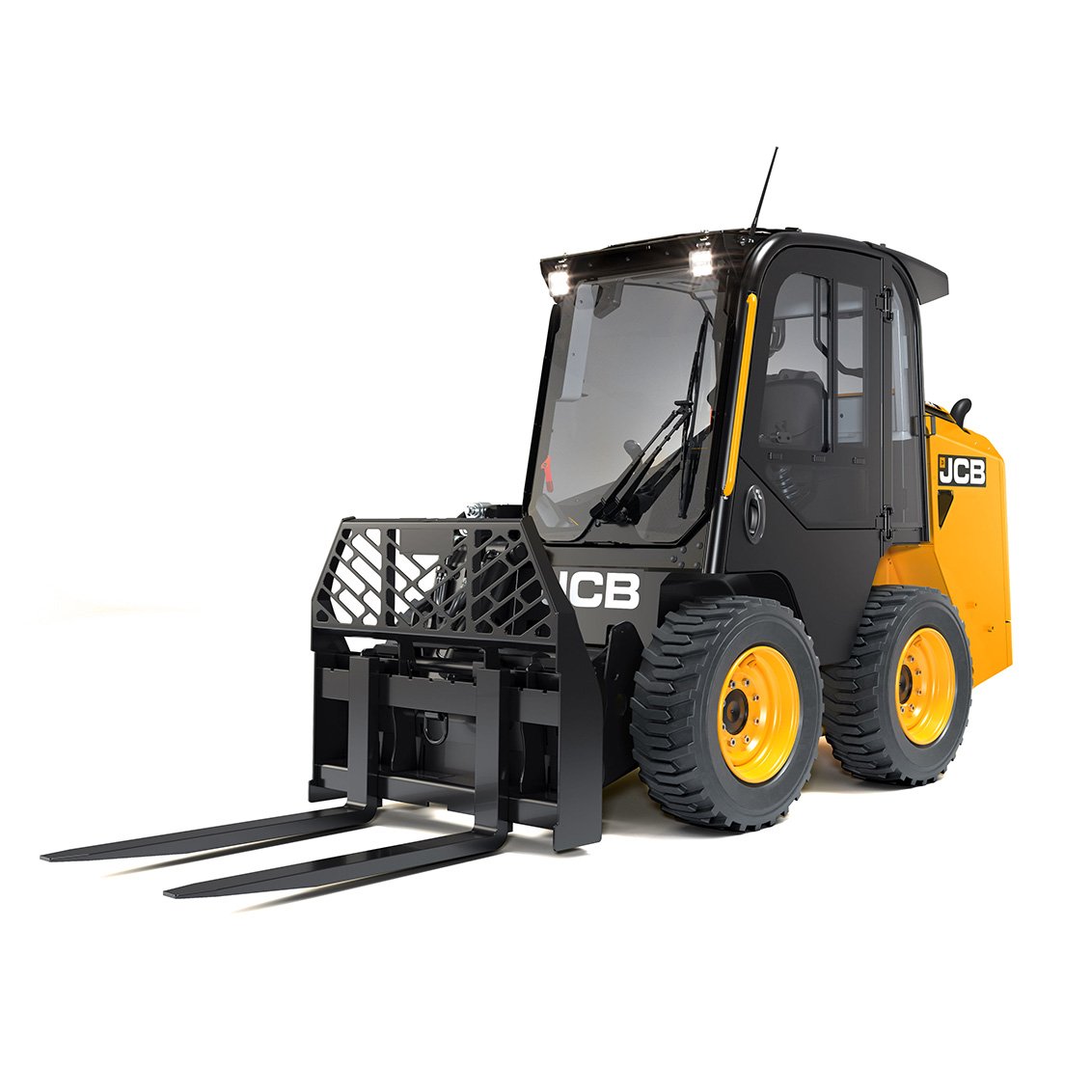

JCB 300 Skid Steer Loader

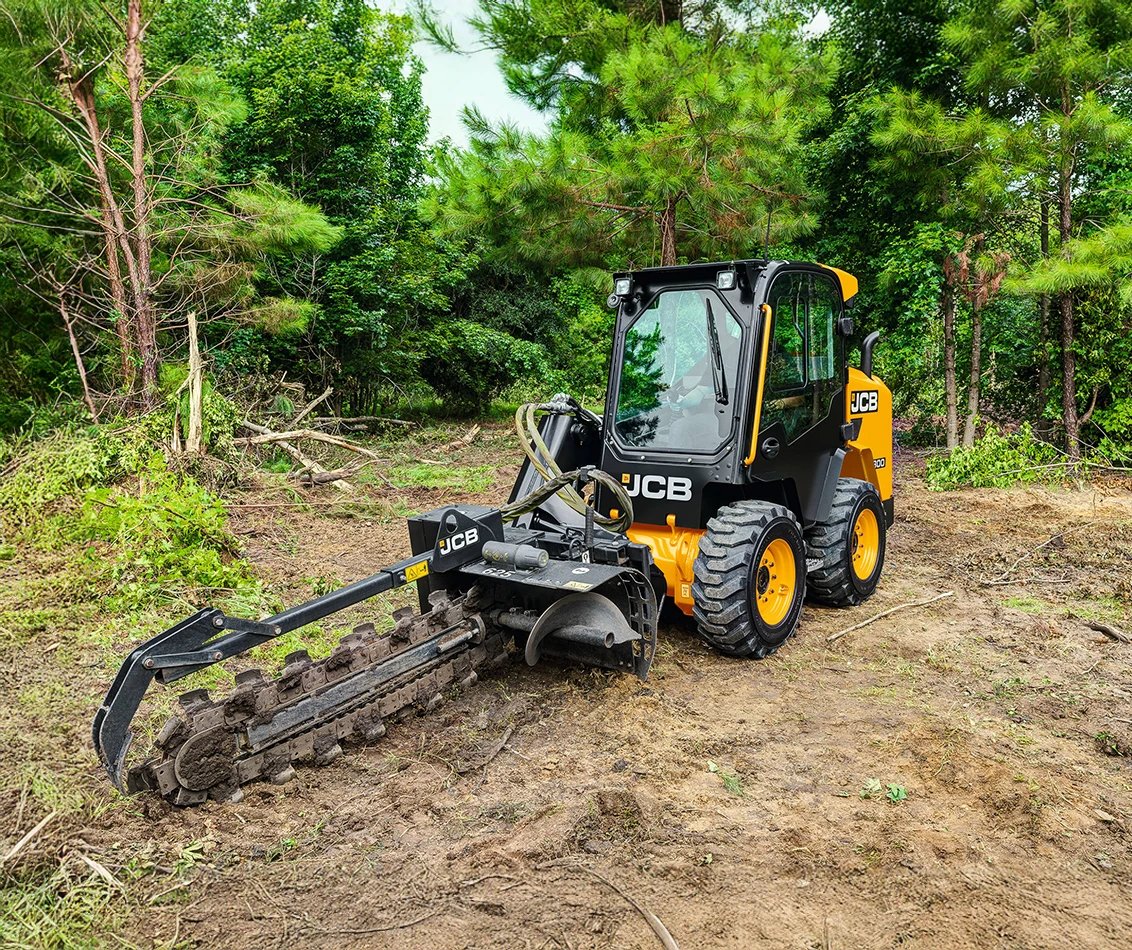

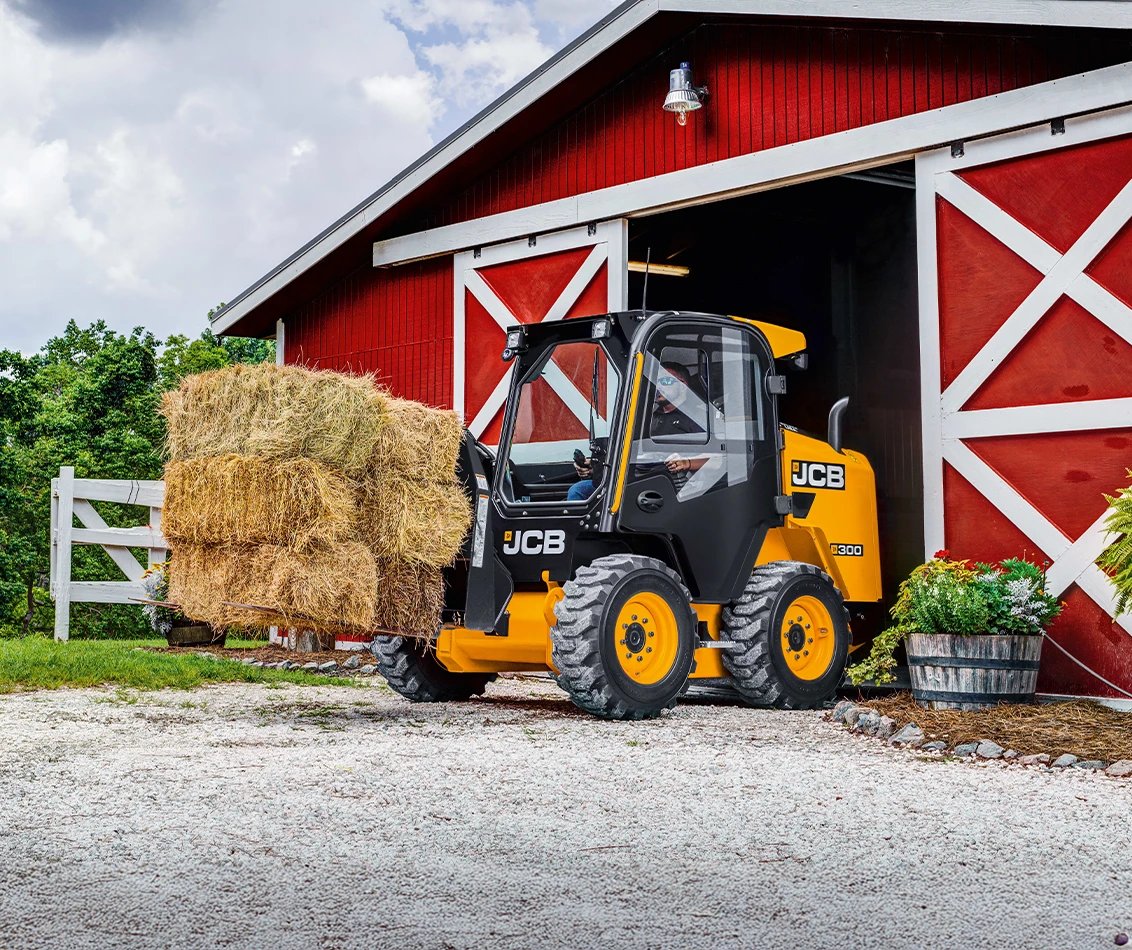

Take on the most demanding agricultural, demolition, and material handling tasks with the JCB 300, a large-platform vertical lift skid steer loader. Engineered with a single-arm Powerboom™, it provides unparalleled operator safety by enabling side-door entry rather than forcing operators to climb over hazardous buckets and attachments.
This robust machine boasts a 3186-pound rated operating capacity and is driven by a 74-horsepower EcoMAX diesel engine that notably requires no exhaust aftertreatment. The 300 has an operating weight of 9288 pounds and utilizes a 75-inch bucket width, delivering a formidable 6543 pounds of bucket breakout force. Visibility is enhanced by up to 60 percent compared to conventional twin-arm machines, and the two-speed transmission enables brisk jobsite traversal up to 12.4 miles per hour.
Specifications
| Operator Protection | EROPS |
| Control Type | Standard Joystick |
| Operating Weight | 8430.0 lbs |
| Length with Bucket | 149.0 in |
| Width with Bucket | 75.0 in |
| Height to Top of Cab | 82.0 in |
| Engine Manufacturer | JCB |
| Engine Model | EcoMAX TCAE-55 |
| Gross Horsepower | 92.0 hp |
| Emissions Tier | Tier 4 Final |
| Fuel Tank Capacity | 27.2 gal |
| Rated Operating Capacity (ROC) | 3186.0 lbs |
| Tipping Load | 6372.0 lbs |
| Lift Path | Vertical |
| Height to Hinge Pin | 125.0 in |
| Bucket Breakout Force | 6543.0 lbs |
| Standard Aux Flow | 24.0 gpm |
| High Aux Flow | 33.0 gpm |
| Travel Speed - Low | 6.8 mph |
| Travel Speed - High | 12.4 mph |
| Transmission | Hydrostatic |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Do more for less with a uniquely capable JCB Skid Steer Loader. Take advantage of 1.99% financing for up to 48 months.
Extend your reach with the highly versatile JCB Teleskid. Lock in 1.99% financing for up to 48 months today.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
