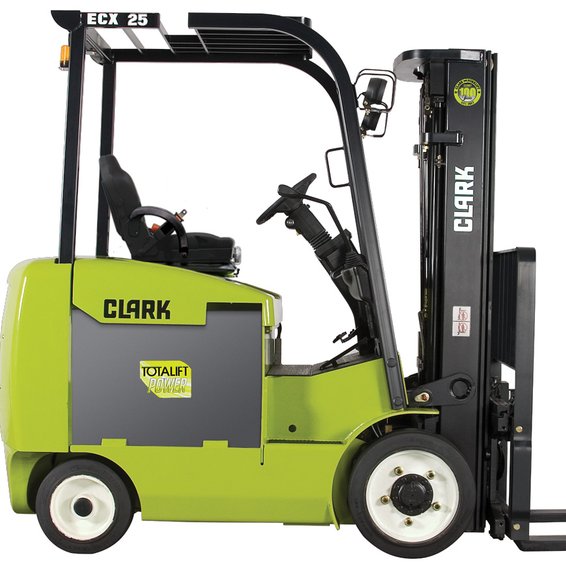

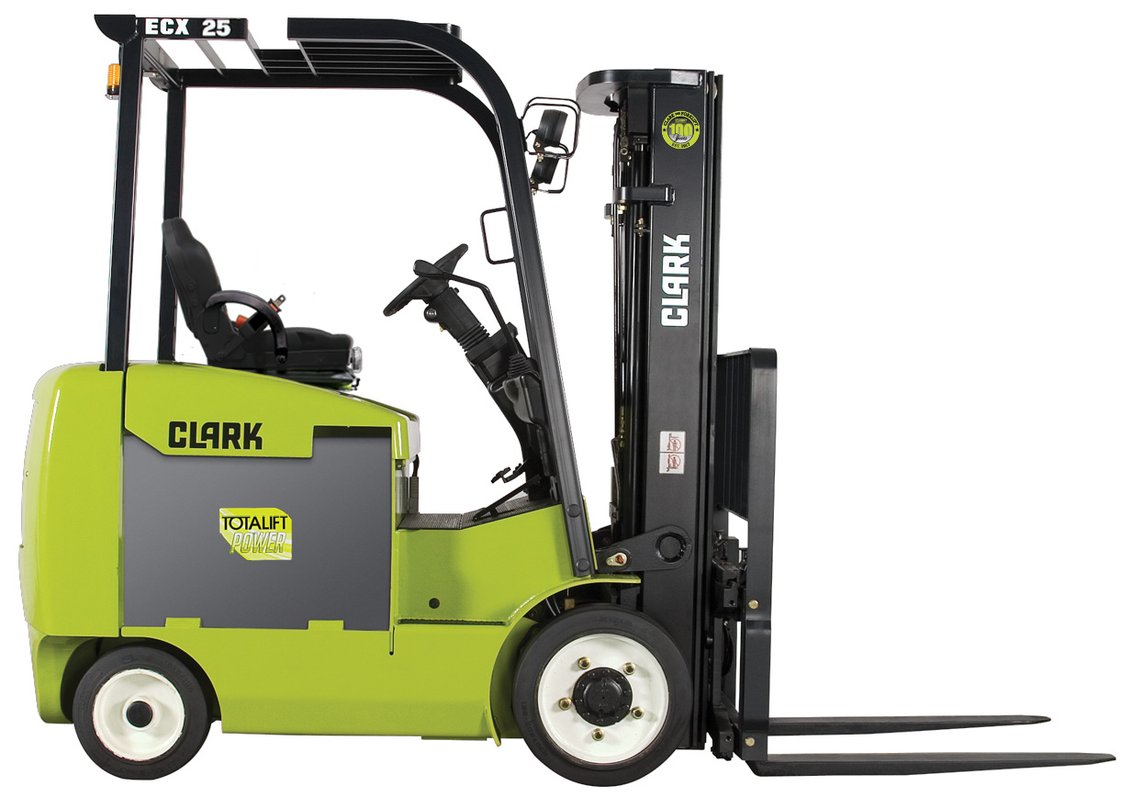

Clark ECX 25 Electric Rider Cushion Forklift
Built for heavy-duty jobs, the CLARK ECX 25 Electric Rider Cushion Forklift can increase productivity on your job. With a 5,000 lb Load Capacity, it's perfect for manufacturing, warehousing, bottling, and shipping or receiving, this machine can tackle whatever job placed in front of it. It is built with key considerations for ergonomics, operator comfort, safety, and top-notch performance. Minimize downtime today with the CLARK ECX 25 and get superior results for your business.
Specifications
| Brakes | Drum/Shoe |
| Power Mode | Electric |
| Maximum Fork Height | 189.0 in |
| Standard Mast: Free Lift | 61.5 in |
| Mast | 3-Stage |
| Control Type | AC Control |
| Drive Motor | Dual AC |
| Minimum Battery Weight | 2600.0 lbs |
| Plug Type | SB-350 Gray |
| Cable Connection Position | A |
| Cable Length | 18.0 ft |
| Steering | Hydrostatic |
| Min. Aisle Right Ang Stack +LL | 89.7 in |
| Maximum Fork Spread | 35.0 in |
| Front Overhang | 16.7 in |
| Tread (Front/Rear) | 35.8/34.2 |
| Outside Turning Radius | 72.6 in |
| Height To Top Overhead Guard | 88.0 in |
| Lowered Overall Height | 83.0 in |
| Center of Wheelbase | 4.5 in |
| Overall Length | 86.2 in |
| Overall Width | 43.9 in |
| Wheelbase | 53.0 in |
| Steer Tire Size | 16 x 6 x 10.5 |
| Drive Tire Size | 21 x 8 x 15 in |
| Lift Capacity | 5000.0 lbs |
| Travel Speed Loaded | 8.5 mph |
| Load Center | 24.0 in |
