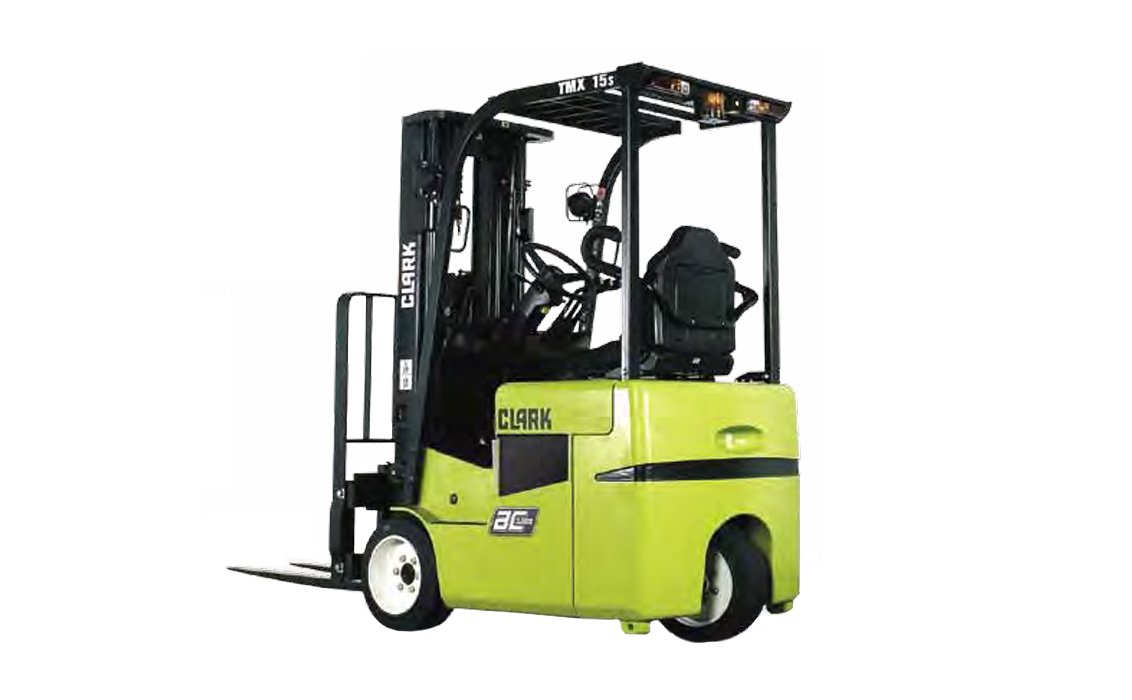

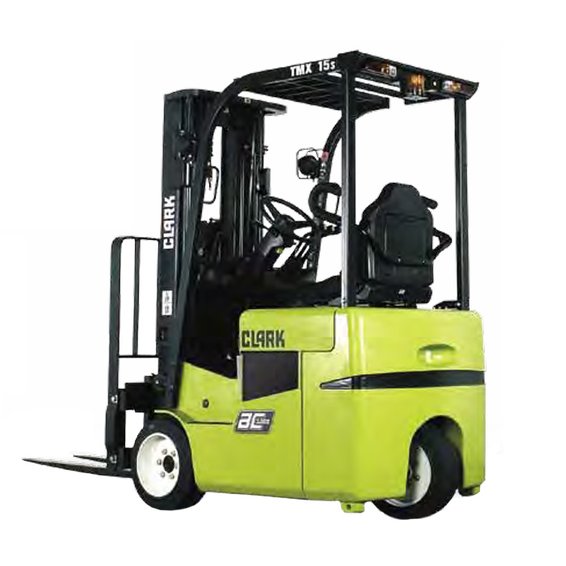

Clark TMX 15S Electric Rider Cushion Forklift
The CLARK TMX 15S is a three-wheel, sit-down electric cushion forklift tuned for tight indoor aisles and trailer work. It carries 3,000 lb at a 24-in load centre, with common mast packages including a 3-stage to 188 in for higher racking.
Compared with the TMX 15, the 15S uses a shorter, tighter chassis, notably a smaller right-angle stack (67.8 in vs 74.2 in) and tighter outside turning radius (53.4 in vs 59.8 in), which boosts maneuverability.
Specifications
| Brakes | Disc |
| Maximum Fork Height | 188.0 in |
| Standard Mast: Free Lift | 59.0 in |
| Mast | 3-Stage |
| Control Type | AC Control |
| Drive Motor | Dual AC |
| Minimum Battery Weight | 1650.0 lbs |
| Plug Type | SB-350 Gray/Blue |
| Cable Connection Position | A |
| Cable Length | 18.0 ft |
| Steering | Hydrostatic |
| Min. Aisle Right Ang Stack +LL | 67.8 in |
| Maximum Fork Spread | 36.0 in |
| Front Overhang | 14.4 in |
| Tread (Front/Rear) | 33.3/ - |
| Outside Turning Radius | 53.4 in |
| Height To Top Overhead Guard | 83.0 in |
| Lowered Overall Height | 83.0 in |
| Center of Wheelbase | 4.1 in |
| Overall Length | 69.5 in |
| Overall Width | 40.25 in |
| Wheelbase | 46.0 in |
| Steer Tire Size | 18 x 7 x 12.12 |
| Drive Tire Size | 18 x 7 x 12.12 in |
| Travel Speed Loaded | 9.3 mph |
| Load Center | 24.0 in |
| Capacity | 3000.0 lbs |
