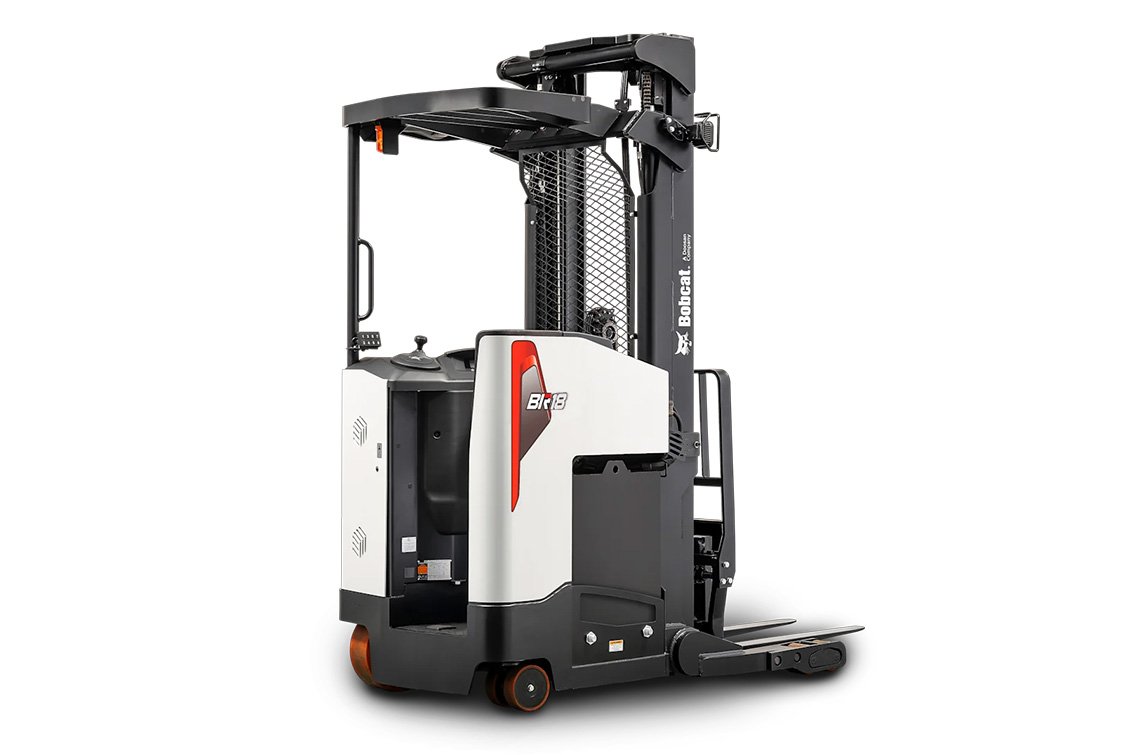

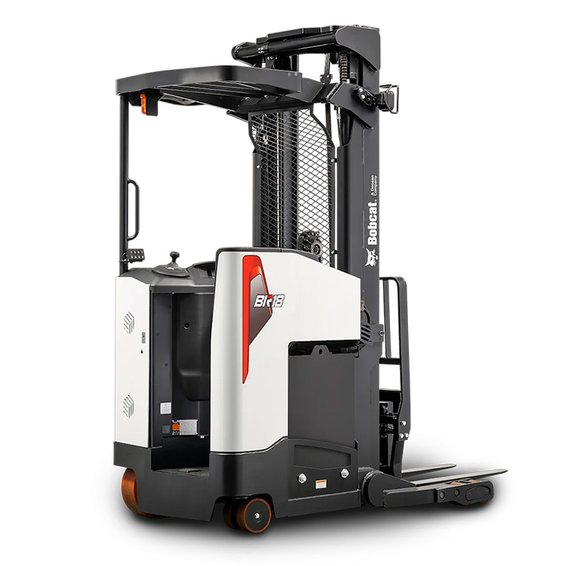

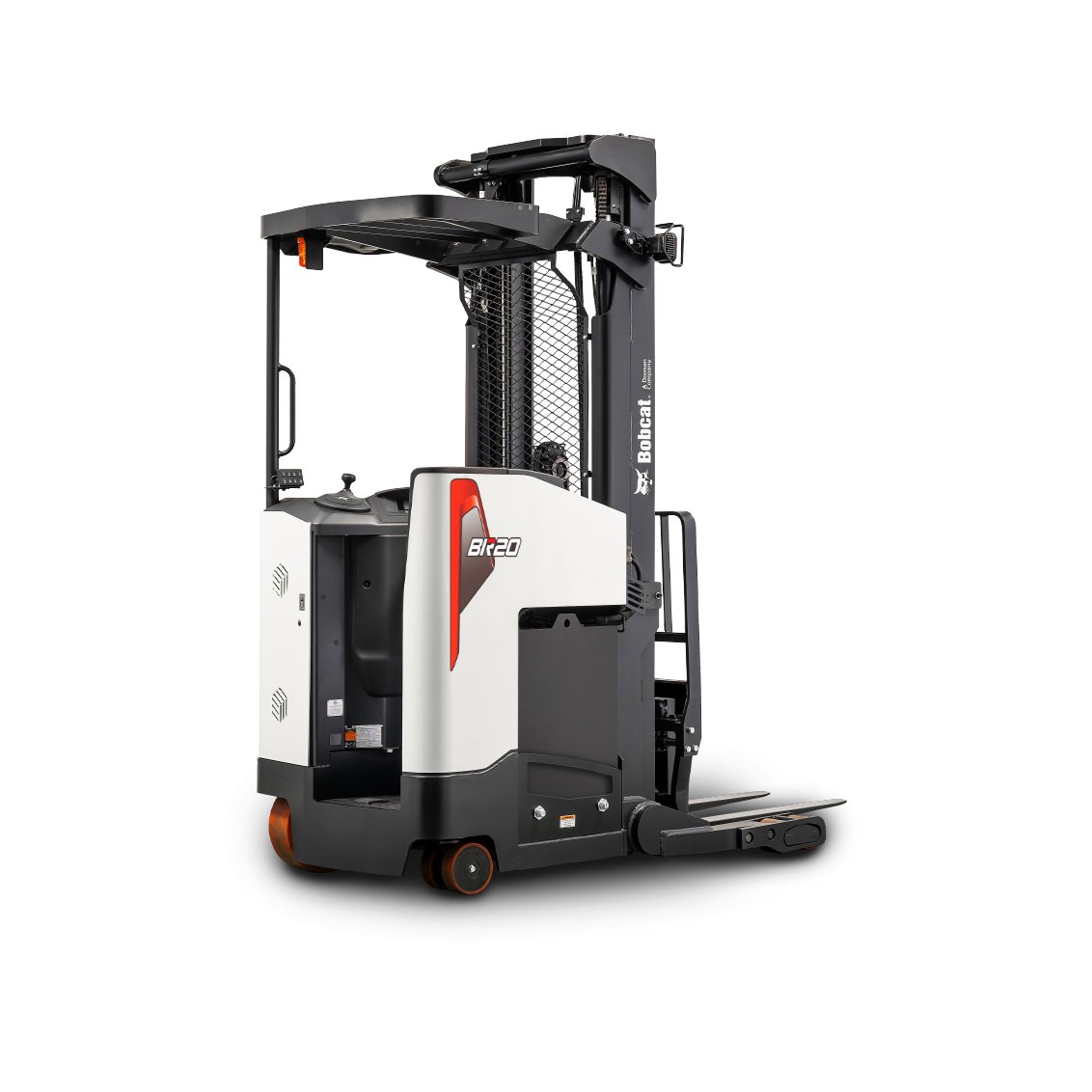

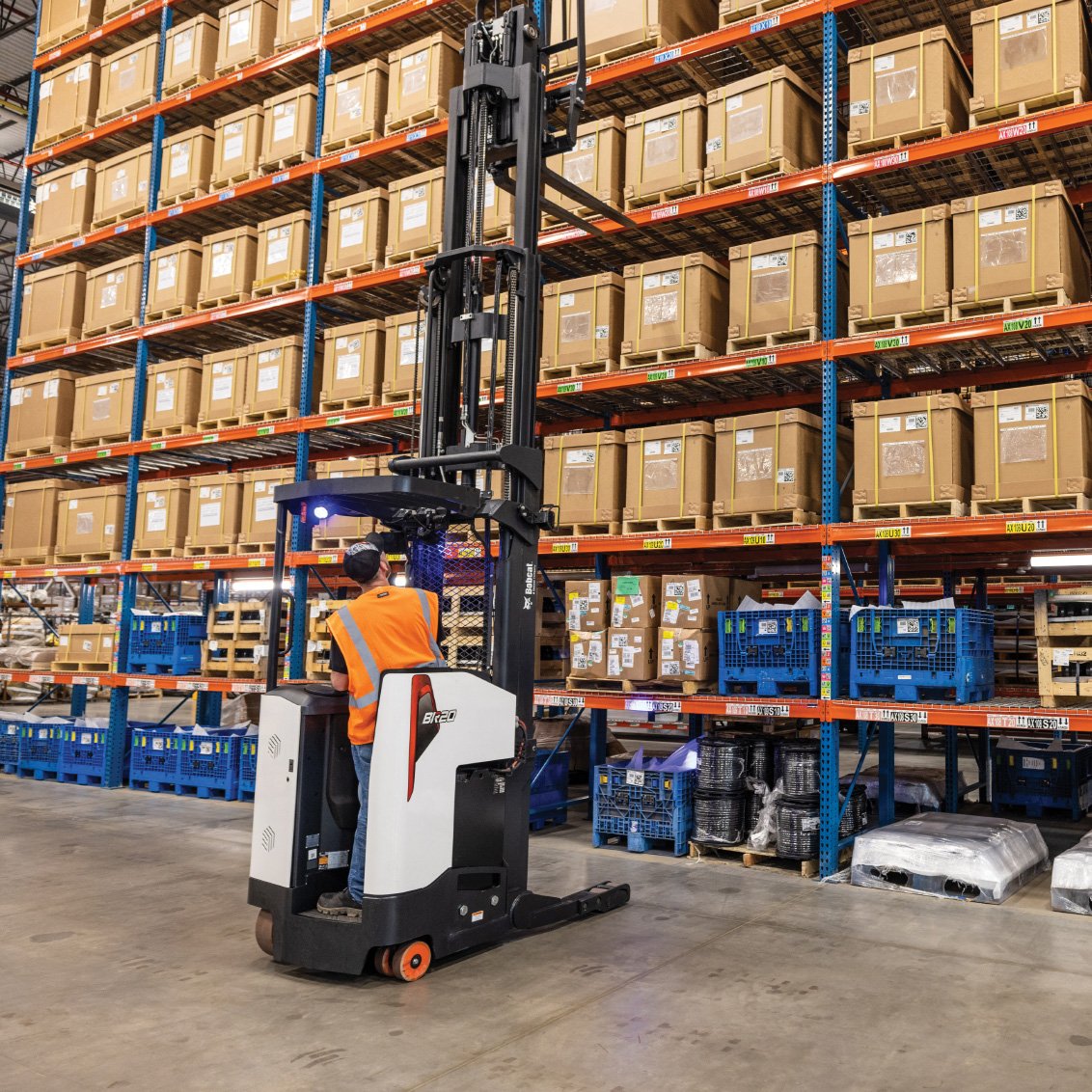

Bobcat BR18SP-7 Plus Electric Narrow Aisle Reach Truck
The Bobcat BR18SP-7 Plus electric narrow aisle reach truck is engineered to streamline high-density warehouse logistics and maximize vertical rack utilization. Featuring a 3,500-pound lift capacity and a 36V electric power system, this narrow aisle specialist provides the agile pantograph extension necessary for precise pallet placement in tight racking configurations. Powered by quiet, highly efficient AC drive, steer, and pump motors managed by a fully adjustable Curtis AC controller, it delivers reliable performance with low energy consumption.
Designed with operator safety and ergonomics at its centre, the BR18SP-7 Plus features a side-stance compartment equipped with a low entry step, thick knee and thigh padding, and a shock-absorbing floor mat. Driving confidence is enhanced by the Guardian Stability System (GSS) with automatic turn deceleration, auto-centering drive tire technology, and built-in hydraulic load cushioning on the mast reach cylinders. An intuitive multi-function joystick control handle, electric power steering, and a clear electronic display allow operators to manage all hydraulic and travel functions with maximum comfort and efficiency.
Specifications
| Lift Capacity | 3500.0 lbs |
| Max Lift Height | 198 - 289 in |
| Free Lift Height | 42.1 - 77.7 in |
| Lowered Overall Height | 91 - 126.5 in |
| Mast Type | FFT |
| Operating Weight | 7255.0 lbs |
| Baseleg Outer Width | 32.0 in |
| Overall Length (to Fork Face) | 72.8 in |
| Overhead Guard Height | 95.0 in |
| Turning Radius | 67.4 in |
| Minimum Aisle Width | 90.2 in |
| Travel Speed (Unloaded) | 7.5 mph |
| Lift Speed (Loaded) | 69 fpm |
| Steering Type | Electric Power Steering |
| Tire Type | Poly |
| Power Mode | Electric |
| Voltage | 36.0 V |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
