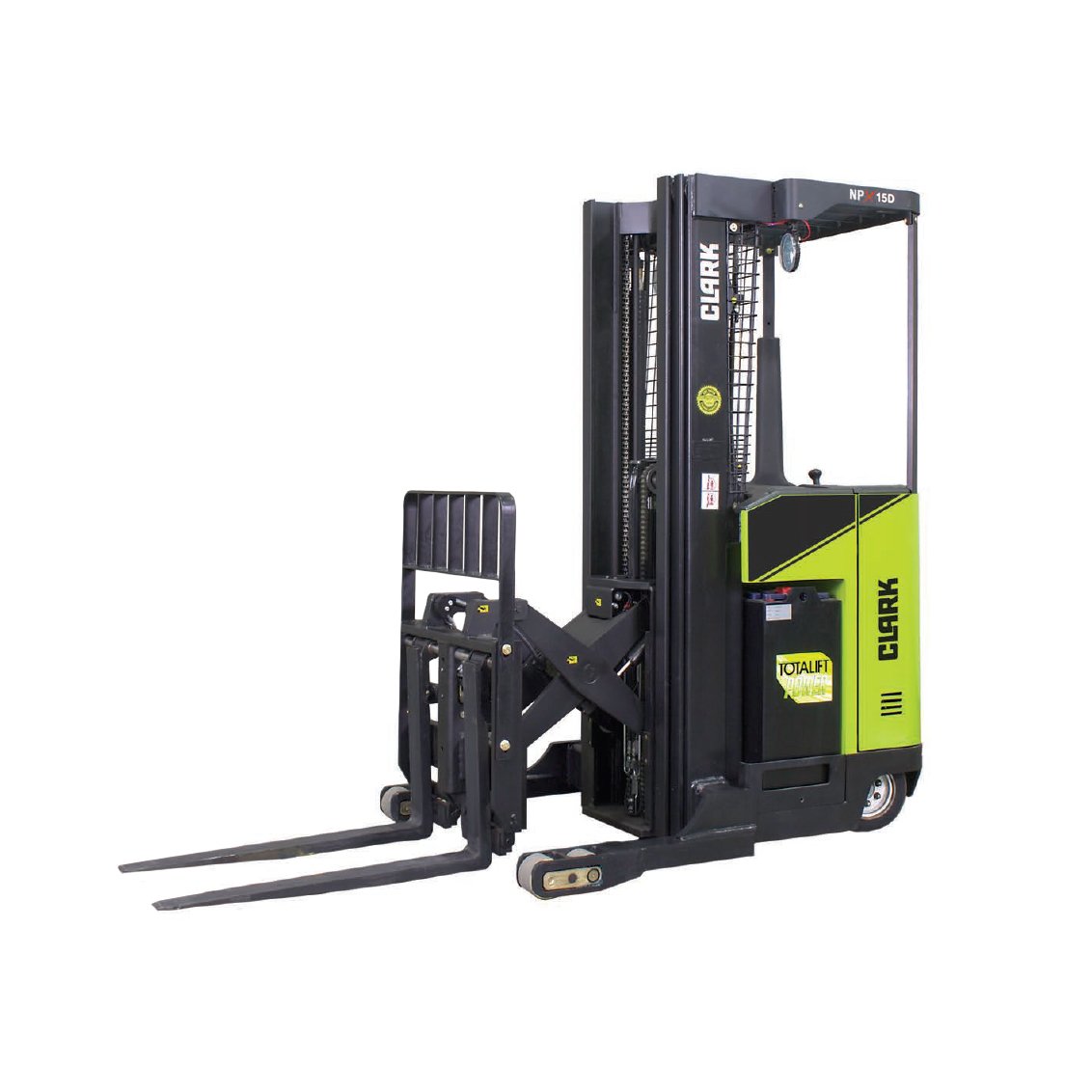

Clark NPX 15D Electric Narrow Aisle Forklift
The Clark NPX 15D is a highly versatile electric rider double reach truck designed for high-density warehouse environments. With a 3,000-pound lift capacity and a 36-volt power system, this Class II narrow aisle machine utilizes a 100% AC electrical design to deliver smooth acceleration, fast travel, and efficient lifting speeds. By allowing operators to reach two pallets deep into racking systems, the double reach mechanism significantly increases cube utilization without requiring specialized articulating chassis designs.
Engineered for maximum visibility and safety, the NPX 15D features a unique operator compartment that positions the driver at a 65-degree angle from the centre. This specialized stance provides a wide field of vision when traveling in either direction, while the nested I-beam rails and thoughtful hose routing through the upright mast ensure operators maintain a clear view of their load. Additionally, electronic speed-sensitive power steering, auto-centering drive wheels, and electro-mechanical braking ensure reliable control and reduced maintenance requirements.
Specifications
| Lift Capacity | 3000.0 lbs |
| Max Lift Height | 198 - 366 in |
| Free Lift Height | 54 - 126 in |
| Lowered Overall Height | 89 - 161 in |
| Mast Type | Triple Stage |
| Operating Weight | 8367.0 lbs |
| Baseleg Outer Width | 42.0 - 62.25 (Configurable Outriggers) in |
| Overall Length (to Fork Face) | 81.8 in |
| Overhead Guard Height | 95.0 in |
| Turning Radius | 76.14 in |
| Minimum Aisle Width | 116.0 in |
| Travel Speed (Unloaded) | 7.5 mph |
| Lift Speed (Loaded) | 105 fpm |
| Steering Type | Electronic Power Steering |
| Tire Type | Solid (Urethane/Rubber) |
| Power Mode | Battery (Lead-Acid) |
| Voltage | 36 V |
