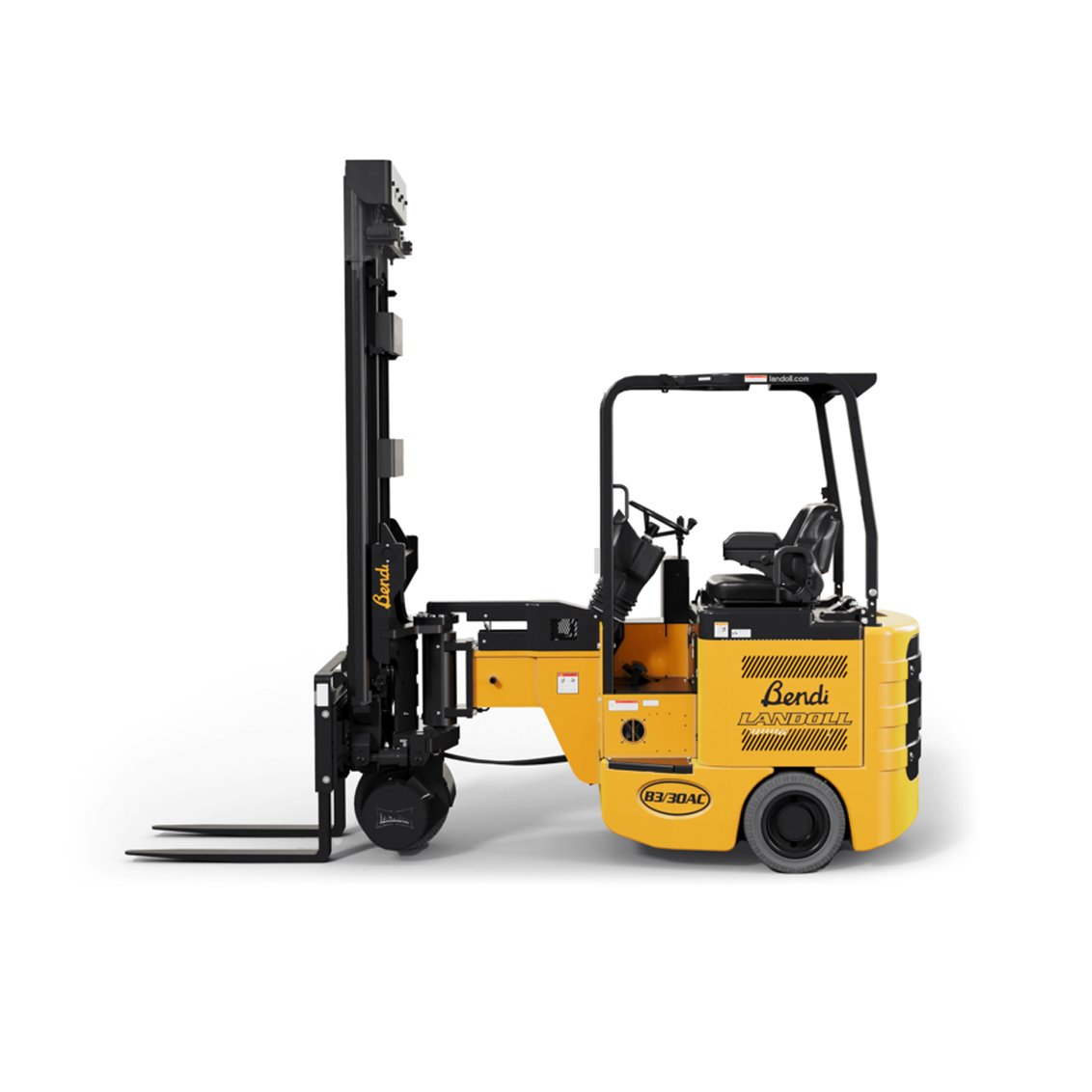

Bendi B3/30AC Very Narrow Aisle Articulated Forklift

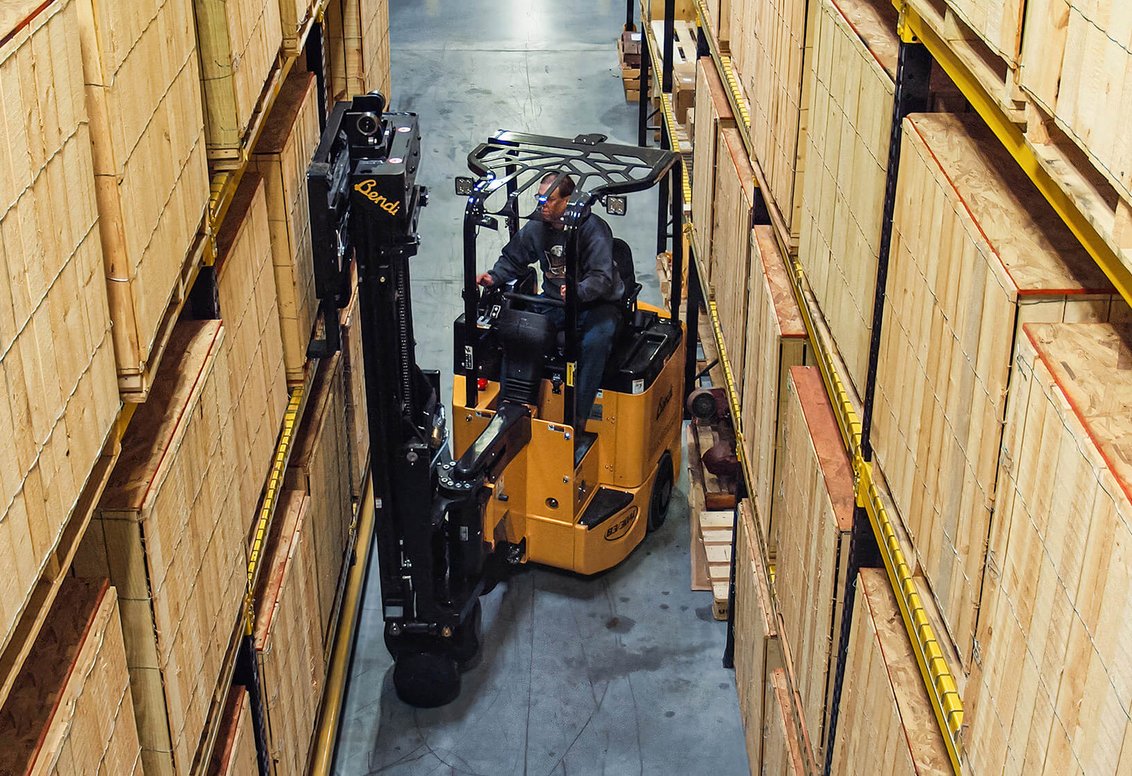

The Bendi B3/30AC is an electric multi-purpose articulated VNA (Very Narrow Aisle) forklift designed to maximize warehouse storage space. It features a 3,000-pound lift capacity at a 24-inch load centre and operates in aisles as narrow as 66 inches, allowing facilities to increase storage by up to 50% over standard counterbalanced trucks. This three-wheel unit utilizes a single front-wheel drive and an articulating 220-degree front-end rotation for exceptional maneuverability indoors and out on paved surfaces.
Designed for long-shift efficiency and operator safety, the B3/30AC includes DuraSteer™ front wheel hydraulic steering, AC traction, and fully proportional hydraulic controllers. The adjustable seat, high-visibility mast, and 4-post heavy-duty overhead guard ensure a comfortable and secure operating environment.
Specifications
| Lift Capacity | 3000.0 lbs |
| Max Lift Height | 156 - 360 in |
| Free Lift Height | 56 - 138 in |
| Lowered Overall Height | 92 in |
| Mast Type | High Visibility |
| Operating Weight | 12800.0 lbs |
| Baseleg Outer Width | 44.8 in |
| Overall Length (to Fork Face) | 112.9 in |
| Overhead Guard Height | 89.0 in |
| Minimum Aisle Width | 66.0 in |
| Travel Speed (Unloaded) | 6.0 mph |
| Lift Speed (Loaded) | 90 fpm |
| Steering Type | DuraSteer Hydraulic |
| Tire Type | Poly Front / Rubber Rear |
| Power Mode | Electric |
| Voltage | 48.0 V |
