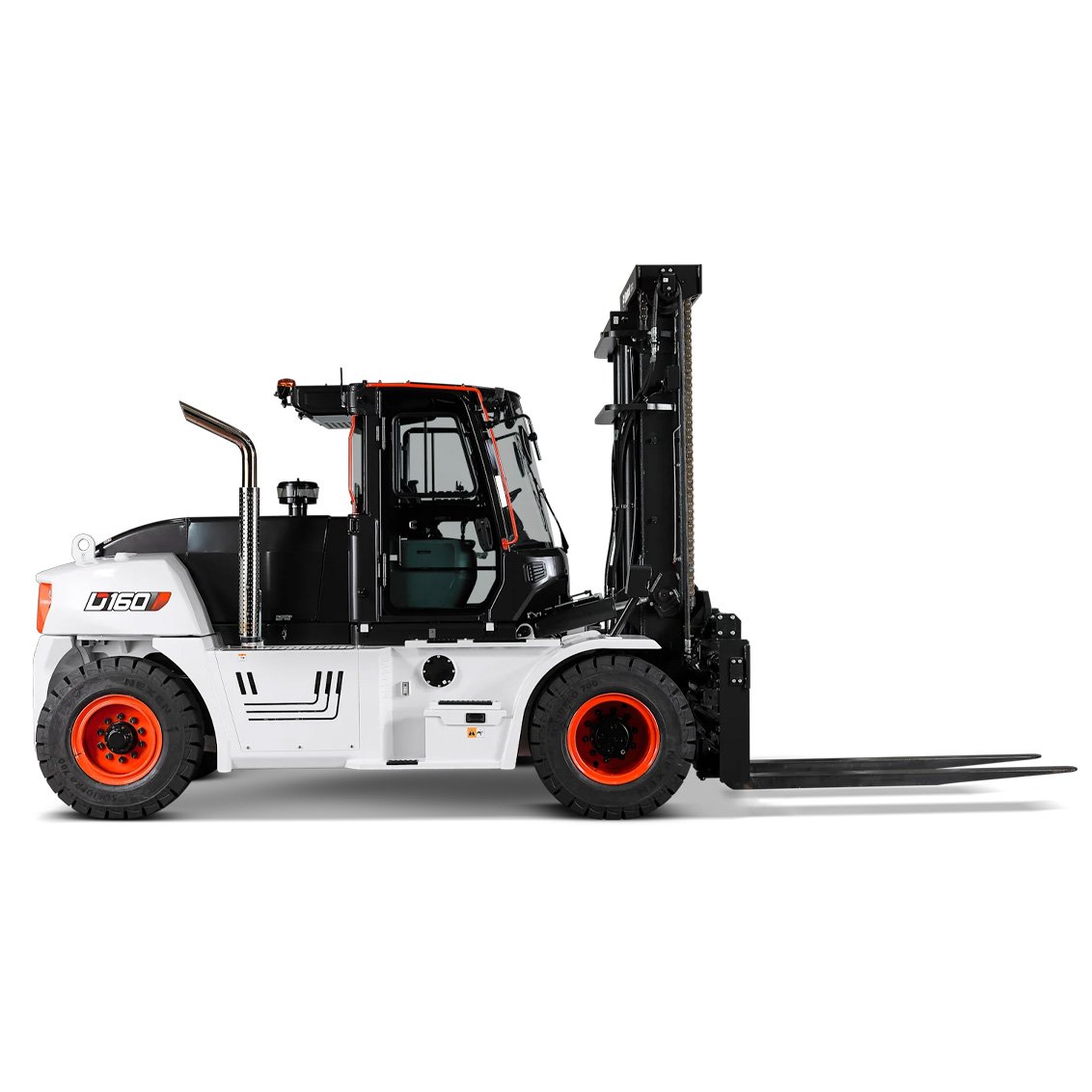

Bobcat Bobcat D160S-9 IC Pneumatic Forklift
The Bobcat D160S-9 is a heavy-duty IC pneumatic forklift for extreme outdoor loads in steel, ports, and fabrication yards. It is rated 36,000 lb at a 24 in load centre, powered by the HDI DL06-LEF turbo-diesel for strong travel and drawbar pull. Operators get oil-cooled disc brakes, the Guardian Stability System, and smooth hydraulic control for precise handling. Typical travel speed is about 18.6 mph loaded and 21.1 mph unloaded. Mast packages are available for low to tall stacking so you can match lift height to your site requirements.
Specifications
| Maximum Lift Height | 335.0 in |
| Lowered Overall Height | 124.8 in |
| Lift Height | 118.0 in |
| Transmission | Hydrostatic |
| Overall Width | 98.0 in |
| Outside Turning Radius | 178.9 in |
| Height to Top Overhead Guard | 112.6 in |
| Overall Length | 243.3 in |
| Wheelbase | 128.0 in |
| Ground Clearance | 9.3 in |
| Travel Speed Loaded | 18.6 mph |
| Lift Capacity | 36000.0 lbs |
| Load Center | 24.0 in |
| Power Mode | Diesel |
| Engine | Diesel |
| Engine Model | DL06LEF |
| Engine Manufacturer | HDI |
| Horsepower | 172.6 hp |
