New Equipment

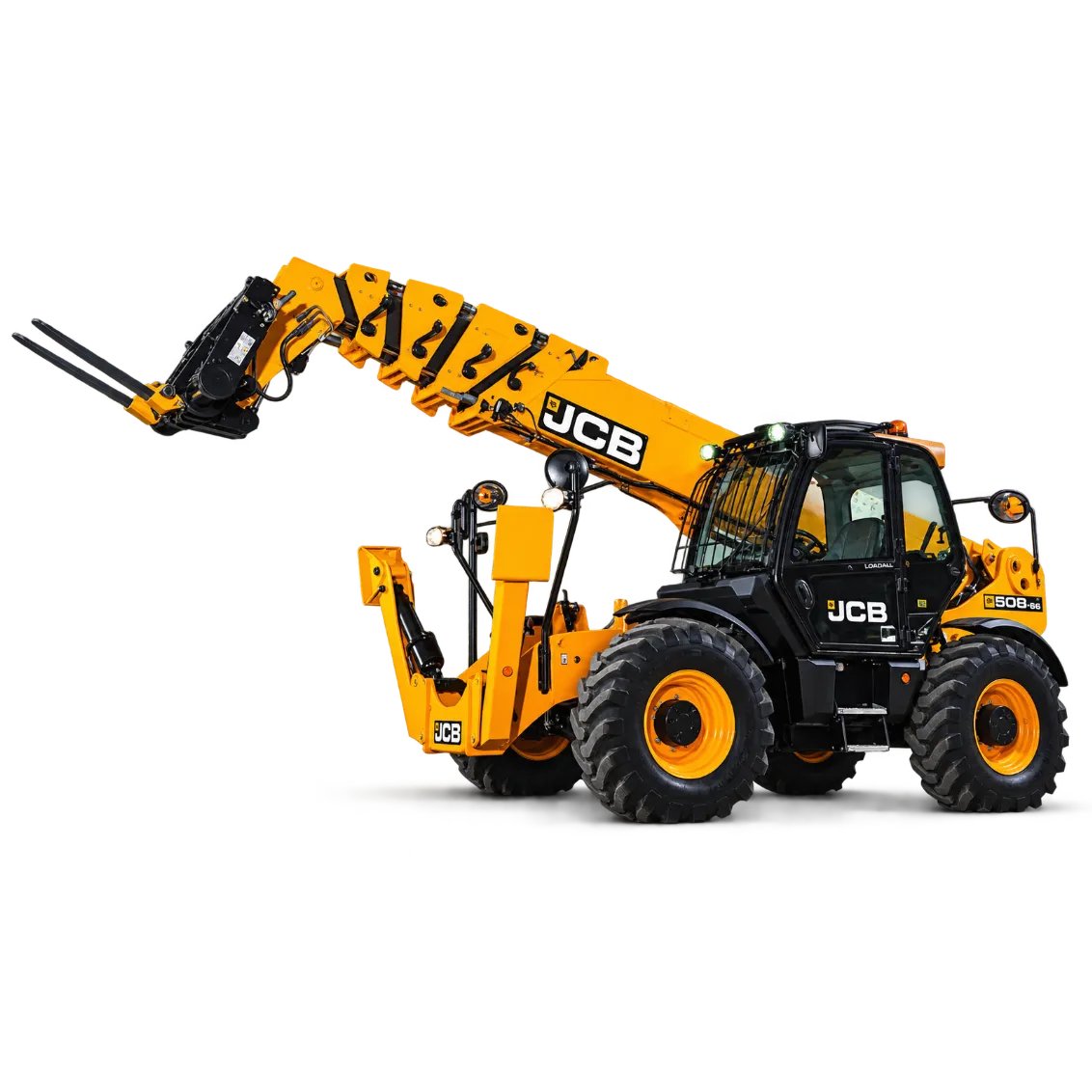

JCB 508-66TC Telehandler
Specifications

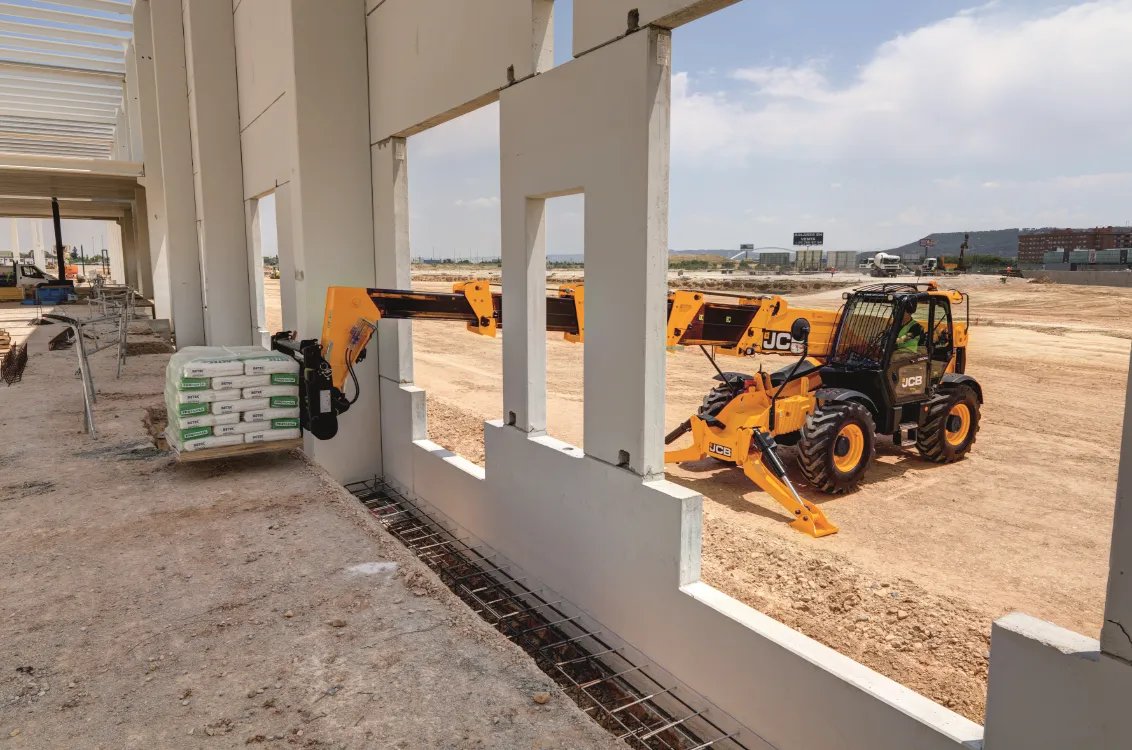

| Maximum Reach | 625.0 in |

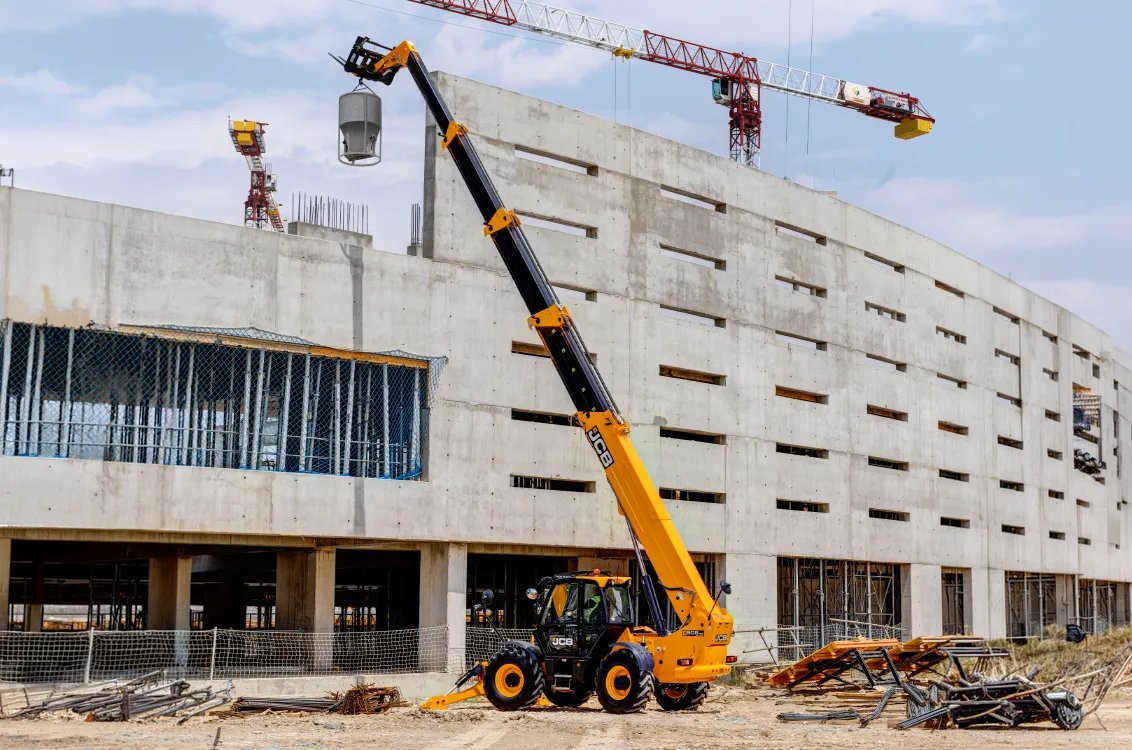

| Maximum Lift Height | 787.0 in |
| Fuel Tank Capacity | 38.5 gal |
| Steering | Hydraulic Power Steering |
| Number of Speeds | 4.0 |
| Travel Speed | 18.0 mph |
| Operating Weight | 28627.0 lbs |
| Overall Height | 107.0 in |
| Overall Width | 96.0 in |
| Wheelbase | 108.0 in |
| Ground Clearance | 16.0 in |
| Engine Bore | 4.0 in |
| Engine Stroke | 5.0 in |
| Number of Cylinders | 4.0 |
| Rated RPM | 2200.0 rpm |
| Power Mode | Diesel |
| Horsepower | 74.0 hp |
| Engine Manufacturer | JCB |
| Displacement | 268.0 cid |
| Lift Capacity | 8800.0 lbs |
| Tire Size | 17.5 - 25 in |
| Aspiration | Turbocharged |
Current Promotions
Current promotions can save you money. We offer promotions that may include Low finance rates, cash back, bonus attachments and more. Check out our current promotional offers to see what may apply to your next equipment purchase.
Specifications and images may vary in accuracy.
Data Powered By EquipmentWatch
